Запчасти Case IH MAXXUM 100 (1.33.1[01]) - FOUR WHEEL DRIVE - REAR AXLE - SPLINED BUSHING AND RELATED PARTS (04) - FRONT AXLE & STEERING

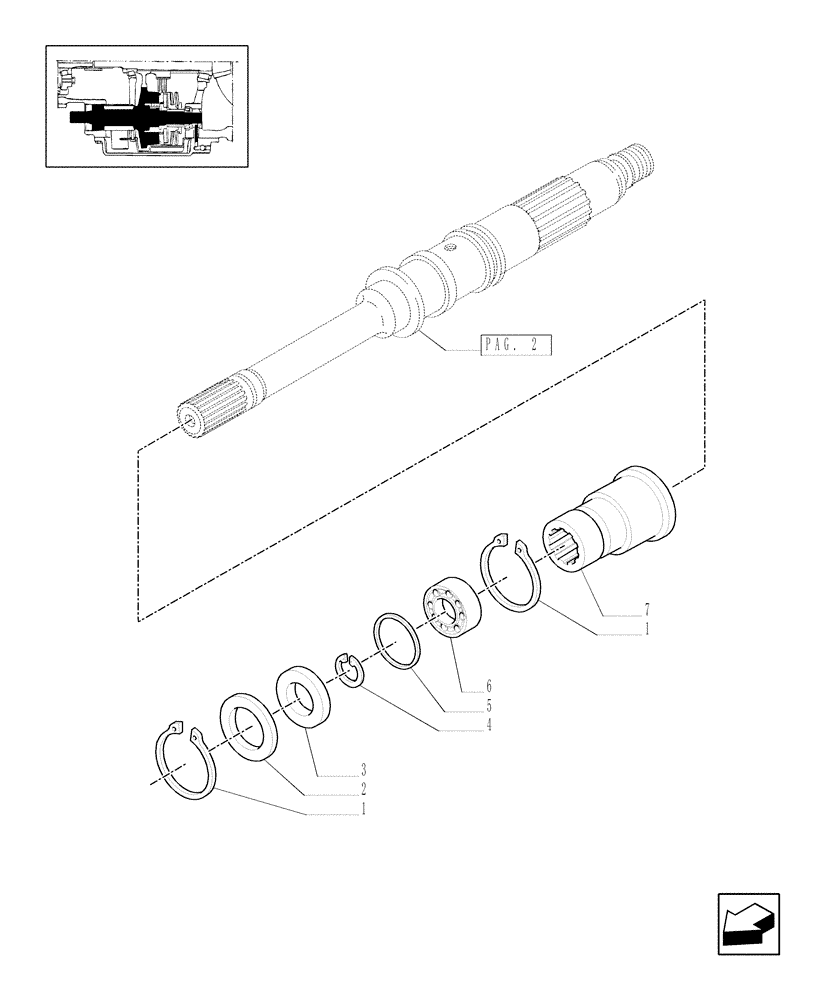

Схема запчастей Case IH MAXXUM 100 - (1.33.1[01]) - FOUR WHEEL DRIVE - REAR AXLE - SPLINED BUSHING AND RELATED PARTS (04) - FRONT AXLE & STEERING
4
5
1
6
3
7
2
pag. 2
1

Артикул

Название

Примечание

Количество

1

11061976

SNAP RING,M80, Int

2шт.

2

5194367

SEALING RING

SEALRING

1шт.

3

5124606

SEAL,50mm ID x 65mm OD x 8mm Thk

50x65x8

1шт.

4

11069376

SNAP RING,M50, Ext

1шт.

5

14465380

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

1шт.

6

86516079

BALL BEARING,50mm ID x 80mm OD x 16mm W

50x80x16

1шт.

7

5196514

SLEEVE,14T

1шт.

Выбрано товаров: 7
