Запчасти Case IH MAXXUM 100 (1.32.6/08) - (CL.3) FRONT AXLE WITH DOG CLUTCH LESS STEERING SENSOR - PIPES (03) - TRANSMISSION

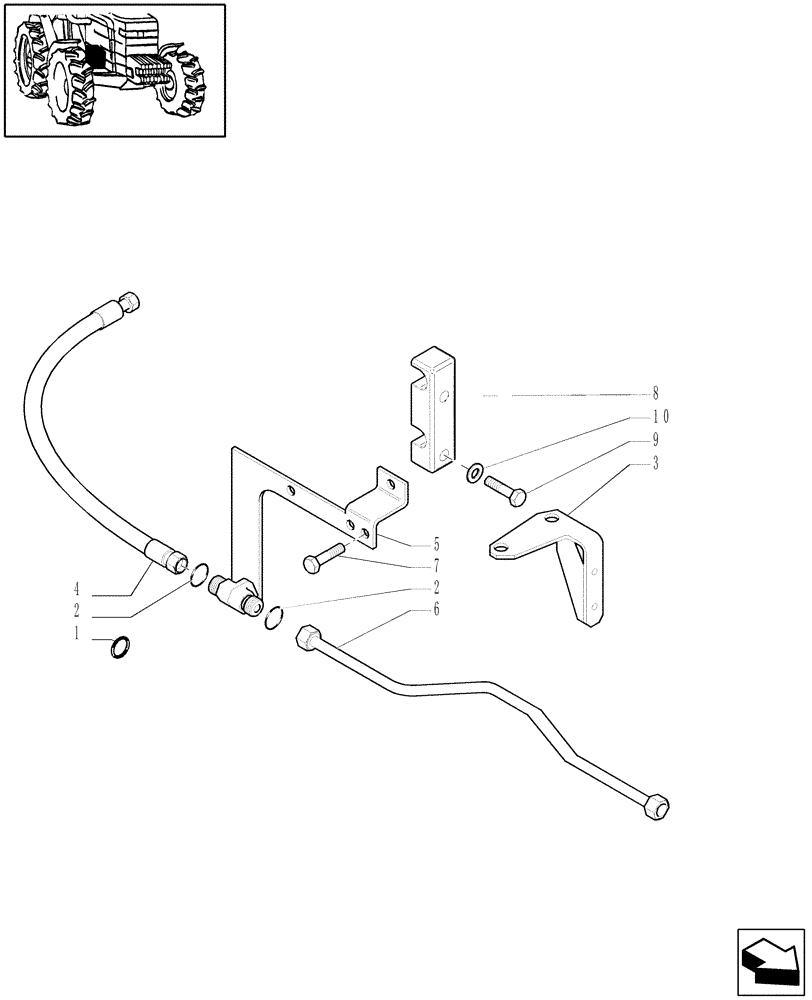

Схема запчастей Case IH MAXXUM 100 - (1.32.6/08) - (CL.3) FRONT AXLE WITH DOG CLUTCH LESS STEERING SENSOR - PIPES (03) - TRANSMISSION
7
8
6
10
2
2
4
5
1
3
9

Артикул

Название

Примечание

Количество

1

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

1шт.

2

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

3

82037221

BRACKET

1шт.

4

87352542

HOSE,550.00mm

Diff. Lock

1шт.

5

87317792

SUPPORT

1шт.

6

87540060

HYD TUBE,8 mm ID x 10 mm OD x 604, 46 mm L

Front Diff. Lock

1шт.

MAX115, MAX125, MAX140

1шт.

6

87540061

TUBE,8 mm ID x 10 mm OD x 364, 89 mm L

Front Diff. Lock

1шт.

MAX100, MAX110

1шт.

7

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

3шт.

8

82029228

CLAMP,2 Hoses

1шт.

9

16050621

SCREW,Hex, M6 x 30mm, Cl 8.8, Full Thd

2шт.

10

17094714

LOCK WASHER,M6 x 13

2шт.

Выбрано товаров: 13
