Запчасти Case IH MAXXUM 100 (1.29.6/06[02]) - 63 L/MIN FIXED DISPLACEMENT PUMP FOR MDC AND 16X16 - GEARBOX CONTROL PIPES (03) - TRANSMISSION

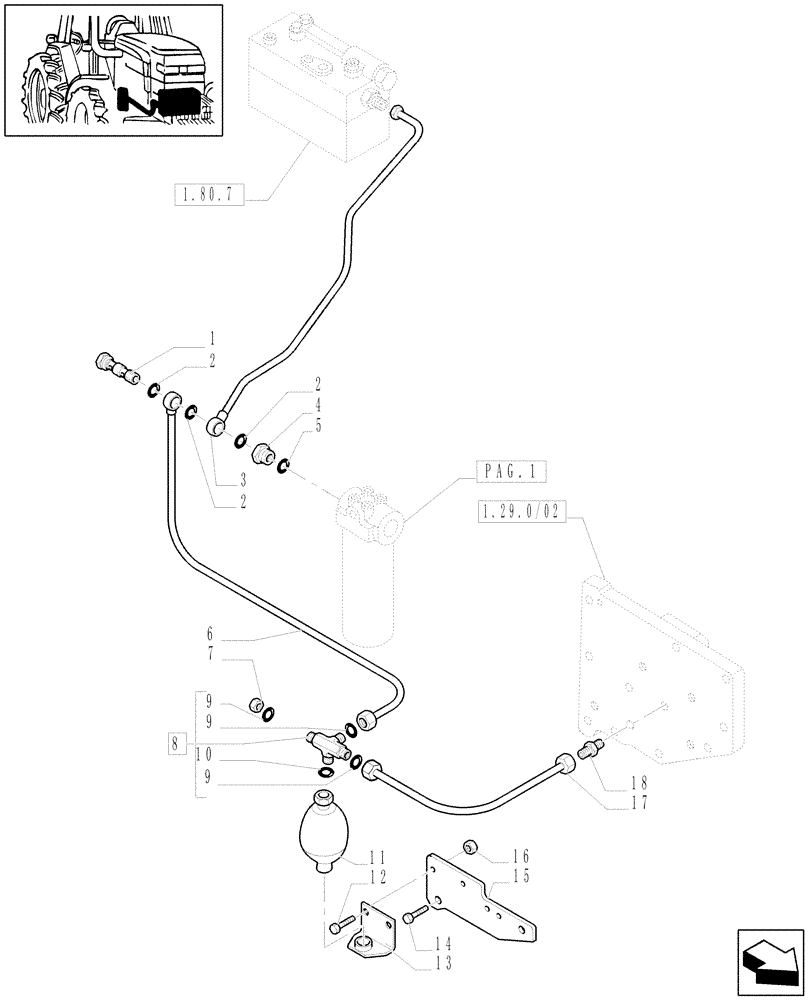

Схема запчастей Case IH MAXXUM 100 - (1.29.6/06[02]) - 63 L/MIN FIXED DISPLACEMENT PUMP FOR MDC AND 16X16 - GEARBOX CONTROL PIPES (03) - TRANSMISSION
17
12
16
pag.1
7
14
3
9
2
2
11
18
8
9
1.29.0/02
6
1
9
10
2
4
5
15
1.80.7
13

Артикул

Название

Примечание

Количество

1

5173680

BANJO BOLT,Pipe, M18 x 1.5 x 56mm

M18x1.5x56

1шт.

2

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

3шт.

3

87326937

PRESSURE PIPE

1"-14, Serial Range: -C6937

1шт.

3

84331089

PIPE

, Start Serial: D6937

1шт.

4

47125546

HYD CONNECTOR

1-1/6-12, M18x1.5

1шт.

5

5185506

O-RING,23.47mm ID x 2.95mm Width

1шт.

6

87326940

PIPE

13/16-16

1шт.

7

47123020

PLUG,Hex

13/16-16, Serial Range: -C6937

1шт.

7

9840575

CAP,13/16" - 16 ORFS

, Start Serial: D6937

1шт.

8

47130867

HYD CONNECTOR

13/16-16, M18x1.5, Includes Ref. 9, 10

1шт.

9

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

M12.42 ID x 1.78 Thk

3шт.

10

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

11

5195043

ACCUMULATOR,0.75L

1шт.

12

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

13

82009123

SUPPORT

1шт.

14

15970324

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

15

82033143

BRACKET

1шт.

16

16100821

NUT,M8, Cl 10

2шт.

17

82850840

HYD TUBE,9 mm ID, 12 mm OD, 54.6, 45 mm Length

1шт.

18

81863437

HYD CONNECTOR,M18 x 13/16"-16 ORS

1шт.

Выбрано товаров: 20
