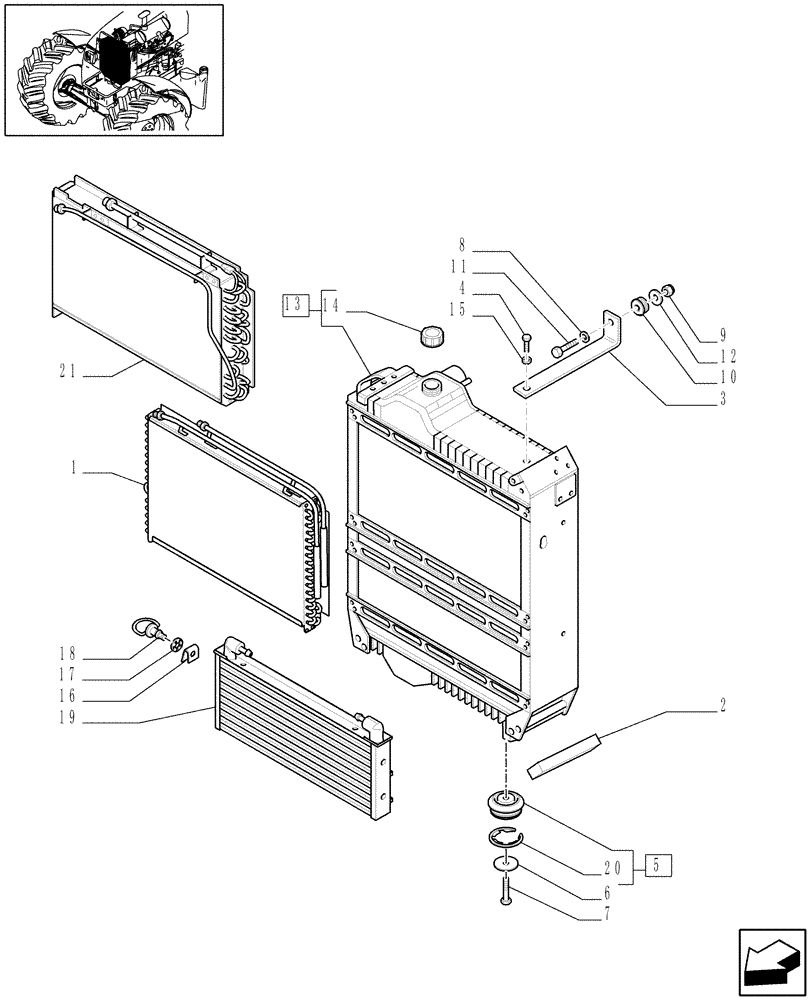

Запчасти Case IH MAXXUM 100 (1.17.0) - RADIATOR, COOLING SYSTEM & RELATED PARTS (02) - ENGINE EQUIPMENT

1

82035720

CONDENSER

, Serial Range: -C6540

1шт.

with Air Conditioning only, VAR. 330641

1шт.

2

82030145

FOAM INSULATION

2шт.

3

82027541

BRACKET

1шт.

4

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

5

82023389

ISOLATOR,67mm OD x 35.5mm L

2шт.

6

5102702

WASHER,10.5mm ID x 45mm OD x 3mm Thk

2шт.

7

9602206

SCREW,Hex, M10 x 1.25 x 50mm, Cl 8.8

2шт.

8

85700654

WASHER,10.5mm ID x 20mm OD x 2.5mm Thk

1шт.

9

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

1шт.

10

82009429

ISOLATOR

1шт.

11

16040821

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

1шт.

12

83904166

WASHER,10.5mm ID x 30mm OD x 4mm Thk

1шт.

13

87306757

RADIATOR

5 Row

1шт.

14

87306788

RADIATOR CAP

1шт.

15

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

16

82004582

CLIP,Square, 25mm

1шт.

17

82004583

RETAINER,6.3mm ID x 12.5mm OD x 0.5mm Thk

1шт.

18

82005454

FASTENER

1шт.

19

82033781

OIL COOLER

1шт.

9 Plate x 49MM, For 12x12 and 24x24 Transmission

1шт.

19

87575994

OIL COOLER

, Serial Range: -C5793

1шт.

9 Plate x 77MM, For 16x16 Transmission

1шт.

19

87732699

OIL COOLER

, Start Serial: D5793

1шт.

9 Plate x 77MM, For 16x16 Transmission

1шт.

20

82033528

SNAP RING,55mm ID

1шт.

21

84156148

CONDENSER

, Start Serial: D6540

1шт.

with Air Conditioning only, VAR. 330641

1шт.
