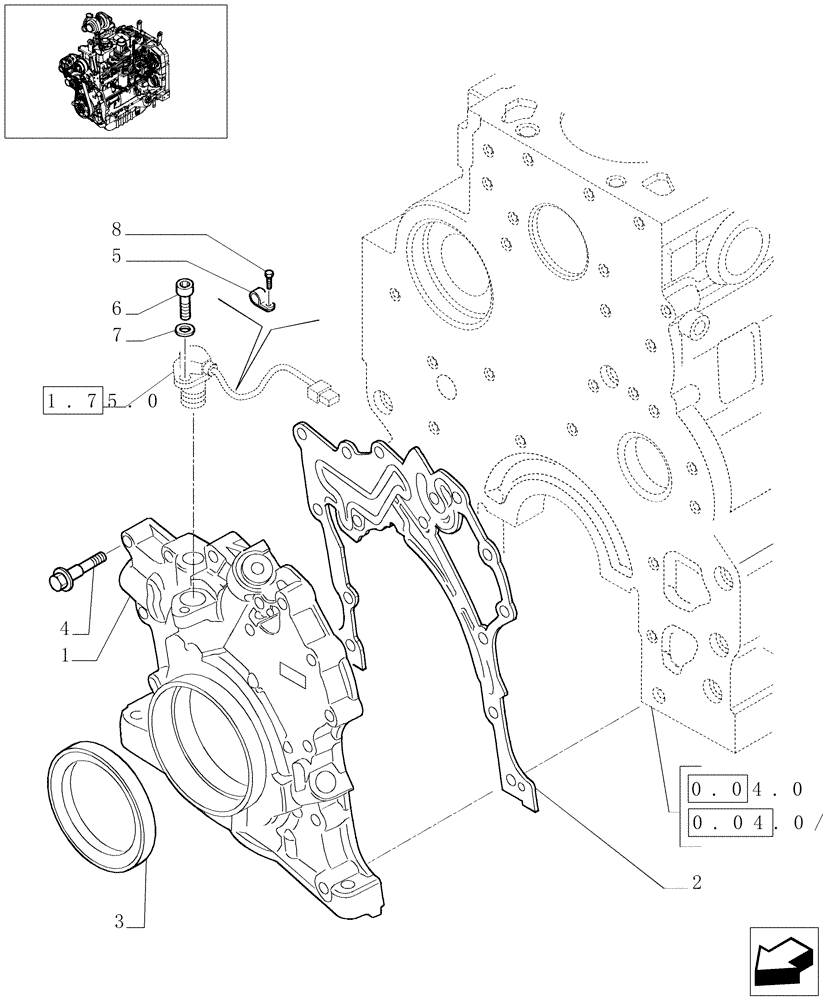

Запчасти Case IH MAXXUM 100 (0.30.0) - OIL PUMP ENGINE (STD + VAR.330003-332115-332116) (01) - ENGINE

1

2830913

ENGINE OIL PUMP

1шт.

2830913R

REMAN-ENG OIL PUMP

MAXXUM 100, MAXXUM 120, MAXXUM 130 all (1/07-)

1шт.

2830913C

CORE-ENGINE OIL PUMP

Return Number

1шт.

2

2830972

GASKET,2.3mm Thk

1шт.

3

4890832

OIL SEAL,M70 x 100 x 12.5/16

1шт.

4

4899019

SCREW,Hex Flg, M8 x 1.25 x 35

11шт.

4

4899089

SCREW,Hex Flg, M8 x 1.25 x 50

2шт.

4

4899031

BOLT,Flng, M8 x 1.25 x 25mm

2шт.

5

17316190

COLLAR

1шт.

6

4899082

HEX SOC SCREW,M6 x 20mm

1шт.

7

17094601

WASHER

1шт.

8

4899103

SCREW,Hex Flg, M8 x 1.25 x 12

1шт.
