Запчасти Case IH MAXXUM 100 (1.97.0/01) - COMMAND ARM FOR EDC LESS RADAR AND LESS HEADLAND TURN SYSTEM (VAR.330026) (10) - OPERATORS PLATFORM/CAB

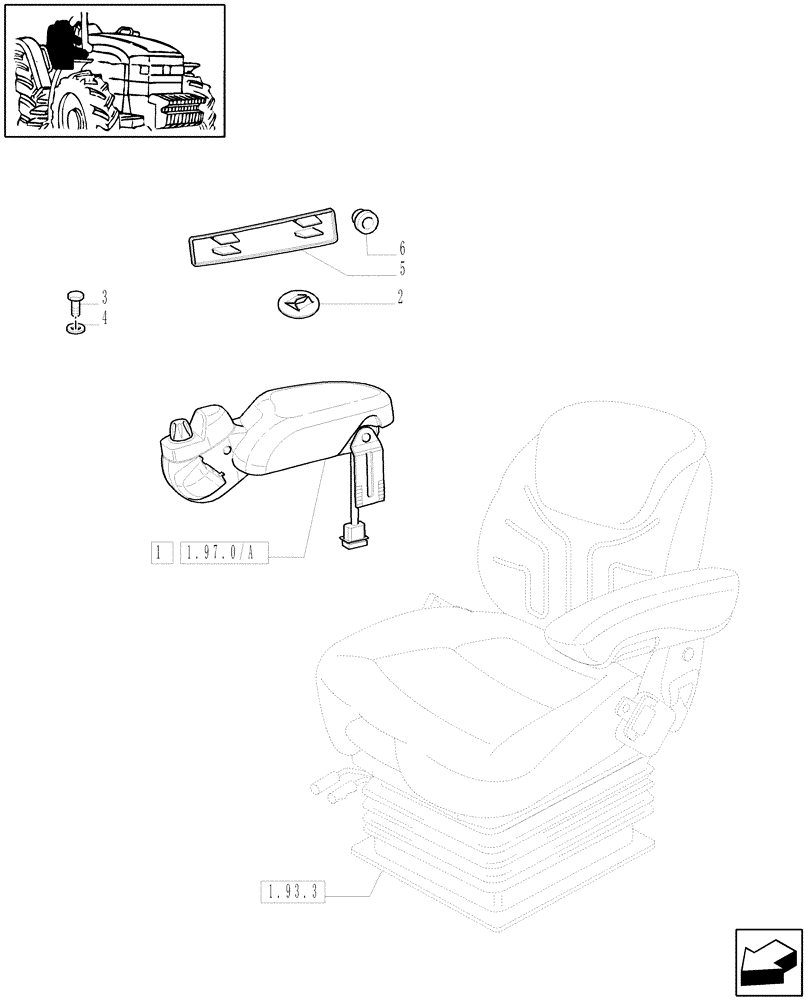

Схема запчастей Case IH MAXXUM 100 - (1.97.0/01) - COMMAND ARM FOR EDC LESS RADAR AND LESS HEADLAND TURN SYSTEM (VAR.330026) (10) - OPERATORS PLATFORM/CAB
2
5
1
6
1.93.3
3
1.97.0/a
4

Артикул

Название

Примечание

Количество

1

87398439

ARMREST ASSY.

1шт.

2

47057509

FASTENER

2шт.

3

16043024

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

4

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

5

87385341

BLANK-OFF PLUG,3.5mm Thk, Black

1шт.

6

81862738

PLUG,M38 x 28 x 5mm

28MM

3шт.

Выбрано товаров: 6
