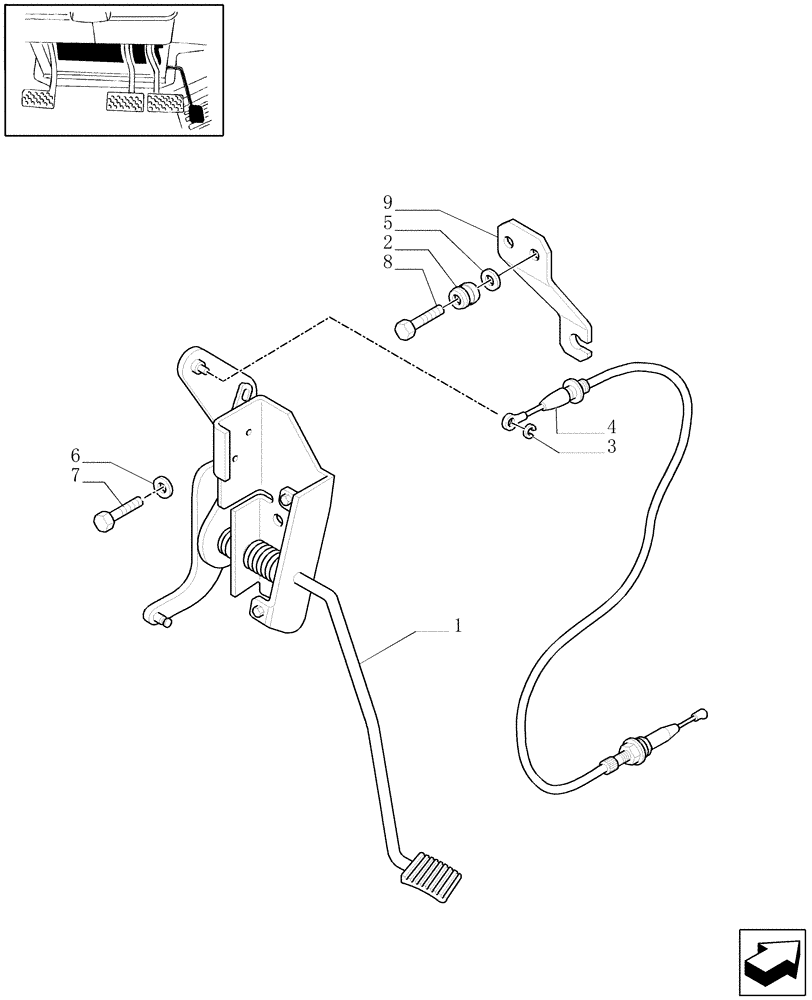

Запчасти Case IH MAXXUM 100 (1.95.3[01B]) - ACCELERATOR PEDAL - D6453 (10) - OPERATORS PLATFORM/CAB

1

87497287

THROTTLE CONTROL

, Serial Range: -C7187

1шт.

1

47369879

THROTTLE CONTROL

, Start Serial: D7187

1шт.

2

87733629

GROMMET

1шт.

3

11063876

SPRING CLIP,M5 x 4mm

2шт.

3

11087976

CIRCLIP,Ext., M8, BLO

2шт.

4

84281866

CABLE,1126mm L

Accelerator

1шт.

5

14496404

WASHER,M6 x 12 x 2 Thk

2шт.

6

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

3шт.

7

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

8

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

2шт.

9

84348148

BRACKET

1шт.
