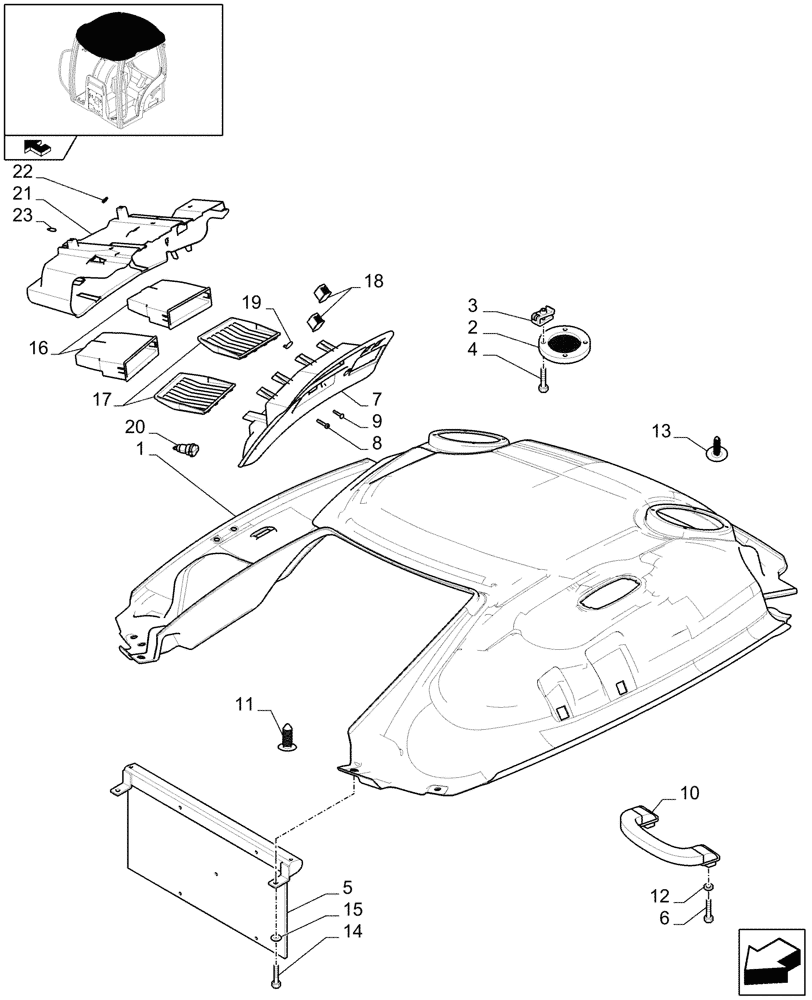

Запчасти Case IH MAXXUM 100 (1.94.0/07[01B]) - ROOF WITH HIGH PROFILE WITH HIGH VISIBILITY PANEL - HEADLINER - D9018 (10) - OPERATORS PLATFORM/CAB

1

47365504

HEADLINER

1шт.

2

82022875

GRILLE,185mm OD

Speaker

2шт.

3

81872135

NUT,Retaining, M4.20

8шт.

4

15642707

SCREW,Pozidriv Pan Hd, M3.5 x 16mm

8шт.

5

82028310

SUN CURTAIN

1шт.

6

84187829

SCREW,Torx Pan Hd, M5 x 25mm, Cl 4.8

2шт.

7

47388509

BEZEL

, Serial Range: -C7408

1шт.

7

47363735

BEZEL

, Serial Range: -C7408

1шт.

Only with Telescopic/Heated/Remote adjust Mirrors with High Visibility Panel, VAR.330827, Multicontroller/Pro Versions only

1шт.

7

47575526

CONSOLE

, Serial Range: D7408-C7410

1шт.

7

47406288

CONSOLE

, Serial Range: D7408-C7410

1шт.

Only with Telescopic/Heated/Remote adjust Mirrors with High Visibility Panel, VAR.330827, Multicontroller/Pro Versions only

1шт.

7

47778962

CONSOLE

, Start Serial: D7410

1шт.

7

47778953

CONSOLE

, Start Serial: D7410

1шт.

Only with Telescopic/Heated/Remote adjust Mirrors with High Visibility Panel, VAR.330827, Multicontroller/Pro Versions only

1шт.

8

15903904

SCREW,Pan Hd, M4.8 x 1.6 x 19mm

7шт.

9

82033699

PLASTIC PLUG,6.8mm D x 35mm L, Grey

4шт.

10

84227380

HANDLE

1шт.

11

82023482

ANCHOR,Button Hd, 8.25mm x 35.00mm

1шт.

12

14496307

WASHER,5.3mm ID x 10mm OD x 1mm Thk

2шт.

13

81870039

FASTENER,M8 x 1.5 x 22mm

1шт.

14

86511827

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

15

12605274

WASHER

2шт.

16

47364183

BOX

2шт.

17

47470835

INSERT

2шт.

18

82022763

PLUG

2шт.

19

47363750

PLUG,23.1mm OD

1шт.

20

84320279

CIGARETTE LIGHTER

1шт.

21

47378856

CAB STORAGE BOX

Incl 8 (Qty 3), 22, 23, Serial Range: -C7408

1шт.

Standard Equipment, Multicontroller/Pro Versions only

1шт.

Base Colour High Roof with Visibility Panel, VAR.330515-330520, X-Line/Limited Versions only

1шт.

21

47718243

BEZEL

Incl 8 (Qty 3), 22, 23, Start Serial: D7408

1шт.

Standard Equipment, Multicontroller/Pro Versions only

1шт.

Base Colour High Roof with Visibility Panel, VAR.330515-330520, X-Line/Limited Versions only

1шт.

22

14369071

SPRING NUT,4.8mm x 14.6mm x 4mm

7шт.

Standard Equipment, Multicontroller/Pro Versions only

1шт.

Base Colour High Roof with Visibility Panel, VAR.330515-330520, X-Line/Limited Versions only

1шт.

23

47378854

SPACER,5mm ID x 8mm OD x 7.5mm L

3шт.

Standard Equipment, Multicontroller/Pro Versions only

1шт.

Base Colour High Roof with Visibility Panel, VAR.330515-330520, X-Line/Limited Versions only

1шт.
