Запчасти Case IH 5250 (4-066) - CAB, REAR WINDOW WIPER (04) - ELECTRICAL SYSTEMS

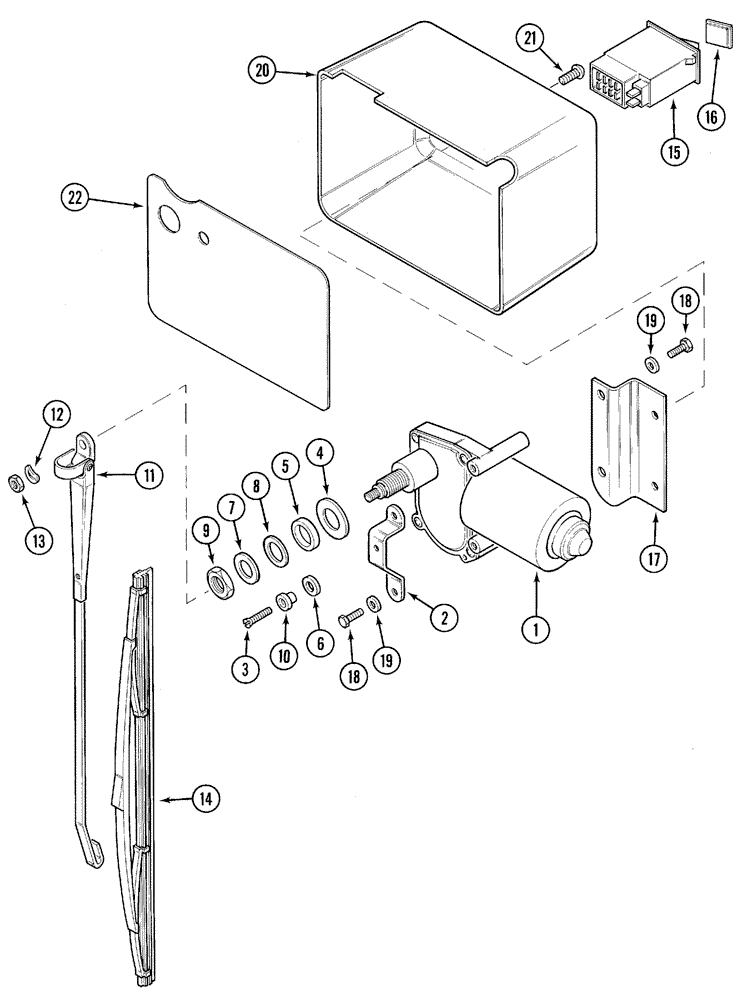

Схема запчастей Case IH 5250 - (4-066) - CAB, REAR WINDOW WIPER (04) - ELECTRICAL SYSTEMS
1
11
9
12
5
19
4
7
6
16
10
18
2
14
19
18
20
8
13
17
3
22
21
15

Артикул

Название

Примечание

Количество

1

A186172

WIPER MOTOR

MOTOR - rear wiper

1шт.

2

1958584C1

BRACKET

- rear wiper motor

1шт.

3

765-14419

SELF-TAP SCREW,Oval HD, M4.8 x 1.6 x 19mm

SCREW - flat head, 4 x 20 mm

1шт.

4

A165073

WASHER

- nylon, 5/8 x 1-1/2 x 7/64 inch

1шт.

5

A165074

SPACER

- nylon, 41/64 x 7/8 x 1/4 inch

1шт.

6

A165076

WASHER,7.87mm ID x 25.4mm OD x 3.05mm Thk

- nylon, 5/16 x 1 x 7/64 inch

1шт.

7

495-81182

WASHER,21/32" x 1 1/4" x .060"

- flat, 21/32 x 1-1/4 x 3/64 inch

1шт.

8

A187577

WASHER

- rubber, 16.5 x 32 x 2 mm

1шт.

9

3223055R1

NUT

- hex, 16 mm

1шт.

10

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

- motor mounting

1шт.

11

A187824

ARM

- rear wiper

1шт.

12

L112089

WASHER

- wave, special

1шт.

13

L112090

NUT

- hex, special, 8 mm

1шт.

14

A187603

WIPER BLADE

BLADE - wiper, 16 inch, (406 mm)

1шт.

15

1964539C1

WINDSHIELD WIPER SWI

SWITCH - rear windscreen wiper

1шт.

16

1983612C1

SYMBOLS

DECAL - symbol, windshield wiper and washer

1шт.

17

1331147C1

BRACKET

- rear wiper motor

1шт.

18

514-503

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

- hex, 6 x 12 mm, Class 8.8

4шт.

19

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

20

1331103C2

HOUSING

- rear window wiper mounting

1шт.

21

905988R1

SELF-TAP SCREW,Phillips Drive, Pan HD, M6.3 x 1.8 x 25mm

SCREW - pan head, cross recess, 1/4-14 x 1/2 inch

2шт.

22

1344021C1

DECAL

- rear wiper

1шт.

Выбрано товаров: 22
