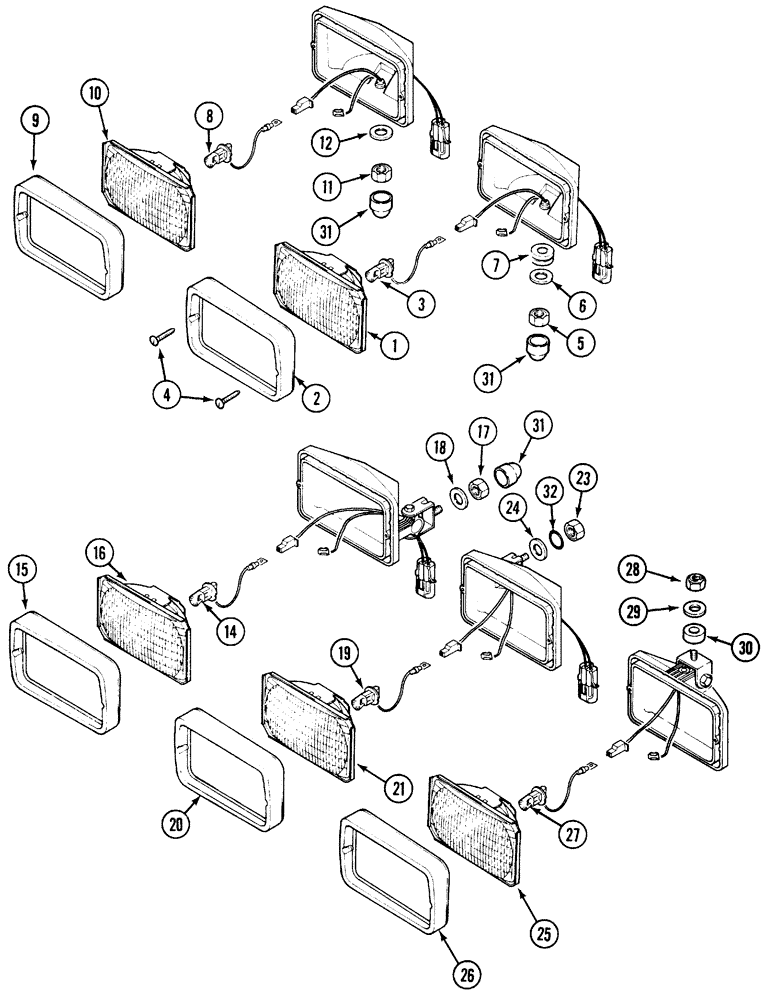

Запчасти Case IH 5250 (4-058) - LIGHTS, FLOOD (04) - ELECTRICAL SYSTEMS

92269C1

WORK LAMP,Halogen, 12V, 55W, Clear

LAMP ASSEMBLY - flood, cab roof rear and fender, ABL, Includes Ref: 1-4

1шт.

1

276498A1

LENS

- reflector

1шт.

2

1964806C1

BEZEL

- flood lamp

1шт.

3

1312210C2

BULB,Halogen H3, 12V, 55W

LAMP - halogen bulb, 12V/55W

1шт.

4

260-54312

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

SCREW, SELF TAPPING, Cross Pan Hd, #6 x 3/4"

1шт.

5

934819R1

LOCK NUT,M10 x 1.5, Thin

NUT, LOCK, M10 x 1.5, Thin

2шт.

6

495-81140

WASHER,13/32" x 1 1/4" x .060"

- flat, 13/32 x 1-1/4 x 1/16 inch

4шт.

7

96901C1

GROMMET

- wiring, lamp

4шт.

1983300C1

LAMP, WORK

LIGHT - flood, right rear (Tractors with cut back fenders), ABL, Includes Ref: 8-10

1шт.

8

1312210C2

BULB,Halogen H3, 12V, 55W

LAMP - halogen bulb, 12V/55W

1шт.

9

1964806C1

BEZEL

- flood lamp

1шт.

10

276498A1

LENS

- reflector

1шт.

11

934819R1

LOCK NUT,M10 x 1.5, Thin

NUT, LOCK, M10 x 1.5, Thin

1шт.

12

495-81140

WASHER,13/32" x 1 1/4" x .060"

- flat, 13/32 x 1-1/4 x 1/16 inch

2шт.

1983301C1

LAMP, WORK

LIGHT - flood, left rear (Tractors with cut back fenders), ABL, Includes Ref: 14-16

1шт.

14

1312210C2

BULB,Halogen H3, 12V, 55W

LAMP - halogen bulb, 12V/55W

1шт.

15

1964806C1

BEZEL

- flood lamp

1шт.

16

276498A1

LENS

- reflector

1шт.

17

934819R1

LOCK NUT,M10 x 1.5, Thin

NUT, LOCK, M10 x 1.5, Thin

1шт.

18

495-81140

WASHER,13/32" x 1 1/4" x .060"

- flat, 13/32 x 1-1/4 x 1/16 inch

2шт.

1983403C1

LIGHT ASSY.

LIGHT - flood, two plane, cab roof, front, 80 x 30, 55W, Includes Ref: 19-21

1шт.

19

1312210C2

BULB,Halogen H3, 12V, 55W

LAMP - halogen bulb, 12V/55W

1шт.

20

1964806C1

BEZEL

- flood lamp

1шт.

21

1964807C1

LAMP BASE

LENS - reflector

1шт.

23

934819R1

LOCK NUT,M10 x 1.5, Thin

NUT, LOCK, M10 x 1.5, Thin

2шт.

24

495-81140

WASHER,13/32" x 1 1/4" x .060"

- flat, 13/32 x 1-1/4 x 1/16 inch

2шт.

R54412

LAMP, WORK

LIGHT - assembly, flood (Tractors with ROPS canopy), ABL, Includes Ref: 25-27

4шт.

25

1964807C1

LAMP BASE

LENS - reflector

1шт.

26

1964806C1

BEZEL

- flood lamp

1шт.

27

1312210C2

BULB,Halogen H3, 12V, 55W

LAMP - halogen bulb, 12V/55W

1шт.

28

934819R1

LOCK NUT,M10 x 1.5, Thin

NUT, LOCK, M10 x 1.5, Thin

4шт.

29

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- plain, 11 x 20 x 2 mm

4шт.

1987490C1

LIGHT ASSY.

LIGHT - assembly, flood (Tractors with ROPS canopy), HELLA, Includes Ref: 25-27

4шт.

25

1987494C1

LAMP BASE

LENS - reflector

1шт.

26

1987493C1

BEZEL

- flood lamp

1шт.

27

1312210C2

BULB,Halogen H3, 12V, 55W

LAMP - halogen bulb, 12V/55W

1шт.

28

934819R1

LOCK NUT,M10 x 1.5, Thin

NUT, LOCK, M10 x 1.5, Thin

4шт.

29

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- plain, 11 x 20 x 2 mm

4шт.

30

K915800

MISC PACKAGING

INSULATOR - rubber

4шт.

31

3221520R1

CAP

PLUG - cap, 10 mm

1шт.

32

934674R1

WASHER,M10.5 x 30 x 2.5

- flat, 10.5 x 30 x 2.5 mm (Tractors with cab)

2шт.
