Запчасти Case IH 5250 (4-052) - ALTERNATOR, 65 AMPERE (04) - ELECTRICAL SYSTEMS

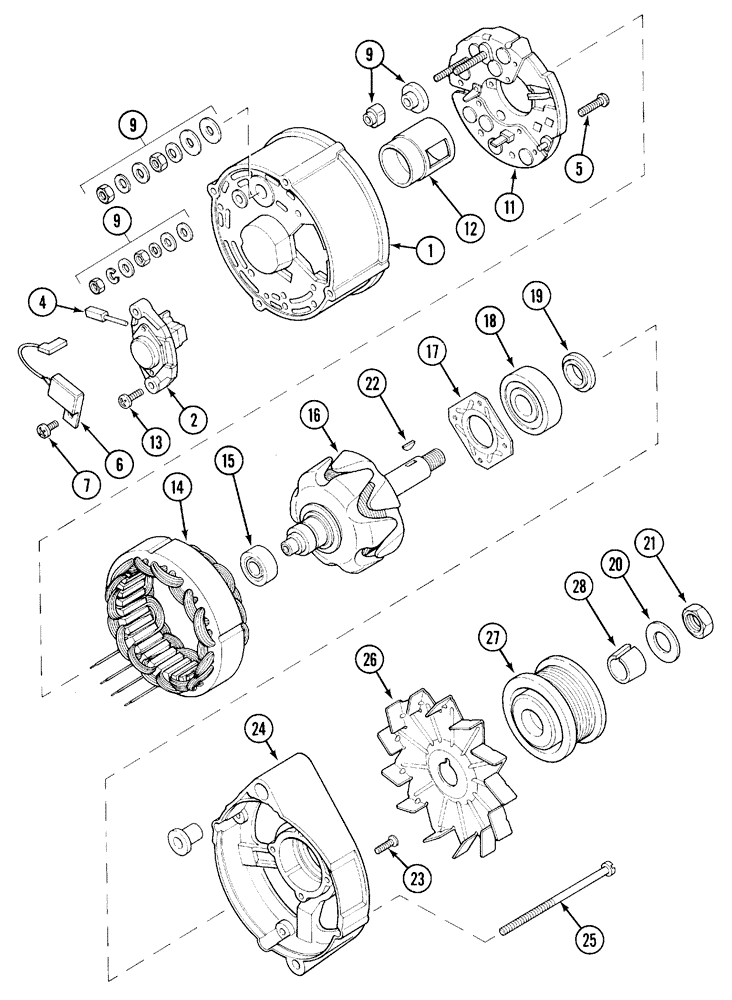

Схема запчастей Case IH 5250 - (4-052) - ALTERNATOR, 65 AMPERE (04) - ELECTRICAL SYSTEMS
22
18
27
24
13
6
12
16
7
9
23
14
26
4
2
28
9
5
19
21
9
25
17
1
20
11
15

Артикул

Название

Примечание

Количество

A187873

ALTERNATOR,12V, 65A

ALTERNATOR ASSEMBLY - Bosch, 65 ampere, Includes Ref: 1-25

1шт.

AR187873

REMAN-ALTERNATOR

Reman for New PN A187873

1шт.

AC187873

CORE-ALTERNATOR

Return Number

1шт.

A187873GV

ALTERNATOR

Value, 65 Amp

1шт.

1

A187903

COVER

HOUSING - collector ring end

1шт.

2

A187906

VOLTAGE REGULATOR

REGULATOR - voltage

1шт.

4

1964968C1

COMMUTATOR BRUSH

BRUSH - alternator

1шт.

5

1530431C1

BOLT,Hex, 1 1/4" - 7 x 7", Gr 8, W/ Wshr

BOLT - with washer

2шт.

6

3079134R1

CAPACITOR

CAPACITOR - alternator

1шт.

7

1964969C1

SCREW

SCREW - special

1шт.

9

A187904

MULTIPOLE CONNECTOR

SET - hardware, terminal

1шт.

11

A187917

RECTIFIER

RECTIFIER - alternator

1шт.

12

A187899

INNER SHIELD

SHIELD - alternator

1шт.

13

A187504

SCREW

BOLT - hex flange, special

2шт.

14

A187995

STATOR

STATOR ASSEMBLY - alternator (Later production)

1шт.

14

1964966C1

STATOR

STATOR - alternator (Early production)

1шт.

15

A186186

BALL BEARING,12mm ID x 32mm OD x 10mm W

BEARING - ball

1шт.

16

1987499C1

ROTOR

ROTOR ASSEMBLY - alternator (Later production)

1шт.

16

1964964C1

ROTOR

ROTOR - alternator (Early production)

1шт.

17

A187901

FIXING PLATE

PLATE - bearing retaining

1шт.

18

A186183

BALL BEARING,17 mm ID x 47 mm OD x 14 mm

BEARING - ball

1шт.

3078897R1

SET OF PARTS

KIT - rotor retaining, Includes Ref: 19-23

1шт.

19

NSS

NOT SOLD SEPARAT

RING - spacer

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER - lock, rotor shaft

1шт.

21

NSS

NOT SOLD SEPARAT

NUT - rotor shaft

1шт.

22

NSS

NOT SOLD SEPARAT

KEY - pulley retainer

1шт.

23

NSS

NOT SOLD SEPARAT

SCREW - bearing retaining plate

1шт.

24

A187994

HOUSING

HOUSING - drive end

1шт.

25

A186193

BOLT,Pan, Cross Recess Phillips, M5 x 110mm

BOLT - slotted, special

4шт.

26

259868A1

FAN

FAN - alternator

1шт.

27

J908560

PULLEY

PULLEY - alternator drive

1шт.

28

J908563

RETAINER

RETAINER - alternator pulley

1шт.

Выбрано товаров: 32
