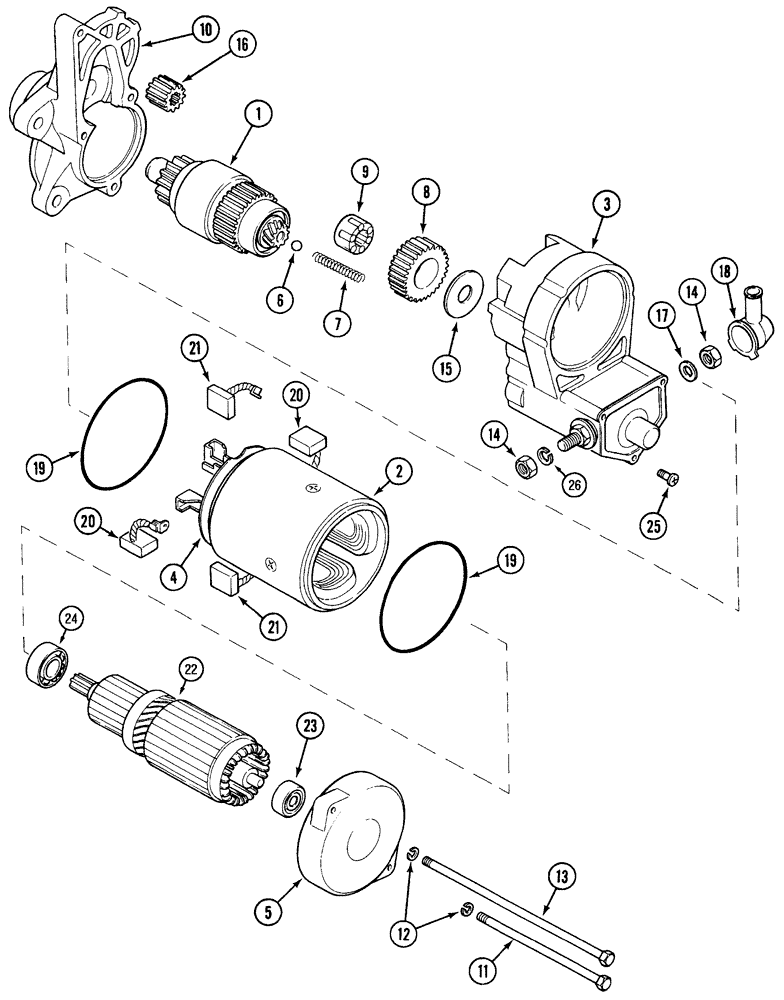

Запчасти Case IH 5250 (4-044) - STARTING MOTOR, NIPPONDENSO (04) - ELECTRICAL SYSTEMS

116928A2

STARTING MOTOR

MOTOR - starting, Includes Ref: 1-26

1шт.

116928A2R

REMAN-STARTER

Remanufactured Starter 12 volt, 3.0KW

1шт.

116928A2C

CORE-STARTER

Return Number, Starter 12 volt, 3.0KW

1шт.

1

258840A1

CLUTCH ASSEMBLY

CLUTCH - assembly, starter

1шт.

2

A187708

HOUSING

HOUSING - starter

1шт.

3

132824A1

SOLENOID SWITCH

SWITCH - assembly, magnetic

1шт.

4

A49806

BRUSH HOLDER

HOLDER ASSEMBLY - brush

1шт.

5

A49811

COVER ASSY

FRAME - commutator end

1шт.

6

211-209

BALL

BALL - chrome alloy steel, 11/32 inch, Class 24

1шт.

7

A47232

SPRING

SPRING - compression, 2-13/16 inch free length

1шт.

8

A49810

GEAR

GEAR - pinion idler

1шт.

9

A47236

RETAINER

RETAINER - roller bearing

1шт.

9

691265C1

NUT

NUT - hex, special

1шт.

10

A49805

COVER

COVER - terminal

1шт.

11

A49813

BOLT

BOLT - hex, 208 mm long

1шт.

12

A49815

LOCK WASHER

WASHER - lock

2шт.

13

A49814

BOLT

BOLT - hex, 146 mm long

1шт.

14

825-1410

NUT,M10, Cl 8

Nut, M10, Cl 8

2шт.

15

A47234

WASHER

WASHER - thrust

1шт.

16

A49809

PINION

GEAR - pinion

1шт.

17

A10454

WAVE WASHER

WASHER - spring

1шт.

18

A49803

BREATHER

COVER - frame end

1шт.

19

A49812

SEAL

SEAL - housing

2шт.

20

A49807

COMMUTATOR BRUSH

BRUSH - starter

2шт.

21

A49808

COMMUTATOR BRUSH

BRUSH - starter

2шт.

22

A49801

ROTOR

ARMATURE ASSEMBLY - starter

1шт.

23

A49800

BALL BEARING,15 mm ID x 35 mm OD x 11 mm

BEARING - armature, 15 x 35 x 11 mm

1шт.

24

452698C1

BALL BEARING,10mm ID x 30mm OD x 9mm W

BEARING, BALL - Commutator end

1шт.

25

A47230

BOLT

BOLT ASSEMBLY - switch mounting

3шт.

26

A49815

LOCK WASHER

WASHER - lock

1шт.
