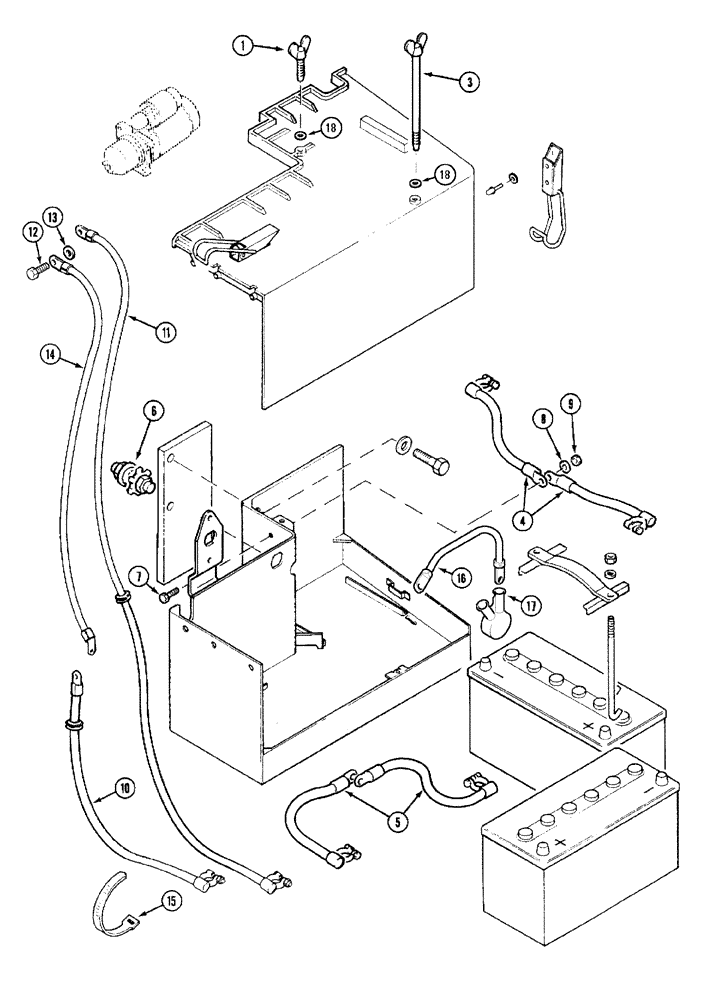

Запчасти Case IH 5250 (4-040) - BATTERY CONNECTIONS, - JJF1000558 (04) - ELECTRICAL SYSTEMS

1

T104186

THUMB SCREW

SCREW - wing

1шт.

3

1531635C1

FASTENER

- battery cover

1шт.

4

1530671C1

CABLE ASSY.

CABLE - battery to negative (For one Battery)

1шт.

4

1530671C1

CABLE ASSY.

CABLE - battery to negative (For two Batteries)

2шт.

5

T104502

CABLE

- battery to positive (For one Battery)

1шт.

5

T104502

CABLE

- battery to positive (For two Batteries)

2шт.

6

A187523

JUNCTION BLOCK

CONNECTOR - junction

1шт.

7

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd Hex, M10 x 30, 8.8

1шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- plain, 11 x 20 x 2 mm

1шт.

9

934819R1

LOCK NUT,M10 x 1.5, Thin

NUT, LOCK, M10 x 1.5, Thin

1шт.

10

1531212C1

CABLE

- battery - starter motor (Use with Nippondenso)

1шт.

11

T104589

CABLE

- battery - starter motor (Use with Bosch)

1шт.

12

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

1шт.

13

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- plain, 11 x 20 x 2 mm

1шт.

14

1531211C1

CABLE

- ground

1шт.

15

3402979R2

BAND

STRAP - cable tie

1шт.

16

1533198C1

CABLE

- jump start

1шт.

17

1531611C2

GROMMET

- jump start cable

1шт.

18

3233293R1

WASHER,M6.34 x 18 x 1.6

- flat, 6.4 mm

2шт.
