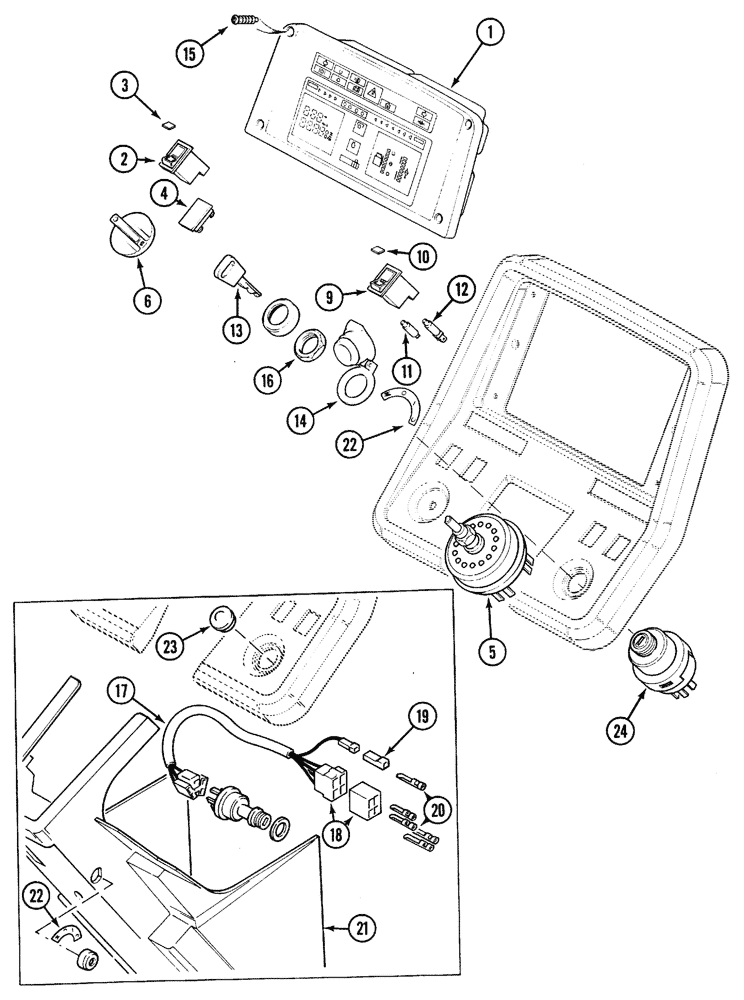

Запчасти Case IH 5250 (4-032) - INSTRUMENT PANEL, INSTRUMENTS, GAUGES AND SWITCHES (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

CLUSTER - instrument, standard, See Figure: 4-34

1шт.

1

REF

INSTRUCTION

CLUSTER - instrument, deluxe, See Figure: 4-34

1шт.

2

3231782R1

SWITCH

SWITCH - rocker

1шт.

2

1983559C1

LIGHT SWITCH

SWITCH - work lamp

1шт.

3

1983231C1

SYMBOLS

LENS - ether start

1шт.

4

245918C1

LENS

PLUG blanking, rocker switch

1шт.

5

91921C1

SWITCH

- assembly, lighting

1шт.

6

1977521C1

BUTTON

KNOB - includes screw

1шт.

9

91855C1

SWITCH

- rocker

1шт.

10

1964651C1

SYMBOLS

LENS - switch, product graphic

1шт.

11

3141107R1

BULB,W5/1.2, 12V, 1.2W

- lamp, 2 watt

1шт.

12

134608A1

LAMP SOCKET

SOCKET - bulb

1шт.

13

1964831C2

IGNITION KEY

KEYS IGNITION - used with A187613

1шт.

13

A77313

SET OF 2 KEYS

KEYS IGNITION - used with D134737 (Soft cover)

1шт.

14

1983228C1

COVER

- key switch

1шт.

14

121731A1

WASHER

COVER - key switch

1шт.

15

260-16516

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

SCREW, SELF TAPPING, Cross Pan Hd, #10 x 1"

4шт.

16

A77314

NUT

- hex, special (Used with D134737)

1шт.

REF

INSTRUCTION

KIT - ignition switch relocation, Includes: Ref. 17 - 23

1шт.

17

1987558C1

HARNESS

CABLE - adapter

1шт.

18

225217C1

CONNECTOR, ELEC

CONNECTOR - type JP

1шт.

19

1964527C1

CONNECTION

CONNECTOR - cable adapter

1шт.

20

225178C1

CONNECTOR, ELEC

TERMINAL - cable adapter

5шт.

21

1999422C1

PANEL

- steering column (For side mounted switch)

1шт.

22

1999678C1

DECAL

- ignition switch

1шт.

23

1342054C1

PLASTIC PLUG

INSERT - plastic, black

1шт.

24

A187613

IGNITION SWITCH

SWITCH - ignition, w/ether, includes 1964831C2 (Tractors with cab)

1шт.

24

A187614

IGNITION SWITCH

SWITCH - ignition, w/thermo

1шт.

24

D134737

IGNITION SWITCH

SWITCH - ignition, includes A77313 (Tractors without cab)

1шт.
