Запчасти Case IH 5250 (4-002) - ELECTRICAL HARNESS, TRANSMISSION AND CONNECTIONS, -JJF1029999 (04) - ELECTRICAL SYSTEMS

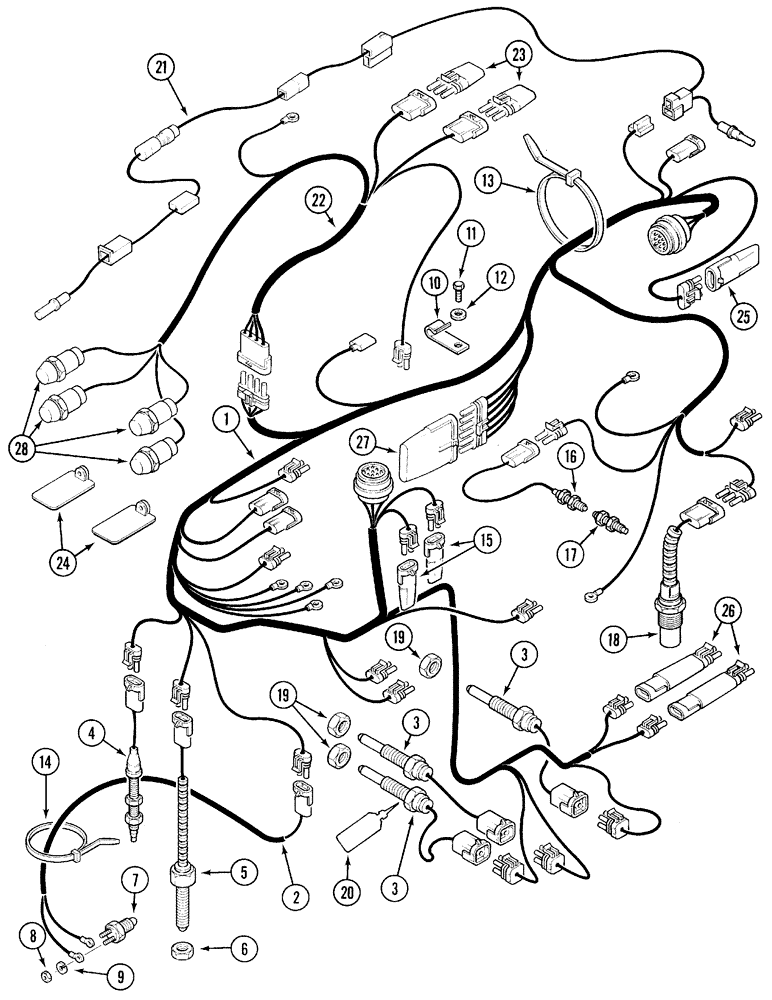

Схема запчастей Case IH 5250 - (4-002) - ELECTRICAL HARNESS, TRANSMISSION AND CONNECTIONS, -JJF1029999 (04) - ELECTRICAL SYSTEMS
11
12
23
2
14
13
1
10
6
4
5
3
15
25
7
17
27
26
19
9
16
21
19
18
22
28
8
3
20
24
3

Артикул

Название

Примечание

Количество

1

1546494C1

HARNESS

- transmission (JJF1024792 - 1029999)

1шт.

1

1987580C1

HARNESS

- transmission (JJF1015046 - 1024791)

1шт.

1

1983327C5

HARNESS

- transmission ( - JJF1015045)

1шт.

The two 21 pin aluminum Deutch connectors are p/n 225047c1. BB TSG 7/16/2001

1шт.

2

1964846C2

HARNESS

- adapter PTO speed

1шт.

3

1987326C1

SWITCH

SWITCH - Plunger Mechanical

3шт.

4

1983541C1

NEUTRAL START SWITCH

SWITCH - PTO neutral start ( - JJF1015045)

1шт.

5

92338C1

TRANSMITTER

TRANSDUCER - ground speed

1шт.

6

825-11418

NUT,M18 x 1.5, Cl 8

- hex, 18 mm - 1.5

1шт.

7

A160237

SWITCH

- PTO speed select

1шт.

8

225-14108

NUT,#8-32

- hex, No. 8 NC

2шт.

9

493-11017

LOCK WASHER,Ext-Int Tooth, #8

WASHER - tooth lock, 11/16 inch

2шт.

10

3224359R1

CLAMP

CLIP - harness

1шт.

11

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

1шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- plain, 11 x 20 x 2 mm

1шт.

13

3148767R2

COLLAR CLAMP

STRAP - cable

20шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

4шт.

15

1983245C1

MODULE

- module

2шт.

16

1983531C1

LIMIT SWITCH

SWITCH - reed

1шт.

17

1983532C1

MAGNET

- reed switch

1шт.

18

1983380C1

SWITCH

- low temperature (See Figure 8-6)

1шт.

19

425-159

JAM NUT,Jam, 9/16"-18, G5

- hex, 9/16 inch NF

3шт.

20

B17425

LOCTITE

SEALANT - pipe threads, 50 ml

1шт.

21

1983682C1

HARNESS

- starter interlock, Includes diode 548239R2

1шт.

22

1987622C2

HARNESS

- SHR remote control, Includes: Ref. 23, 24

1шт.

23

A187874

MODULE

MODULE - diode

2шт.

DIODE,MODULE 3 PRONG MALE CONN IF LOOKING FOR 3 WITH FEMALE RECEPTACLES SEE A187826.

1шт.

24

T103903

GASKET

GASKET - holder, hitch switch

2шт.

25

A187874

MODULE

MODULE - diode

1шт.

DIODE,MODULE 3 PRONG MALE CONN IF LOOKING FOR 3 WITH FEMALE RECEPTACLES SEE A187826.

1шт.

26

1987587C1

DIODE

- remotes solenoid

2шт.

27

A187813

DIODE

- remotes solenoid

2шт.

28

REF

INSTRUCTION

SWITCH - hitch controls, (See Figure 9-24)

4шт.

Выбрано товаров: 33
