Запчасти Case IH 5250 (8-068) - HYDRAULIC, REMOTE VALVE ASSEMBLY, SINGLE ACTING (08) - HYDRAULICS

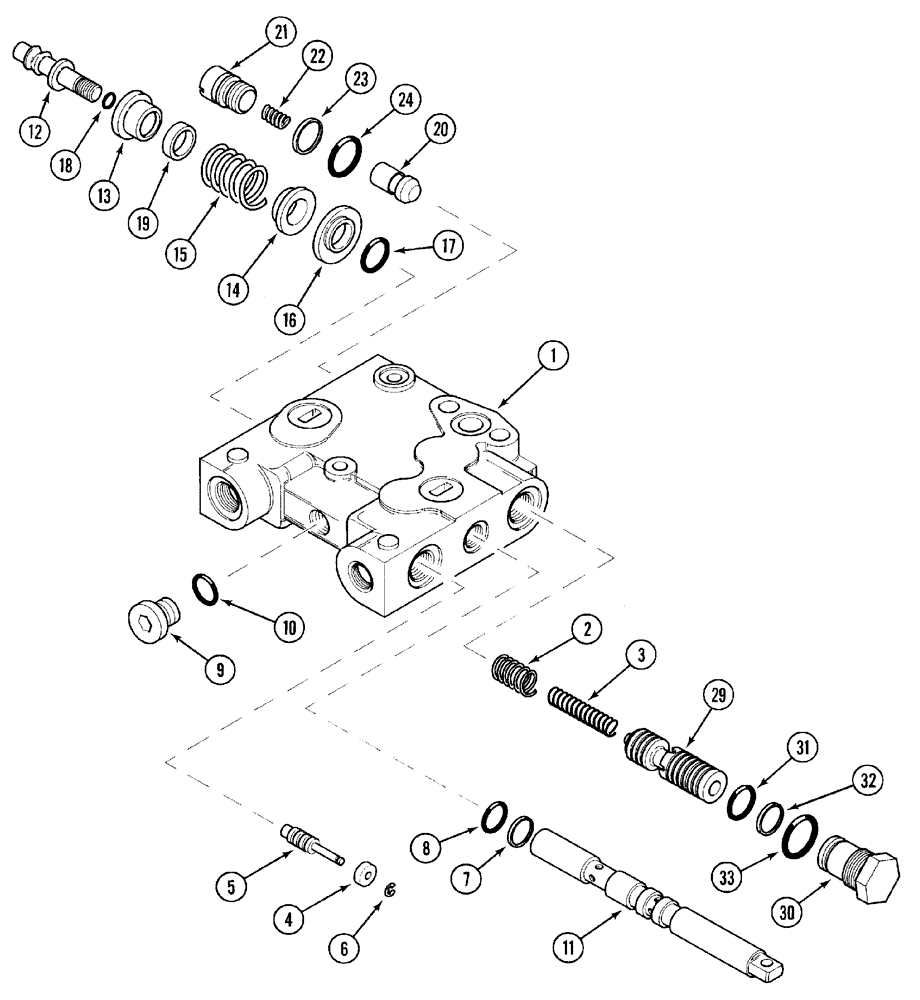

Схема запчастей Case IH 5250 - (8-068) - HYDRAULIC, REMOTE VALVE ASSEMBLY, SINGLE ACTING (08) - HYDRAULICS
17
4
7
33
29
20
9
23
24
11
21
5
10
32
3
22
14
30
31
19
12
16
1
8
13
18
6
2
15

Артикул

Название

Примечание

Количество

1978382C4

VALVE, CONTROL

VALVE - assembly, Single Acting, Includes Ref: 1-33

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

1340921C1

SPRING

- flow control, outer

1шт.

3

1980066C1

SPRING

- flow control, inner

1шт.

4

1957861C1

WASHER

- dashpot

1шт.

5

1957862C1

PISTON

- check

1шт.

6

1957859C1

SNAP RING

RING - snap

1шт.

7

71121

WIPER SEAL,15.88mm ID x 20.78mm OD x 2.74mm Thk

WIPER -

1шт.

8

G110391

O-RING,2.62mm Thk x 15.88mm ID, -114, 70 Duro

-

1шт.

9

86529630

PLUG,Hex Soc, 3/8"-24 ORB

Includes Ref. 10 Hex Soc, 3/8"-24 ORB

1шт.

10

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

11

NSS

NOT SOLD SEPARAT

SPOOL - main, Includes Ref: 12-19

1шт.

12

1980084C3

STUD

SHAFT - detent

1шт.

13

G108913

SPRING CUP

SEAT - spring

1шт.

14

G108914

SPRING CUP

SEAT - spring

1шт.

15

G108915

SPRING

- centering

1шт.

16

G108630

HOLDER

RETAINER - O-ring

1шт.

17

G110391

O-RING,2.62mm Thk x 15.88mm ID, -114, 70 Duro

-

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

19

1980085C1

SPACER

STOP - spool

1шт.

1542563C1

KIT

VALVE ASSEMBLY - check, Includes Ref: 20-24

1шт.

20

1543329C1

VALVE POPPET,7mm ID x 13.8mm OD x 27mm L

PLUG - poppet

1шт.

21

NSS

NOT SOLD SEPARAT

BODY - check valve, (Order 1542563C1)

1шт.

22

1994581C1

SPRING,6.1mm OD x 31.1mm L

- load check

1шт.

23

G108723

RING,14.34mm ID x 16.94mm OD x 1.32mm Thk

- backup

1шт.

24

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

29

G110089

SPOOL

- pressure complete

1шт.

NSS

NOT SOLD SEPARAT

PLUG - assembly, Includes Ref: 30-33

1шт.

30

G110214

PLUG

-

1шт.

31

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

32

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

- backup

1шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Continued in next figure

1шт.
