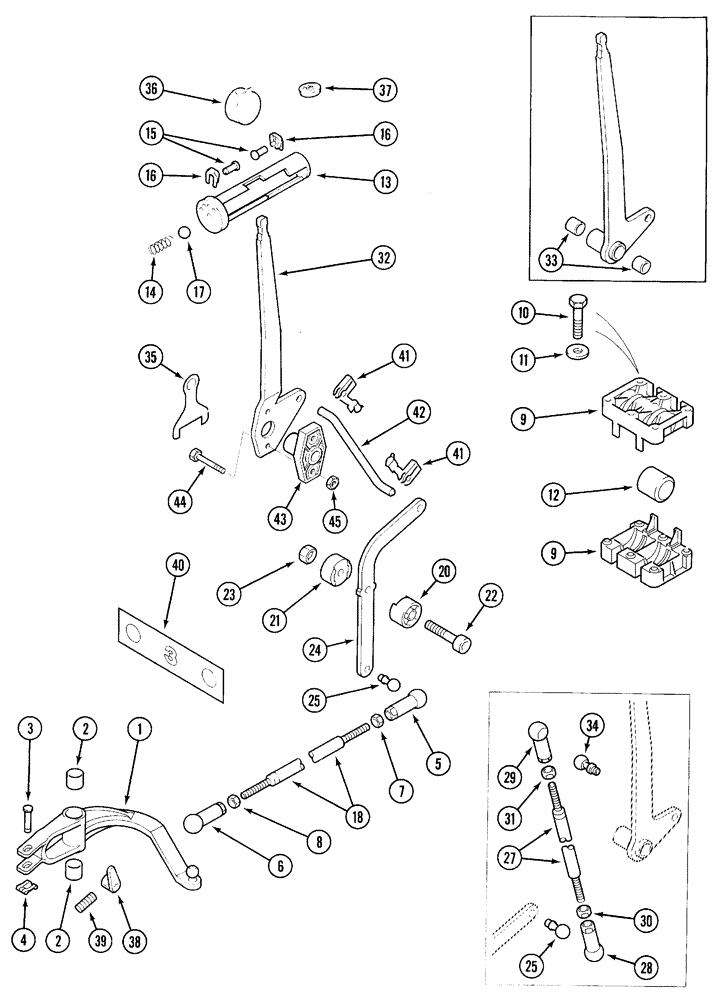

Запчасти Case IH 5250 (8-036) - HYDRAULICS, CONTROLS FOR 3RD REMOTE VALVE (08) - HYDRAULICS

1

1999662C1

CONTROL LEVER

LEVER - shifting, Includes: Ref. 2

1шт.

2

1533536C1

BUSHING,16mm ID x 18mm OD x 15mm L

- plastic, 16 mm diameter

2шт.

3

1531333C1

PIN,7.9mm OD x 34mm L

- shifting lever

1шт.

4

T102627

CLIP

- pivot retaining

1шт.

5

1531284C1

BALL SOCKET,M8 x 53mm L

SOCKET - ball

1шт.

6

1531285C1

BALL SOCKET,M8 x 53mm L

SOCKET - ball, LH thread

1шт.

7

825-1408

NUT,M8, Cl 8

1шт.

8

905852R1

THIN NUT,Thin, M8 x 1.25, Cl 04, LH

1шт.

9

T102996

BEARING HOUSING

HOUSING - bearing, plastic

2шт.

10

614-6050

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8, Full Thd

- hex, full threads, 6 - 1.0 x 50 mm, 8.8

4шт.

11

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

12

T102997

END FITTING,26 mm ID x 32 mm OD x 34.5 mm L

TUBE - plastic

1шт.

13

1530971C2

LOCK

- remote lever

1шт.

14

1531484C1

SPRING

- lockout

1шт.

15

T103011

PIN,6mm OD x 17mm L

- lockout

2шт.

16

3221347R2

CIRCLIP

RING - retaining

2шт.

17

511-2360

BALL,6mm OD, Gr 200

Class 200 6mm Dia, Stainless

1шт.

18

T103466

ROD

- connecting

1шт.

1534875C1

ARM ASSY.

ARM - assembly, 3rd valve, Includes: Ref. 20 - 24, Start Serial: JJF1021533

1шт.

20

1531277C1

ROLLER

- cylindrical

1шт.

21

1531280C1

ROLLER

- cylindrical

1шт.

22

864-5025

HEX SOC SCREW,M5 x 25mm, Cl 8.8

1шт.

23

934306R1

LOCK NUT,M5 x .8, Thin

NUT, LOCK, M5 x .8, Thin

1шт.

24

NSS

NOT SOLD SEPARAT

ARM - assembly (Order 1534875C1)

1шт.

1531271C2

ARM ASSY.

ARM - assembly, 3rd valve, Includes: Ref. 20 - 24, Serial Range: -JJF1021532

1шт.

20

1531277C1

ROLLER

- cylindrical

1шт.

21

1531280C1

ROLLER

- cylindrical

1шт.

22

864-5025

HEX SOC SCREW,M5 x 25mm, Cl 8.8

1шт.

23

934306R1

LOCK NUT,M5 x .8, Thin

NUT, LOCK, M5 x .8, Thin

1шт.

24

NSS

NOT SOLD SEPARAT

ARM - assembly (Order 1531271C2), Includes: Ref. 25

1шт.

25

3234708R1

BALL STUD

BALL - 10 mm, joint

2шт.

1531274C1

ROD

- connecting 3rd valve, Includes: Ref. 27 - 31

1шт.

27

T103466

ROD

- connecting

1шт.

28

1531284C1

BALL SOCKET,M8 x 53mm L

SOCKET - ball

1шт.

29

1531285C1

BALL SOCKET,M8 x 53mm L

SOCKET - ball, LH thread

1шт.

30

825-1408

NUT,M8, Cl 8

1шт.

31

905852R1

THIN NUT,Thin, M8 x 1.25, Cl 04, LH

1шт.

32

108716A1

CONTROL LEVER

LEVER - pos. 3, (With Cab/Platform W/O ROPS), Start Serial: JJF1021533

1шт.

32

108717A1

CONTROL LEVER

LEVER - pos. 3, (Platform W/ROPS), Start Serial: JJF1021533

1шт.

32

1531260C3

CONTROL LEVER

LEVER - pos. 3, (With Cab/Platform W/O ROPS), Includes: Ref. 33 & 34, Serial Range: -JJF1021532

1шт.

33

1533534C1

PLASTIC RING

BUSHING - plastic

2шт.

34

NSS

NOT SOLD SEPARAT

BALL - joint (Order 1531260C3)

1шт.

35

T102902

SHEET

SELECTOR - sheet

1шт.

36

1974840C1

BUTTON

KNOB - assembly, position 3, Includes Ref: 37

1шт.

37

NSS

NOT SOLD SEPARAT

INSERT - symbol (Order 1974840C1)

1шт.

38

1999649C1

LEVER

KNOB - flow control, l

1шт.

39

877-6056

SET SCREW,M5 x 6mm

SCREW - set, hex socket, half dog point, 5 - 0.8 x 6 mm

1шт.

40

1531517C1

SYMBOLS

PLATE - marking, position 3

1шт.

41

1534844C1

CLIP

- connecting rod, left, Start Serial: JJF1021533

2шт.

42

1534848C1

STEM

ROD - connecting 3rd valve, Start Serial: JJF1021533

1шт.

43

108709A1

HUB

ARM - assembly

1шт.

44

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

Full threads Hex, M6 x 20, 8.8

2шт.

45

832-10406

NUT,M6 x 1, Cl 8

LOCK, M6 x 1, Cl 8

2шт.
