(2-008) - AIR CLEANER, 5250 TRACTORS

Запчасти Case IH 5250 (2-008) - AIR CLEANER, 5250 TRACTORS (02) - ENGINE

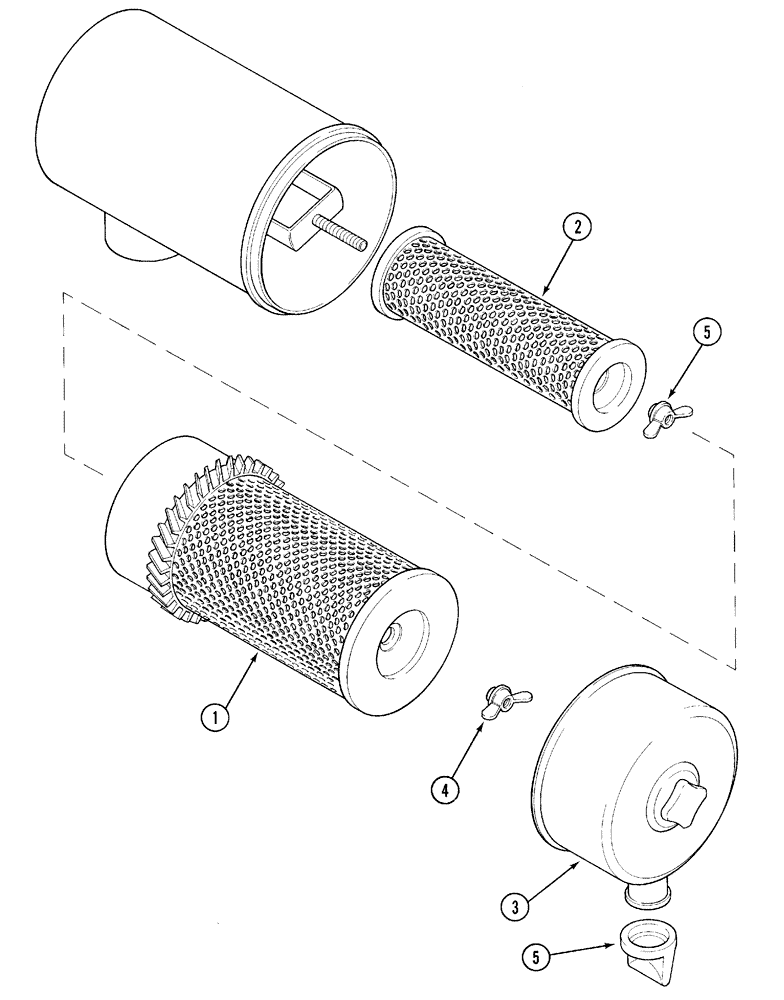

Схема запчастей Case IH 5250 - (2-008) - AIR CLEANER, 5250 TRACTORS (02) - ENGINE
5
2
1
5
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1998710C1

AIR CLEANER

CLEANER - air, Includes: Ref. 1 - 4

1шт.

1

A47032

AIR FILTER

ELEMENT - primary, outer

1шт.

2

A47033

AIR FILTER

ELEMENT - secondary, inner

1шт.

3

104792A1

COVER

CUP - assembly, with nut

1шт.

4

1547926C1

THUMB SCREW

NUT - wing, complete with gasket

2шт.

Ref. #4, 1547926C1 does not come with gasket, must order D37976 washer gasket separate.

1шт.

5

A184939

VALVE

- dust

1шт.
