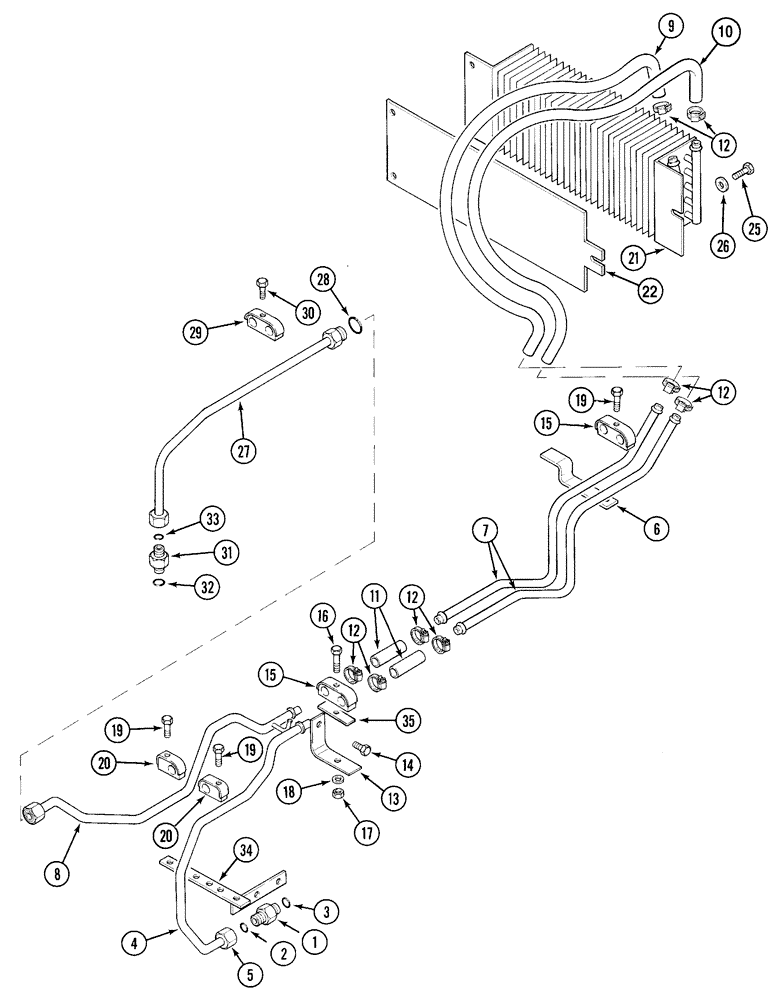

Запчасти Case IH 5250 (8-004) - HYDRAULIC OIL COOLER AND PIPES, 5250 TRACTORS ONLY (08) - HYDRAULICS

1

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

CONNECTOR, HYD., , Includes Ref. 2, 3 1"-14 ORFS x 7/8"-14 ORB

1шт.

2

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

T103992

PIPE,16 mm OD x 495, 540 mm L

TUBE - oil cooler, rear, Includes Ref: 5

1шт.

5

203-903

TUBE NUT,1"-14 ORFS

NUT - hex, tube, 1-14 inch face seal

1шт.

6

1530803C1

SUPPORT

BRACKET - oil cooler pipes

1шт.

7

1534998C2

HYD TUBE,16 mm OD, 740, 300 mm Length

TUBE - oil cooler, front

2шт.

8

189480A1

HYD TUBE

TUBE - oil cooler return, rear

1шт.

9

222342A1

HOSE

- return, left

1шт.

10

222341A1

HOSE

- supply, right

1шт.

11

1531840C1

HYDRAULIC HOSE,15.9mm ID x 90mm L, SAE 100R3

HOSE - 0.09m

2шт.

12

905894R1

COLLAR,16mm - 27mm, Worm Gear

CLAMP - pipe

8шт.

13

T101941

BRACKET

- fitted to hood support

1шт.

14

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

1шт.

15

T102453

CLAMP

- pipe

2шт.

17

825-1406

NUT,M6, Cl 8

1шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

19

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

4шт.

20

T102969

CLAMP

- pipe

2шт.

21

101732A1

COOLER

- oil

1шт.

22

105824A2

SUPPORT ASSY.

SUPPORT - oil cooler

1шт.

25

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

3шт.

26

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 16 x 1.6 mm

3шт.

27

T102948

PIPE

- brake lube

1шт.

28

T102297

O-RING,1.78mm Thk x 15.6mm ID, 90 Duro

-

1шт.

29

T103149

CLAMP

- pipe, double

1шт.

30

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

1шт.

31

201-115

HYD CONNECTOR,1" - 14 Male ORFS x 3/4" - 16 Male ORB

CONNECTOR - straight, 1-14 face x 3/4-16 boss, Includes Ref: 32, 33

1шт.

32

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

33

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

34

1534602C1

SUPPORT ASSY.

BRACKET - oil cooler pipes

1шт.

16

814-6040

BOLT,Hex, M6 x 1 x 40mm, Cl 8.8

1шт.
