Запчасти Case IH 5250 (6-074) - TRANSMISSION, OIL PUMP AND FILTER SCREEN (06) - POWER TRAIN

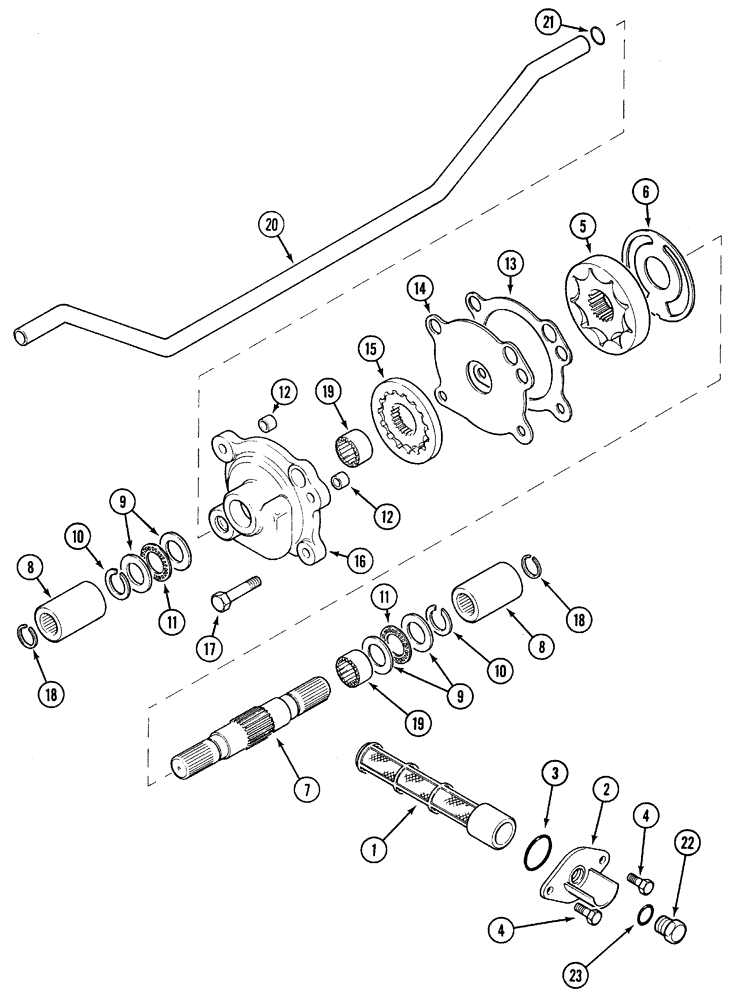

Схема запчастей Case IH 5250 - (6-074) - TRANSMISSION, OIL PUMP AND FILTER SCREEN (06) - POWER TRAIN
9
5
11
14
4
10
15
4
18
1
8
20
13
17
2
19
23
21
22
10
16
3
19
12
9
7
6
18
8
11
12

Артикул

Название

Примечание

Количество

1

A186988

SCREEN

- oil filter

1шт.

2

1995071C2

COVER ASSY

COVER - screen (Powershift tractors)

1шт.

3

238-5226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

(Trans. JKA55246 - ) -226, 70 Duro, 1.984" ID x .139" Thk

1шт.

3

1341104C2

GASKET

- screen cover (Trans. - JKA55245)

1шт.

4

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

5

115463A1

ROTOR

GEROTER - set, charge pump (51/5230/51/5240 Trans. JKA67970 - )

1шт.

5

115463A1

ROTOR

GEROTER - set, charge pump (5250 Trans. JKA62944 - )

1шт.

5

A188587

ROTOR

GEROTER - set, charge pump (51/5230/51/5240 Trans. - JKA67969)

1шт.

5

A188587

ROTOR

GEROTER - set, charge pump (5250 Trans. - JKA62943)

1шт.

6

233253A1

LARGE PLATE

PLATE - wear, charge pump

1шт.

7

1341087C1

SHAFT

- charge/scavenge drive

1шт.

8

1341089C1

SPLINED COUPLING

COUPLING - shaft

2шт.

9

A146625

WASHER, THRUST,28.63mm ID x 43.95mm OD x 3.2mm Thk

BEARING - needle, thrust

4шт.

10

100-16112

SNAP RING,#112, Ext

Ring, Snap, #112, Ext

2шт.

11

T36441

THRUST BEARING,1.127" ID x 1.74" OD x 0.0781"

BEARING - thrust

2шт.

12

A188710

BUSHING

SLEEVE - dowel

2шт.

13

A188103

SHIM,116mm ID x 138mm OD x 0.05mm Thk

Red 0.05mm Thk

1шт.

13

A188104

SHIM,116mm ID x 140mm OD x 0.13mm Thk

Blue 0.13mm Thk

1шт.

14

A188691

PLATE

- separator

1шт.

15

A188035

ROTOR

GEROTER - set, scavenge pump

1шт.

16

1345684C1

HOUSING

- scavenge pump

1шт.

17

828-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

- hex, 12 - 1.75 x 50 mm

3шт.

18

100-21106

SNAP RING,1.06", Int, #106

Ring, Snap, 1.06", Int, #106

2шт.

19

T15025

NEEDLE BEARING,Needle, 31.75mm ID x 38.11mm OD x 19.05mm W

BEARING - needle

2шт.

20

A188079

TUBE

- scavenge pump inlet

1шт.

21

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

22

A50094

PLUG,Screw, 5/8" - 18 x 0.377"

- scavenge pump inlet (Synchro tractors)

1шт.

23

237-6007

O-RING,0.08" Thk x 0.53" ID, -907, Cl 6, 90 Duro

- 17/32 ID x 3/32 inch wide (Synchro tractors)

1шт.

Выбрано товаров: 28
