Запчасти Case IH 5240 (4-062) - GROUND SPEED SENSOR (04) - ELECTRICAL SYSTEMS

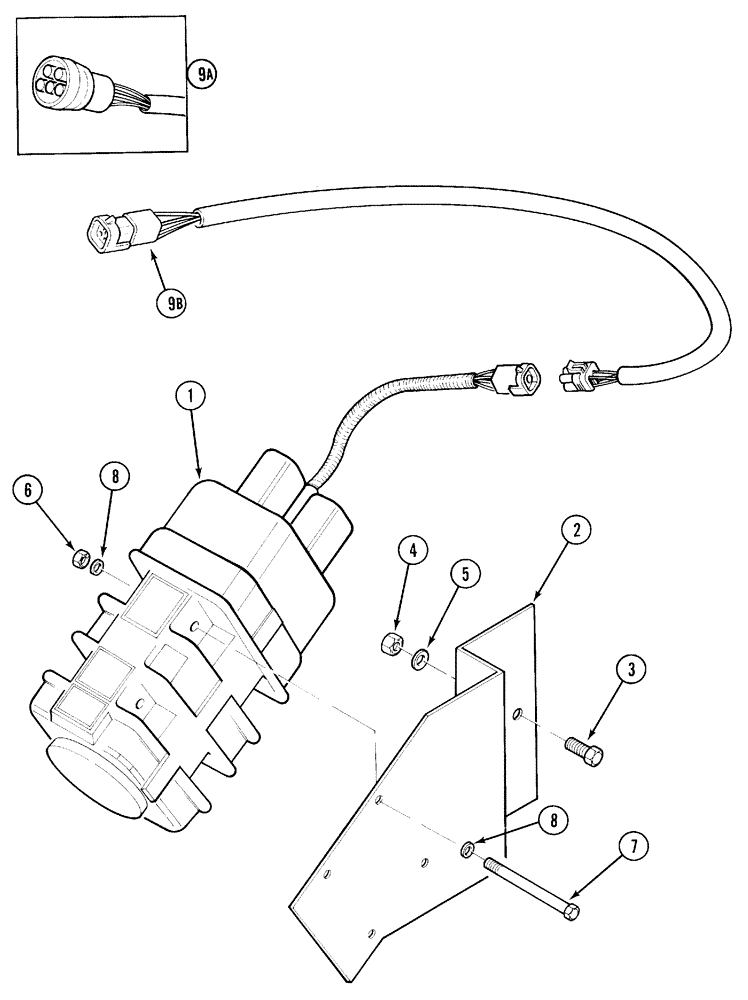

Схема запчастей Case IH 5240 - (4-062) - GROUND SPEED SENSOR (04) - ELECTRICAL SYSTEMS
7
9a
9b
6
4
1
8
8
5
3
2

Артикул

Название

Примечание

Количество

1

1983294C1

SPEED LIMITER

SENSOR - speed, ground

1шт.

1

87733890R

REMAN-SENSOR

5140, 5130, Both (NORTH AMERICA) (1/90-), 5230, 5250, All CASE IH MAXXUM TRACTOR, SENSOR - speed, ground

1шт.

1

87733890C

CORE-SENSOR

Return Number

1шт.

2

T103883

BRACKET

- radar mount

1шт.

3

614-8022

BOLT,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 22 mm

3шт.

4

825-1408

NUT,M8, Cl 8

3шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 16 x 1.6 mm

3шт.

6

934305R1

THIN NUT,M6 x 1, Thin

NUT - hex, 6 mm - 1 Class 10

4шт.

7

814-6100

BOLT,Hex, M6 x 1 x 100mm, Cl 8.8

4шт.

8

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

9b

122497A1

CABLE ASSY.

HARNESS - ground speed (JJF1030000 - )

1шт.

9a

1964560C4

HARNESS

- ground speed ( - JJF1029999)

1шт.

REF

INSTRUCTION

HARNESS - monitor adapter, not illustrated (see figure 4-16)

1шт.

Выбрано товаров: 13
