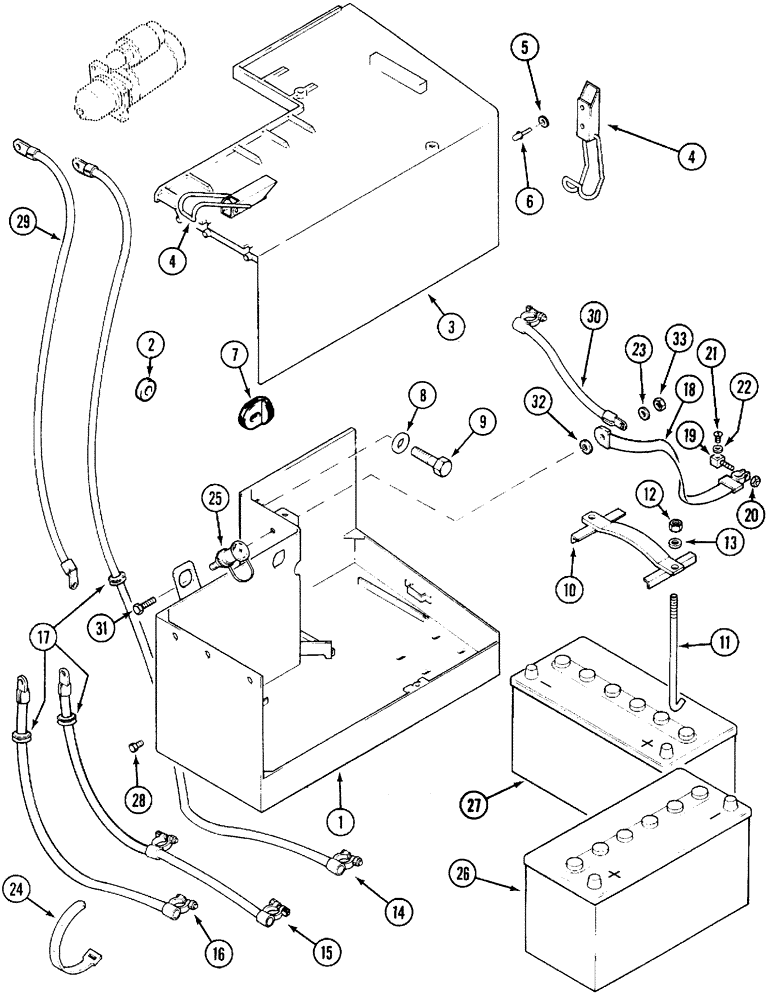

Запчасти Case IH 5240 (4-038) - BATTERY CONNECTIONS, JJF1000559 - (04) - ELECTRICAL SYSTEMS

1

1531956C5

SUPPORT ASSY.

BRACKET ASSEMBLY, Includes Ref: 2

1шт.

2

1533122C1

SPACER

- battery box

3шт.

3

1531634C2

COVER ASSY

COVER - battery box, Includes Ref: 4, 5, 6

1шт.

4

1531635C1

FASTENER

- battery cover

2шт.

5

905951R1

WASHER,M3.7 x 11 x .8

- 3.7 x 11 x 0.8 mm

4шт.

6

905938R1

RIVET

- 3.2 x 12 mm

4шт.

7

134029A1

PLUG

- battery box

1шт.

8

905789R1

WASHER,M17 ID x 30 OD x 3 Thk

- flat

2шт.

9

862-16050

HEX SOC SCREW,M16 x 50mm, Cl 12.9

BOLT - hex socket, 16 - 2.0 x 50 mm, Class 12.9

2шт.

10

T104583

BRACKET

- assembly, battery

2шт.

11

T104160

ROD

- battery bracket

4шт.

12

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, M8 x 1.25, Cl 8

4шт.

13

3218129R1

WASHER

- retainer bolt

4шт.

14

1533311C2

CABLE

- battery to starter motor (For one battery)

1шт.

15

1533313C2

CABLE

- battery to booster terminal (For two batteries)

1шт.

16

1533333C2

CABLE

- battery to booster terminal (For two batteries)

1шт.

17

1533307C2

GROMMET

- battery cable

1шт.

18

1530671C1

CABLE ASSY.

CABLE - battery to negative (For one battery), Includes Ref: 19-22

1шт.

19

1534945C1

SCREW,M8 x 30mm, Cl 4.6

BOLT - battery cable terminal

1шт.

20

1534946C1

NUT

- battrey cable terminal

1шт.

21

905887R1

SCREW,M6 x 12mm

- 6 mm x 12mm

1шт.

22

905886R1

WASHER,M6.4 ID x 12 OD x 1.6 Thk, Brass

- 6mm

1шт.

23

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- plain, 11 x 20 x 2 mm

1шт.

24

3402979R2

BAND

STRAP - cable tie

1шт.

25

1964554C1

TERMINAL

- auxiliary jump start

1шт.

26

BMF31E

DRY BATTERY

BATTERY - dry, 12 volt (5100 Series Early Production)

1шт.

26

BHC30685

WET BATTERY

- dry, 12 volt (Later 5100 And ALL 5200 Series)

1шт.

27

BHC30685

WET BATTERY

- dry, 12 volt, dual use only (Later 5100 And ALL 5200 Series)

2шт.

28

1531633C1

PLUG

- 9.4 mm diameter

3шт.

29

1533314C2

CABLE

- booster terminal to starter motor

1шт.

3055196R1

BOOT

- rubber (Used with 1533314C2) Not illustrated

1шт.

30

1533134C1

CABLE

- battery to negative (For second battery)

1шт.

31

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

32

893-11010

LOCK WASHER,Ext Tooth, M10

WASHER, LOCK, Ext Tooth, M10

1шт.

33

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, M10 x 1.5, Cl 8

1шт.
