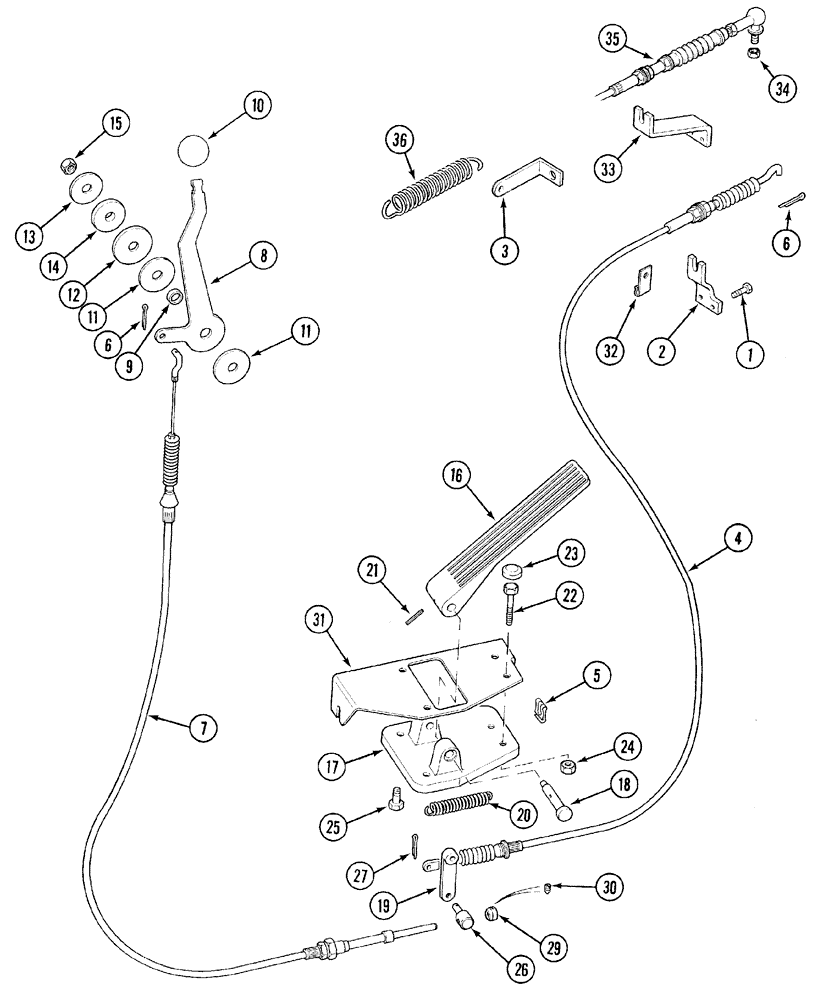

Запчасти Case IH 5240 (3-008) - THROTTLE, HAND LEVER AND FOOT PEDAL (03) - FUEL SYSTEM

1

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

2

1531318C1

SUPPORT

- cable (5140/5240 and 5250 tractors)

1шт.

2

1531318C1

SUPPORT

- cable (5130/5230 tractors, JJF1020008 - )

1шт.

3

1534786C1

SUPPORT

ANGLE - spring anchor (5130/5230 tractors, - JJF1020007)

1шт.

4

1531323C2

CABLE

- throttle control (5140/5240 and 5250 tractors)

1шт.

4

1531323C2

CABLE

- throttle control (5130/5230 tractors JJF1020008 - )

1шт.

5

T101807

CLIP

- safety

1шт.

6

T102862

PIN

- split, cable retaining (5130/5230 tractors, JJF1020008 - )

2шт.

7

1531668C2

CABLE

- hand throttle

1шт.

8

1340018C2

CONTROL LEVER

LEVER - hand throttle

1шт.

9

T101396

RING

BUSHING - (5130/5230 tractors, JJF1020008 - )

1шт.

10

1958759C1

KNOB

- throttle

1шт.

11

1531493C1

FRICTION WASHER

WASHER - brake

2шт.

12

T101397

WASHER

- (5130/5230 tractors, JJF1020008 - )

1шт.

13

T101398

WASHER,8.5mm ID x 40mm OD x 3mm Thk

- (5130/5230 tractors, JJF1020008 - ) JJF1020008 to

1шт.

14

T101407

WASHER

- rubber

1шт.

15

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, M8 x 1.25, Cl 8

1шт.

16

1974767C3

PEDAL

- throttle

1шт.

17

1974768C1

PIVOT

- foot throttle

1шт.

18

1974769C3

SHAFT

- foot throttle

1шт.

19

1974770C2

LEVER

- foot pedal

1шт.

20

1974771C1

SPRING

- throttle

1шт.

21

30873R1

PIN,M4 x 26, Coiled

- spring, 4 mm x 26mm

1шт.

22

614-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 70 mm

1шт.

23

1981770C1

STOP

- foot throttle

1шт.

24

825-1408

NUT,M8, Cl 8

1шт.

25

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

3шт.

26

1958798C1

TRUNNION

- foot throttle

1шт.

27

733-2012

COTTER PIN,M2 x 12

PIN, SPLIT (COTTER), M2 x 12

1шт.

29

1531662C1

CLAMP

- foot throttle

1шт.

30

877-2045

SET SCREW,M4 x 5mm

SCREW - set hex socket, cone point, 4 - 0.7 x 5 mm

1шт.

31

1975840C3

BRACKET

- cable

1шт.

32

1531314C1

CLAMP

CLIP - cable

1шт.

33

1533755C1

SUPPORT

- cable (5130/5230 tarctors, - JJF1020007)

1шт.

34

T102734

FLANGE NUT

- hex, flange (5130/5230 tractors, - JJF1020007)

1шт.

35

1531673C2

BOWDEN CONTROL

CABLE - throttle control (5130/5230 tractors, - JJF1020007)

1шт.

36

3234915R2

SPRING

- throttle (5130/5230 tractors, - JJF1020007)

1шт.
