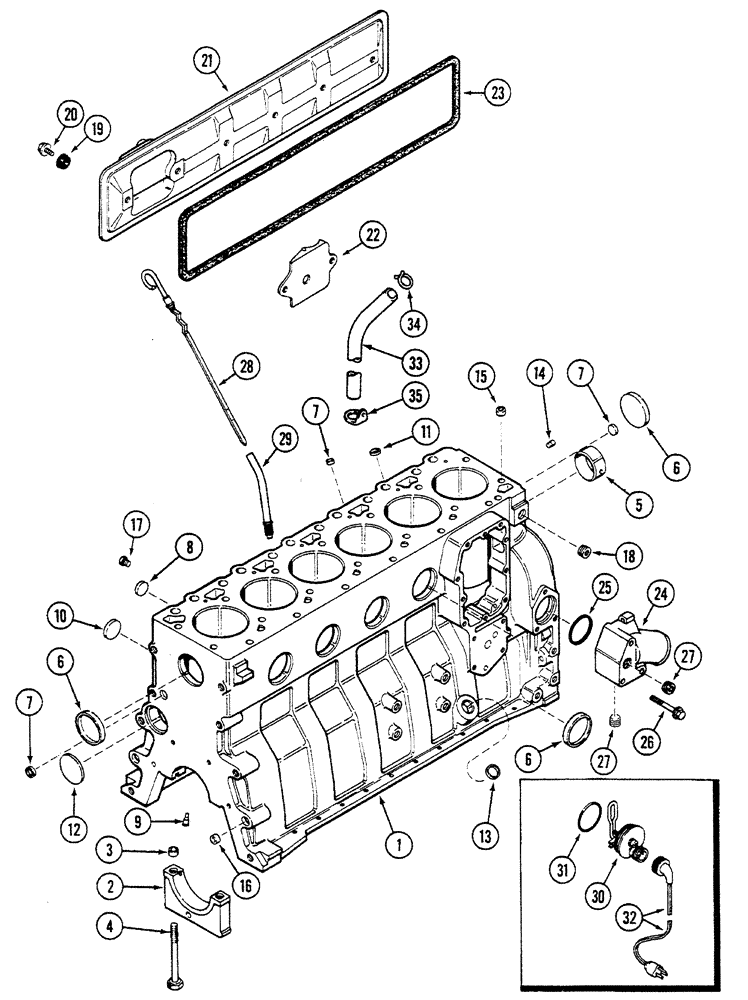

Запчасти Case IH 5240 (2-056) - CYLINDER BLOCK, 6T-590 ENGINE, TURBOCHARGED, 5140/5240 AND 5250 TRACTORS (02) - ENGINE

1989096C2

BASIC ENGINE

ENGINE ASSEMBLY - basic, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front crank pulley, turbocharger and b

1шт.

1989096C3R

REMAN-BASIC ENGINE

5140, 5240, 5250

1шт.

1989096C3C

CORE-BASIC ENGINE

Return Part Number

1шт.

J933183

SKELETON ENGINE

Engine Short Block - Tier 0

1шт.

JR933183

REMAN-SHORT ENGINE

Reman For New PN J933183

1шт.

JC933183

CORE-SHORT ENGINE

Return Part Number

1шт.

1

J916255

CYLINDER BLOCK

BLOCK ASSEMBLY - stripped, engine, Includes: Ref. 2 - 8

1шт.

Order also J802641 hardware kit when ordering J916255 stripped block.

1шт.

2

J900967

BEARING CAP

CAP - main bearing

7шт.

3

J900068

BEARING WASHER

RING - dowel, 18 mm OD

14шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

BOLT - main bearing cap, special

14шт.

5

REF

INSTRUCTION

BUSHING - camshaft front, See Figure 2-50, item 2

1шт.

6

A77782

PLUG

PLUG - expansion, 58 mm OD

6шт.

7

J900956

PLUG

PLUG - expansion, 18 mm OD

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

PLUG, , Expansion Cup, 1", Stainless

4шт.

J802641

PACKAGE, REPAIR

KIT - block hardware, Includes: Ref. 9 - 18

1шт.

Order also J802641 hardware kit when ordering J916255 stripped block.

1шт.

9

J930139

NOZZLE CAP

NOZZLE - piston cooling (Engine 52126205 - )

6шт.

9

J901020

NOZZLE CAP

NOZZLE - piston cooling ( - Engine 52126204)

6шт.

10

J900958

PLUG

PLUG - expansion, 32 mm OD

1шт.

11

J900955

PLUG

PLUG - expansion, 10 mm OD

2шт.

12

41-3038

PLUG,Exp, 2 3/8"

PLUG - expansion, 2-11/32 inch OD

1шт.

13

J920706

PLUG

PLUG - expansion, 22 mm OD

1шт.

14

J900257

PIN,10.01mm OD x 16mm L

PIN - dowel, 16 mm long

2шт.

15

J902343

DOWEL

RING - dowel, 16 mm OD

2шт.

16

J900068

BEARING WASHER

RING - dowel, 18 mm OD

2шт.

17

J906619

PLUG,1/8" - 27

PLUG - hex, 1/8 inch PT

2шт.

18

A77429

PLUG

PLUG - hex socket, 1/2 inch PT

1шт.

18a

J926047

O-RING,0.07" Thk x 2.239" ID

O-RING - block

1шт.

19

1342830C1

SEAL

SEAL - cover bolt

4шт.

20

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 20 mm

4шт.

21

J927913

COVER

COVER - tappet

1шт.

22

J907586

BAFFLE

BAFFLE - tappet cover

1шт.

23

J907617

GASKET

GASKET - tappet cover

1шт.

24

J903102

CONNECTION

CONNECTION - water inlet

1шт.

25

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID

1шт.

26

J901757

FLANGE BOLT,Hex, M10 x 75mm, Cl 10.9

BOLT - hex flange head, 10 mm - 1.50 x 75 mm

3шт.

27

A77429

PLUG

PLUG - hex socket, 1/2 inch PT

1шт.

28

J918245

DIPSTICK

DIPSTICK - engine oil (Overall length 309mm)

1шт.

Overall length of dipstick blade, also includes dipstick inside sealing cap.

1шт.

28

J914663

DIPSTICK

DIPSTICK - engine oil (Overall length 317mm)

1шт.

Overall length of dipstick blade, also includes dipstick inside sealing cap.

1шт.

29

J918246

TUBE

TUBE - dipstick oil (Overall length 165.3mm)

1шт.

Tube length measured straight - not follwing the curve of tube.

1шт.

29

J914650

TUBE,9.52 mm OD x 181, 37.5 mm L

TUBE - dipstick oil (Overall length 181mm)

1шт.

Tube length measured straight - not follwing the curve of tube.

1шт.

196803A1

KIT

KIT - engine block heater, Includes: Ref. 30 - 32

1шт.

30

NSS

NOT SOLD SEPARAT

HEATER - engine block

1шт.

31

J910517

O-RING

O-RING - heater sealing, engine block

1шт.

32

196466A1

ELECTRIC CABLE

CABLE - engine block heater

1шт.

33

J918614

TUBE,435.00 mm

HOSE - 25 inch (635 mm) long, engine block heater

1шт.

34

J904230

CLAMP,25.4mm

CLAMP - hose, engine block heater

1шт.

35

J909670

CLIP

CLIP - retaining, engine block heater

1шт.
