Запчасти Case IH 5240 (2-040) - TURBOCHARGER, 6T-590 ENGINE, 5140/5240 AND 5250 TRACTORS (02) - ENGINE

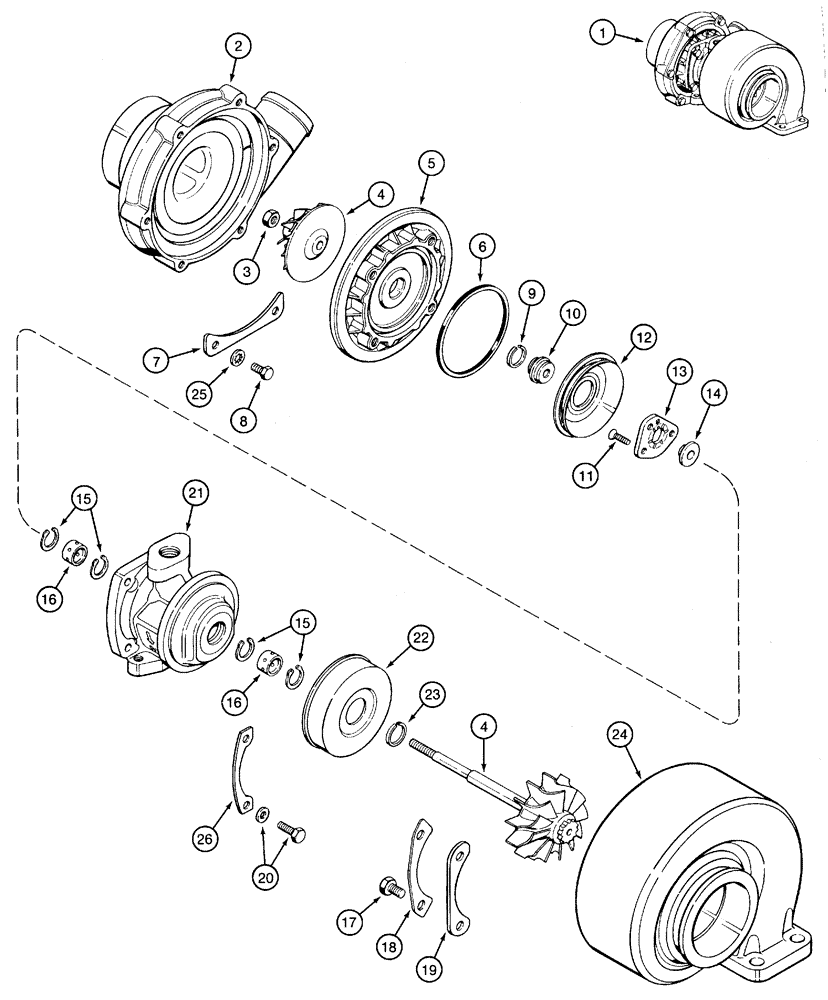

Схема запчастей Case IH 5240 - (2-040) - TURBOCHARGER, 6T-590 ENGINE, 5140/5240 AND 5250 TRACTORS (02) - ENGINE
25
12
16
19
17
8
23
4
3
7
14
15
16
21
13
6
10
22
9
11
5
26
1
4
18
24
20
15
2

Артикул

Название

Примечание

Количество

1

J919113

TURBOCHARGER

TURBOCHARGER ASSEMBLY - engine, new, Includes Ref: 2-26

1шт.

1

JR802289

REMAN-TURBOCHARGER

5140, 5240, 5250, Reman For New P/N J919113

1шт.

1

JC528741

CORE-TURBOCHARGER

Return Part Number

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - compressor

1шт.

3

NSS

NOT SOLD SEPARAT

NUT - hex lock

1шт.

Part of Turbocharger Overhaul Kit P/N J54652

1шт.

4

NSS

NOT SOLD SEPARAT

ROTOR ASSEMBLY - turbocharger, Includes both halves

1шт.

5

NSS

NOT SOLD SEPARAT

DIFUSSER - compressor

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - diffuser

1шт.

Part of Turbocharger Overhaul Kit P/N J54652

1шт.

7

NSS

NOT SOLD SEPARAT

PLATE - diffuser clamping

3шт.

8

NSS

NOT SOLD SEPARAT

BOLT - clamping plate

6шт.

Part of Turbocharger Overhaul Kit P/N J54652

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - split ring, oil slinger

1шт.

Part of Turbocharger Overhaul Kit P/N J54652

1шт.

10

NSS

NOT SOLD SEPARAT

SLINGER - oil

1шт.

11

NSS

NOT SOLD SEPARAT

SCREW - flat head Torx

3шт.

Part of Turbocharger Overhaul Kit P/N J54652

1шт.

12

NSS

NOT SOLD SEPARAT

BAFFLE - oil

1шт.

13

NSS

NOT SOLD SEPARAT

BEARING - thrust

1шт.

Part of Turbocharger Overhaul Kit P/N J54652

1шт.

14

NSS

NOT SOLD SEPARAT

COLLAR - thrust

1шт.

15

NSS

NOT SOLD SEPARAT

RING - snap, bearing retaing

4шт.

Part of Turbocharger Overhaul Kit P/N J54652

1шт.

16

NSS

NOT SOLD SEPARAT

BEARING - impeller shaft

2шт.

Part of Turbocharger Overhaul Kit P/N J54652

1шт.

17

NSS

NOT SOLD SEPARAT

BOLT - plate retaining

4шт.

Part of Turbocharger Overhaul Kit P/N J54652

1шт.

18

NSS

NOT SOLD SEPARAT

PLATE - lock, turbine housing

2шт.

Part of Turbocharger Overhaul Kit P/N J54652

1шт.

19

NSS

NOT SOLD SEPARAT

PLATE - clamping, turbine housing

2шт.

20

NSS

NOT SOLD SEPARAT

BOLT ASSEMBLY - hex, lock, Includes washer

1шт.

Part of Turbocharger Overhaul Kit P/N J54652

1шт.

21

NSS

NOT SOLD SEPARAT

HOUSING - turbine bearing

1шт.

22

NSS

NOT SOLD SEPARAT

SHIELD - heat, turbine

1шт.

23

NSS

NOT SOLD SEPARAT

SEAL - piston ring, turbine

1шт.

Part of Turbocharger Overhaul Kit P/N J54652

1шт.

24

NSS

NOT SOLD SEPARAT

HOUSING - turbocharger

1шт.

25

NSS

NOT SOLD SEPARAT

WASHER - internal tooth lock

6шт.

Part of Turbocharger Overhaul Kit P/N J54652

1шт.

26

NSS

NOT SOLD SEPARAT

PLATE - lock, turbine

2шт.

Part of Turbocharger Overhaul Kit P/N J54652

1шт.

J545652

PACKAGE, REPAIR

KIT - overhaul, turbocharger, Includes: Ref. 3, 6, 8, 9, 11, 13, 15-18, 20, 23, 25 and 26 all items with an asterisk

1шт.

Выбрано товаров: 43
