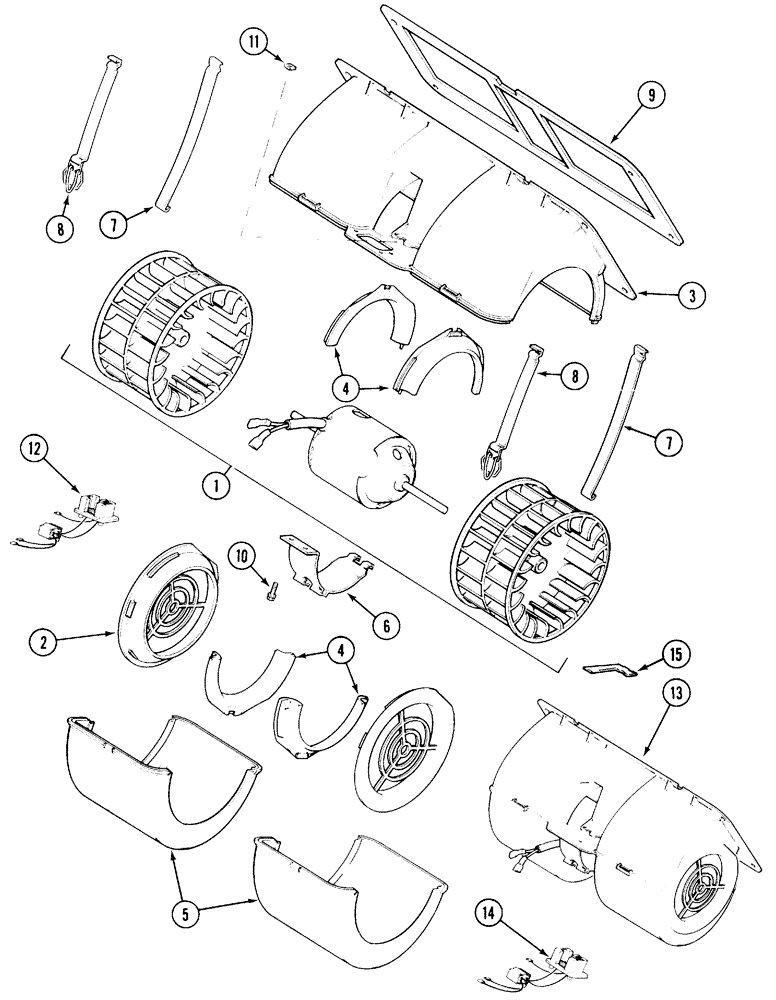

Запчасти Case IH 5240 (9-102) - CAB, BLOWER ASSEMBLY (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

BLOWER - Cab, (Order 1977564C2), Includes: Ref. 1 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

MOTOR ASSEMBLY - blower, balanced (Order 1977564C2) (Behr)

1шт.

2

1974780C1

VENTURI

VENTRI - blower inlet (Behr)

2шт.

3

1975737C1

HOUSING

- blower (Behr)

1шт.

4

1975738C1

RING

- housing, upper (Behr)

4шт.

5

1975739C1

LID

COVER - blower housing (Behr)

2шт.

6

1975740C1

HOLDER

RETAINER - blower housing cover (Behr)

1шт.

7

1975741C1

STRAP

- retaining (Behr)

2шт.

8

1975742C1

STRAP

- latch retaining (Behr)

2шт.

9

1975743C1

GASKET

GASKET - blower sealing (Behr)

1шт.

10

814-5020

BOLT,Hex, M5 x 0.8 x 20mm, Cl 8.8, Full Thd

- hex, 5 - 0.8 x 20 mm (Behr)

2шт.

11

1975752C1

SQUARE NUT

- square, 5 mm (Behr)

2шт.

12

3404054R1

RESISTOR

- (Behr)

1шт.

13

1977564C2

BLOWER

- cab, aurora

1шт.

13

355190A1R

REMAN-BLOWER,12V

Reman for New PN 1977564C2

1шт.

13

355190A1C

CORE-BLOWER,12V

Return Number

1шт.

14

1343938C2

RESISTOR

- blower, aurora

1шт.

Ref #14 could also be a C1 MVP TSG

1шт.

15

1990860C1

SUPPORT

BRACKET - resistor mounting, aurora

1шт.
