Запчасти Case IH 5240 (8-078) - HYDRAULIC, PIPING, FRONT HITCH (08) - HYDRAULICS

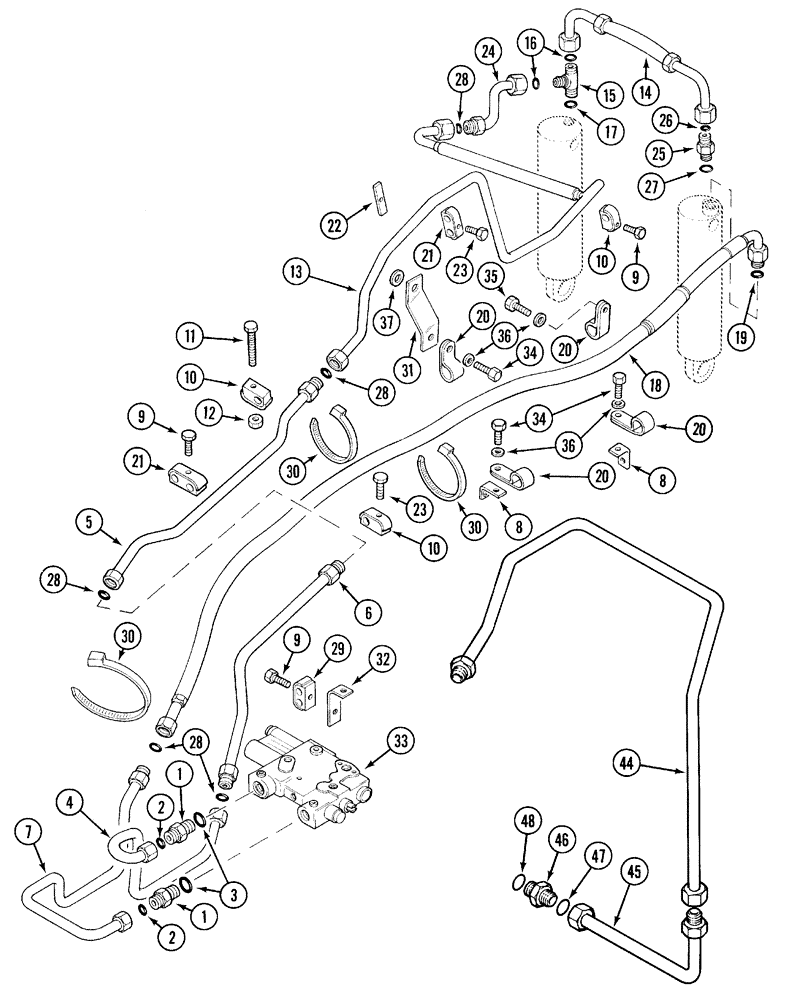

Схема запчастей Case IH 5240 - (8-078) - HYDRAULIC, PIPING, FRONT HITCH (08) - HYDRAULICS
9
3
24
28
15
20
10
2
47
20
2
30
10
1
19
28
31
34
30
6
32
46
36
18
20
11
28
23
12
4
28
9
36
7
13
8
8
33
45
14
10
37
23
44
17
16
5
22
29
21
26
21
25
34
48
1
9
35
20
30
27

Артикул

Название

Примечание

Количество

1

201-112

HYD CONNECTOR,13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

FITTING - straight, 13/16-16 face x 7/8-14 boss, Includes Ref: 2, 3

2шт.

2

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

1531681C1

PRESSURE PIPE

PIPE - pressure, rear (Single acting)

1шт.

4

1530712C1

PRESSURE PIPE

PIPE - pressure, rear (Double acting JJF1023716 - )

1шт.

5

T103994

PIPE

- assembly

1шт.

5

1987630C1

HOSE ASSY.

HOSE - field fitment (Not shown)

1шт.

6

1531682C1

PRESSURE PIPE

PIPE - pressure, middle

1шт.

7

1531683C1

PRESSURE PIPE

PIPE - return, rear (Single acting)

1шт.

7

1530713C1

PRESSURE PIPE

PIPE - return, rear (Double acting)(JJF1023716 - )

1шт.

8

1530727C1

SUPPORT ASSY.

BRACKET - hose (JJF1023716 - )

2шт.

9

614-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8, Full Thd

3шт.

10

T101170

CLAMP

- pipe

3шт.

11

814-6070

BOLT,Hex, M6 x 1 x 70mm, Cl 8.8

- hex, 6 - 1.0 x 70 mm

1шт.

12

825-1406

NUT,M6, Cl 8

1шт.

13

1530699C2

PIPE

- front

1шт.

14

1531095C1

HOSE

- assembly, 375 mm

1шт.

15

201-412

TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 3/4" - 16 ORB

- adjustable, 13/16-16 face branch x face x 3/4-16 boss, Includes Ref: 16, 17

1шт.

16

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

18

1530714C1

HOSE ASSY.

HOSE - front hitch (JJF1023716 - ), Includes Ref: 19

1шт.

19

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

20

1530720C1

CLAMP

- hose (JJF1023716 - )

4шт.

21

T103149

CLAMP

- pipe, double

1шт.

22

3402819R1

PLATE

BAR - clamp mounting

1шт.

23

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

1шт.

24

1531096C1

HYD TUBE,12 mm OD, 120, 84 mm Length

TUBE - assembly

1шт.

25

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

CONNECTOR, HYD., , Includes Ref: 26, 27 13/16"-16 ORFS x 3/4"-16 ORB

1шт.

26

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

28

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

5шт.

29

T103135

CLAMP

- pipe

1шт.

30

3148767R1

CABLE TIE

STRAP - cable

3шт.

31

1530717C1

SUPPORT ASSY.

BRACKET - hose (JJF1023716 - )

1шт.

32

1531746C2

BRACKET

SUPPORT - assembly

1шт.

33

REF

INSTRUCTION

VALVE - assembly, (See Figures 8-56 - 8-66)

1шт.

34

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

3шт.

35

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

1шт.

36

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

37

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- plain, 11 x 20 x 2 mm

1шт.

38

1530720C1

CLAMP

- hose

1шт.

39

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

40

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 16 x 1.6 mm

1шт.

41

1533454C1

SUPPORT

BRACKET -

1шт.

42

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

- hex, full threads, 10 - 1.5 x 40 mm

1шт.

43

825-1406

NUT,M6, Cl 8

1шт.

44

1531684C1

PRESSURE PIPE

PIPE - return (Use with 1531683C1)

1шт.

45

1533088C1

HYD TUBE,12 mm OD, 142, 85 mm Length

PIPE - return

1шт.

46

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

CONNECTOR, HYD., , Includes Ref: 47, 48 13/16"-16 ORFS x 3/4"-16 ORB

1шт.

47

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

48

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

Выбрано товаров: 51
