Запчасти Case IH 5240 (8-058) - HYDRAULIC, REMOTE PRIORITY VALVE ASSEMBLY (08) - HYDRAULICS

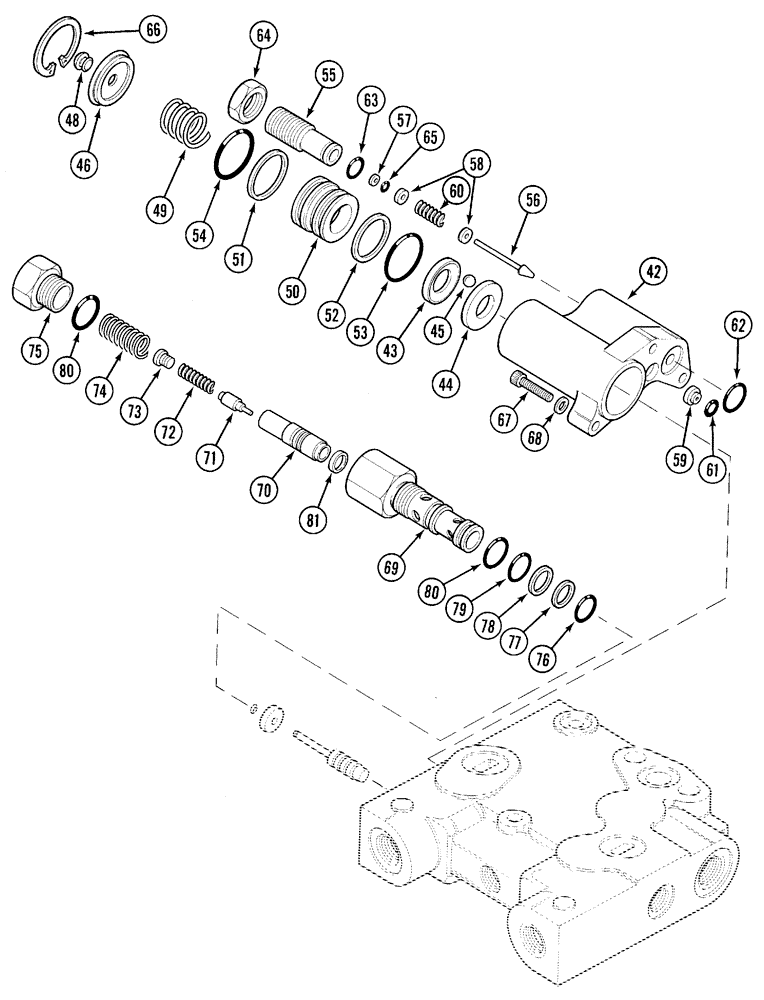

Схема запчастей Case IH 5240 - (8-058) - HYDRAULIC, REMOTE PRIORITY VALVE ASSEMBLY (08) - HYDRAULICS
55
65
46
73
75
66
45
48
64
43
79
80
54
60
61
81
70
49
71
67
63
59
69
52
42
50
44
56
80
62
51
75
53
58
72
77
76
57
68
78

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

VALVE - assembly, auxiliary hydraulic, Includes Ref: 42-81

1шт.

1980160C2

SPOOL

DETENT - assembly, Includes Ref: 42-66

1шт.

42

1976957C1

COVER ASSY

COVER - detent

1шт.

43

G108911

WASHER

- detent

1шт.

44

G108912

WASHER

- detent

1шт.

45

211-1007

BALL,7/32" Dia

- chrome alloy steel, 7/32", Class 24

8шт.

321361A1

RETAINER

- assembly, Includes Ref: 46, 48

1шт.

46

1341975C2

RETAINER - detent

1шт.

321360A1

O-RING,0.8mm Thk x 27mm ID, Cl 5, 75 Duro

- retainer (Not illustrated)

1шт.

48

G107780

VALVE, CHECK

PLUG - valve

1шт.

49

G110152

SPRING

- detent

1шт.

G108921

PISTON

ASSEMBLY - detent, Includes Ref: 50-54

1шт.

50

G108908

PISTON

- detent

1шт.

51

G108728

BACK-UP RING

RING - backup, large

1шт.

52

G108922

BACK-UP RING

RING - backup, small

1шт.

53

238-6020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

1шт.

54

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

55

G110300

PLUG

- adjusting, pilot relief

1шт.

56

G110279

VALVE POPPET

POPPET - pilot relief

1шт.

57

G110289

BACK-UP RING

RING - backup

1шт.

58

G110281

SPRING CUP

WASHER - spring retainer

2шт.

59

G108918

ORIFICE

WASHER - orifice

1шт.

60

G109275

SPRING

- pilot

1шт.

61

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

62

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

63

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

64

425-1510

JAM NUT,Jam, 5/8"-18, G5

- hex, 5/8 inch NF

1шт.

65

238-5004

O-RING,0.07" Thk x 0.07" ID, -4, Cl 5, 75 Duro

-004, 70 Duro, .07" ID x .070" Thk

1шт.

66

100-21118

SNAP RING,1.188", Int, #118

Ring, Snap, 1.188", Int, #118

1шт.

67

61-31016

HEX SOC SCREW,#10 - 24 x 1"

SCREW, Hex Soc Hd, #10-24 x 1"

3шт.

68

495-11022

WASHER,5.56mm ID x 11.13mm OD x 1.25mm Thk

(Flat, 7/32" x 7/16" x 3/64") #10

3шт.

1971801C2

CHECK VALVE

VALVE - check (if fitted), Includes Ref: 69-81

1шт.

69

NSS

NOT SOLD SEPARAT

BODY - check valve

1шт.

70

NSS

NOT SOLD SEPARAT

POPPET - main

1шт.

71

NSS

NOT SOLD SEPARAT

POPPET - pilot

1шт.

72

1957817C1

VALVE SPRING

SPRING - poppet

1шт.

73

1957964C1

RETAINER

- spring

1шт.

74

1957965C1

VALVE SPRING

SPRING - main

1шт.

75

NSS

NOT SOLD SEPARAT

CAP - check valve

1шт.

76

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

77

G110287

BACK-UP RING

RING - backup, inner

1шт.

78

G108727

BACK-UP RING,13.27mm ID x 15.87mm OD x 1.32mm Thk

RING - back-up, outer

1шт.

79

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

80

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

81

G108724

BACK-UP RING

RING - back-up, 3/8 ID x 1/16 inch

1шт.

Выбрано товаров: 45
