Запчасти Case IH 5240 (8-046) - HYDRAULIC, REMOTE AUXILIARY PIPES (08) - HYDRAULICS

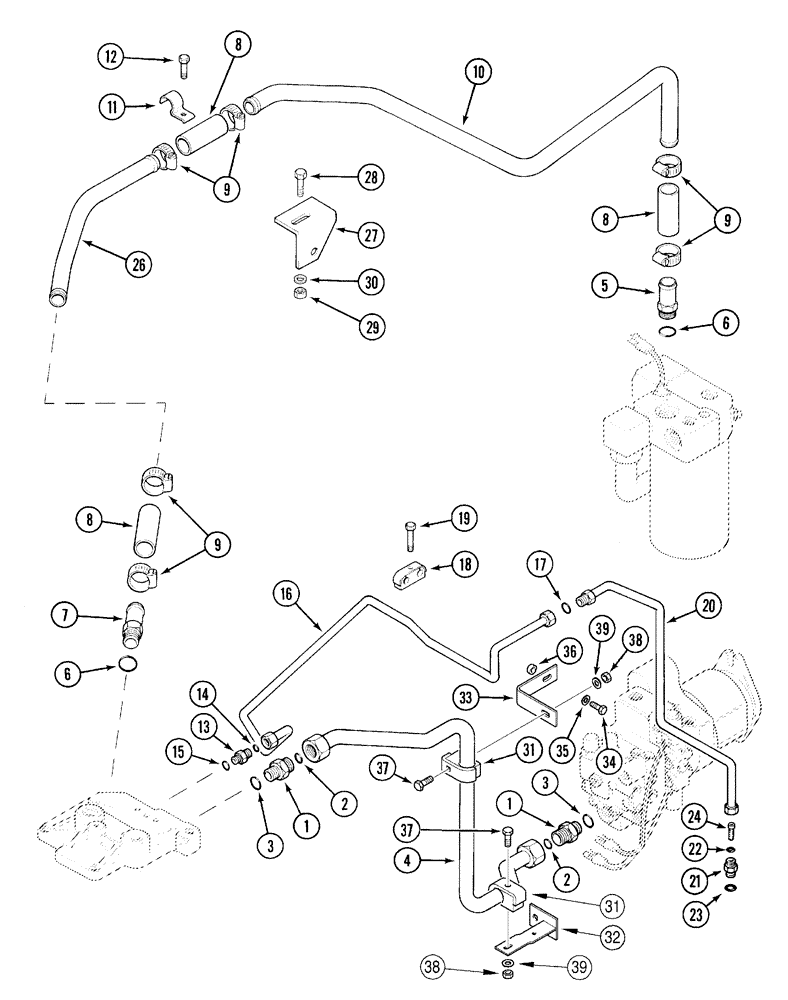

Схема запчастей Case IH 5240 - (8-046) - HYDRAULIC, REMOTE AUXILIARY PIPES (08) - HYDRAULICS
32
9
30
2
38
11
36
6
18
21
6
23
35
28
31
29
1
16
7
3
37
10
1
38
3
4
17
5
2
15
12
20
33
8
39
9
24
26
22
31
34
27
9
39
8
19
37
14
8
13

Артикул

Название

Примечание

Количество

1

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., , Includes Ref. 2, 3 1 3/16"-12 ORFS x 1 1/16"-12 ORB

2шт.

2

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

4

NSS

NOT SOLD SEPARAT

PIPE - pressure (Trans. - JKA82635 Order Kit 191056A1)

1шт.

4

187966A1

PIPE

- pressure (Trans. JKA82636 - )

1шт.

5

T100045

CONNECTOR, ELEC

CONNECTOR - return, straight, Includes Ref: 6

1шт.

6

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk

1шт.

7

1343779C1

FITTING

VALVE - check, auxiliary return (Bruning), Includes Ref: 6

1шт.

6

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk

1шт.

7

1534372C1

VALVE, CHECK

VALVE - check, auxiliary return (Voss), Includes Ref: 6

1шт.

6

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk

1шт.

8

1531600C1

HOSE

- connecting

3шт.

9

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj. #16, 0.81/1.50 Type F Worm

6шт.

10

1533288C1

RETURN PIPE

PIPE - return, front

1шт.

11

3141095R1

CLAMP

- pipe

1шт.

12

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

1шт.

13

201-125

HYD CONNECTOR,11/16"-16 ORFS x 7/16"-20 ORB

CONNECTOR - straight, 11/16-16 face x 7/16-20 boss, Includes Ref: 14, 15

1шт.

14

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

15

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

16

1531390C2

HYD TUBE

TUBE - pilot, auxiliary valve, rear

1шт.

17

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

18

T103147

FIXING BRACKET

CLAMP - pipe, double

1шт.

19

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

1шт.

20

1533577C1

HYD TUBE

TUBE - pilot, auxiliary valve, front (Trans. JKA58095 - )

1шт.

20

1531749C1

HYD TUBE

TUBE - pilot, auxiliary valve, front (Trans. - JKA58094)

1шт.

21

1534787C1

FITTING

ADAPTER - components not serviced separately (Trans. JKA58095 -)

1шт.

21

1534508C1

FITTING

CONNECTOR - special (Trans. - JKA58094), Includes Ref: 22-24

1шт.

22

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

23

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

24

1533329C1

FILTER SCREEN

SCREEN - filter

1шт.

26

1531955C1

PIPE

- return, rear

1шт.

27

1531969C1

SUPPORT

BRACKET - pipe return

1шт.

28

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

Full threads Hex, M6 x 20, 8.8

1шт.

29

825-1406

NUT,M6, Cl 8

1шт.

30

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

191056A1

PACKAGE, REPAIR

KIT - field, supply tube (Also Includes item 4), Includes Ref: 31-39

1шт.

31

191054A1

CLAMP

- tube, single

2шт.

32

191050A1

SUPPORT ASSY.

BRACKET - assembly, tube

1шт.

33

191053A1

SUPPORT

BRACKET - tube

1шт.

34

828-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

1шт.

35

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

36

191055A1

SPACER

- bracket

2шт.

37

814-6045

BOLT,Hex, M6 x 1 x 45mm, Cl 8.8

2шт.

38

825-1406

NUT,M6, Cl 8

2шт.

39

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

Выбрано товаров: 45
