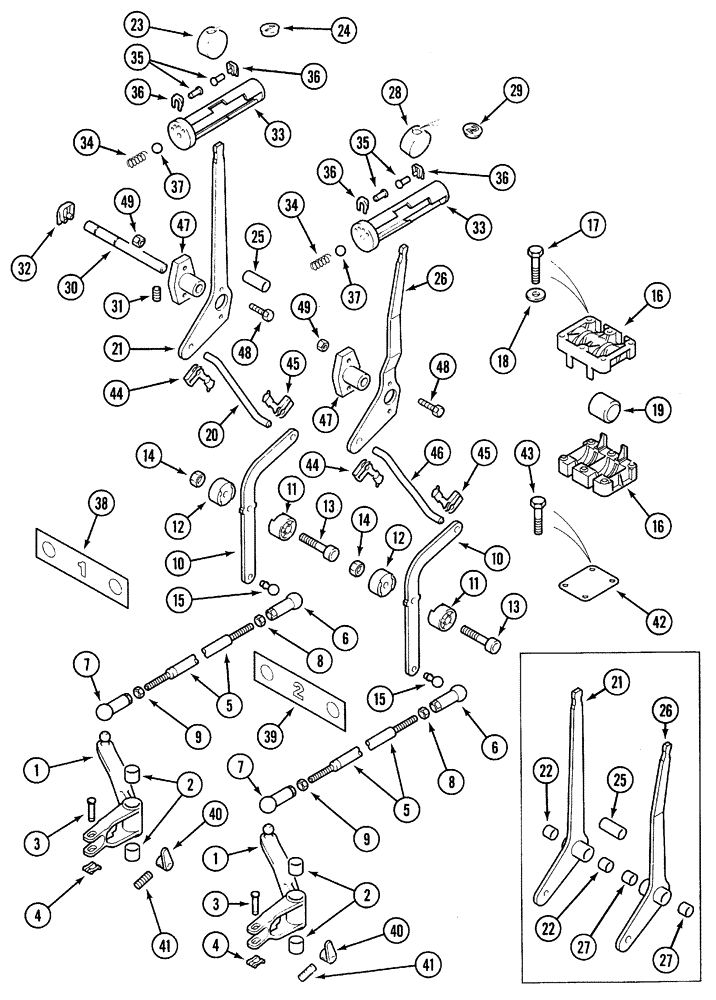

Запчасти Case IH 5240 (8-034) - HYDRAULICS, CONTROLS FOR 1ST AND 2ND REMOTE VALVES (08) - HYDRAULICS

1

1999660C1

CONTROL LEVER

LEVER - shifting, Includes Ref: 2

2шт.

2

1533536C1

BUSHING,16mm ID x 18mm OD x 15mm L

- plastic, 16 mm diameter

2шт.

3

1531333C1

PIN,7.9mm OD x 34mm L

- shifting lever

2шт.

4

T102627

CLIP

- pivot retaining

2шт.

5

1531485C1

ROD

- connecting

2шт.

6

1531284C1

BALL SOCKET,M8 x 53mm L

SOCKET - ball

2шт.

7

1531285C1

BALL SOCKET,M8 x 53mm L

SOCKET - ball, LH thread

2шт.

8

825-1408

NUT,M8, Cl 8

2шт.

9

905852R1

THIN NUT,Thin, M8 x 1.25, Cl 04, LH

2шт.

10

1534866C1

ARM ASSY.

ARM - assembly (JJF1021533 - ), Includes Ref: 11-15

2шт.

11

1531277C1

ROLLER

- cylindrical

1шт.

12

1531280C1

ROLLER

- cylindrical

1шт.

13

864-5025

HEX SOC SCREW,M5 x 25mm, Cl 8.8

1шт.

14

934306R1

LOCK NUT,M5 x .8, Thin

NUT, LOCK, M5 x .8, Thin

1шт.

15

3234708R1

BALL STUD

BALL - 10 mm ( - JJF1021532)

2шт.

16

T102996

BEARING HOUSING

HOUSING - bearing, plastic

2шт.

17

614-6050

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8, Full Thd

- hex, full threads, 6 - 1.0 x 50 mm, 8.8

6шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

19

T102997

END FITTING,26 mm ID x 32 mm OD x 34.5 mm L

TUBE - plastic

1шт.

20

1534847C1

THREADED ROD

ROD - connecting, 1st auxiliary valve (JJF1021533 - )

1шт.

20

1531283C1

ROD

- connecting, 1st auxiliary valve (BSN - 1021533)

2шт.

1531283C1 ROD DOES NOT NEED CLIPS IT HAS BALL STUDS IN IT ALREADY

1шт.

21

108714A1

CONTROL LEVER

LEVER - assembly, position 1 (JJF1021533 - ), Includes Ref: 22

1шт.

21

1531249C3

LEVER ASSY.

LEVER - assembly, position 1 ( - JJF1021532), Includes Ref: 22

1шт.

22

1533534C1

PLASTIC RING

BUSHING - plastic

2шт.

23

1974838C1

BUTTON

KNOB - assembly, position 1, Includes Ref: 24

1шт.

24

NSS

NOT SOLD SEPARAT

INSERT - symbol (Order 1974838C1)

1шт.

25

1531334C1

BUSHING

- spacer (For tractors with one auxiliary valve)

1шт.

26

108715A1

CONTROL LEVER

LEVER - assembly, position 2 (JJF1021533 - ), Includes Ref: 27

1шт.

26

1531252C3

CONTROL LEVER

LEVER - assembly, position 2 ( - JJF1021532), Includes Ref: 27

1шт.

27

1533534C1

PLASTIC RING

BUSHING - plastic

2шт.

28

1974839C1

BUTTON

KNOB - assembly, position 2, Includes Ref: 29

1шт.

29

NSS

NOT SOLD SEPARAT

INSERT - symbol (Order 1974839C1)

1шт.

30

T103006

ROD

- bearing for lever

1шт.

31

577-2068

SET SCREW,Hex Soc, M6 x 8, Cone Pt

- 6 mm x 8mm

1шт.

32

T101807

CLIP

- safety

1шт.

33

1530971C2

LOCK

- remote lever

2шт.

34

1531484C1

SPRING

- lockout

2шт.

35

T103011

PIN,6mm OD x 17mm L

- lockout

4шт.

36

3221347R2

CIRCLIP

RING - retaining

4шт.

37

511-2360

BALL,6mm OD, Gr 200

Class 200 6mm Dia, Stainless

2шт.

38

1531515C1

SYMBOLS

PLATE - marking, position 1

1шт.

39

1531516C1

SYMBOLS

PLATE - marking, position 2

1шт.

40

1999649C1

LEVER

KNOB - flow control

2шт.

41

877-6056

SET SCREW,M5 x 6mm

SCREW - set, hex socket, half dog point, 5 - 0.8 x 6 mm

2шт.

42

1531798C1

LARGE PLATE

COVER - 3rd control valve (Used when 3rd aux valve is not fitted)

1шт.

43

514-503

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

- hex, 6 x 12 mm, Class 8.8

4шт.

44

1534844C1

CLIP

- connecting rod, left (JJF1021533 - )

2шт.

45

1534845C1

CLIP

- connecting rod, right (JJF1021533 - )

2шт.

46

1534846C1

THREADED ROD

Rod, Smooth Ends, 2nd auxiliary valve (ASN - JJF1021533 - 1029999)

1шт.

47

108709A1

HUB

ARM - assembly

2шт.

48

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

4шт.

49

832-10406

NUT,M6 x 1, Cl 8

LOCK, M6 x 1, Cl 8

4шт.
