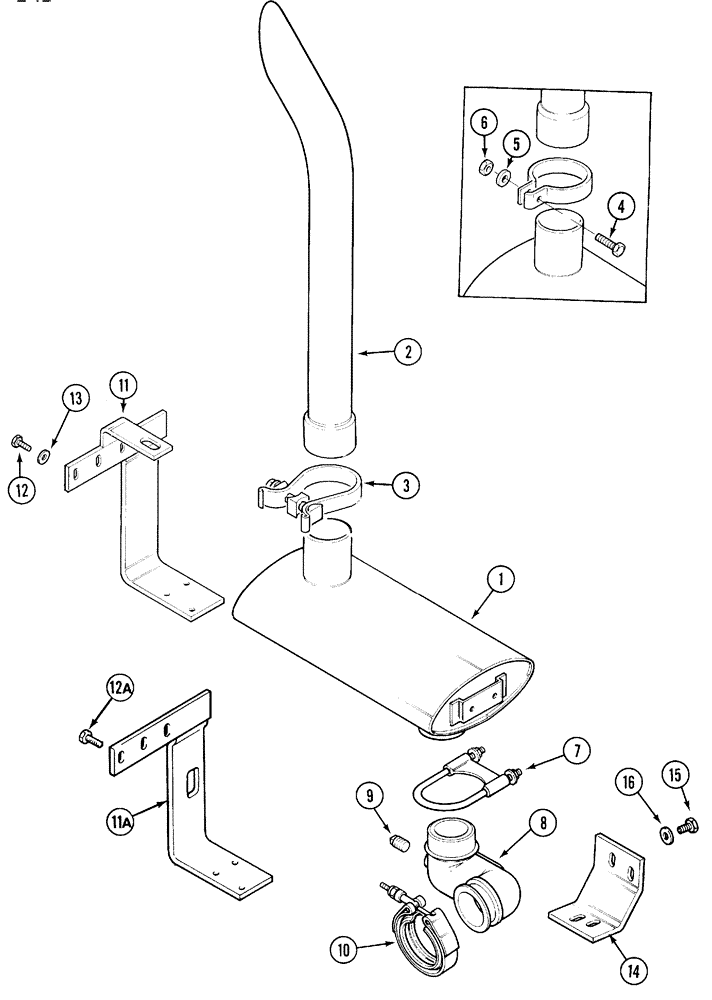

Запчасти Case IH 5240 (2-012) - EXHAUST SYSTEM, 5140/5240 AND 5250, VERTICAL (02) - ENGINE

1

A184475

MUFFLER

- oval

1шт.

2

A189049

PIPE, EXHAUST SYSTEM

EXTENSION - exhaust

1шт.

2

132223A1

PIPE, EXHAUST SYSTEM

EXTENSION - ehxuast, Chrome

1шт.

3

122594A1

CLAMP,86.46mm

- exhaust

1шт.

3

132222A1

CLAMP

- exhaust, (for chrome extension)

1шт.

4

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

( - JJF1029999) Hex, M10 x 40, 8.8, Full Thd

1шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- plain, 11 x 20 x 2 mm ( - JJF1029999)

1шт.

6

825-1410

NUT,M10, Cl 8

( - JJF1029999) M10, Cl 8

1шт.

7

A189265

CLAMP,80.5mm ID

- muffler

1шт.

8

A170987

ELBOW

TUBE - elbow

2шт.

9

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

10

A170467

CLAMP,72mm ID

- includes hardware

1шт.

11

1532154C3

SUPPORT ASSY.

BRACKET - support assembly (JJF1000243 - )

1шт.

11

T102642

BRACKET

- support assembly ( - JJF1000242)

1шт.

12

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

(JJF1000243-) Hex, M10 x 25, 8.8, Full Thd JJF1000243 to

3шт.

12

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

JJF1000243 to

2шт.

12

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

(-JJF1000242) Hex, M10 x 25, 8.8, Full Thd, Serial Range: -JJF1000242

5шт.

13

934281R1

WASHER,M10.5 ID x 20 OD x 2 Thk

- plain, 10.5 mm

5шт.

14

A184494

BRACKET

- elbow mounting

1шт.

15

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

16

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.
