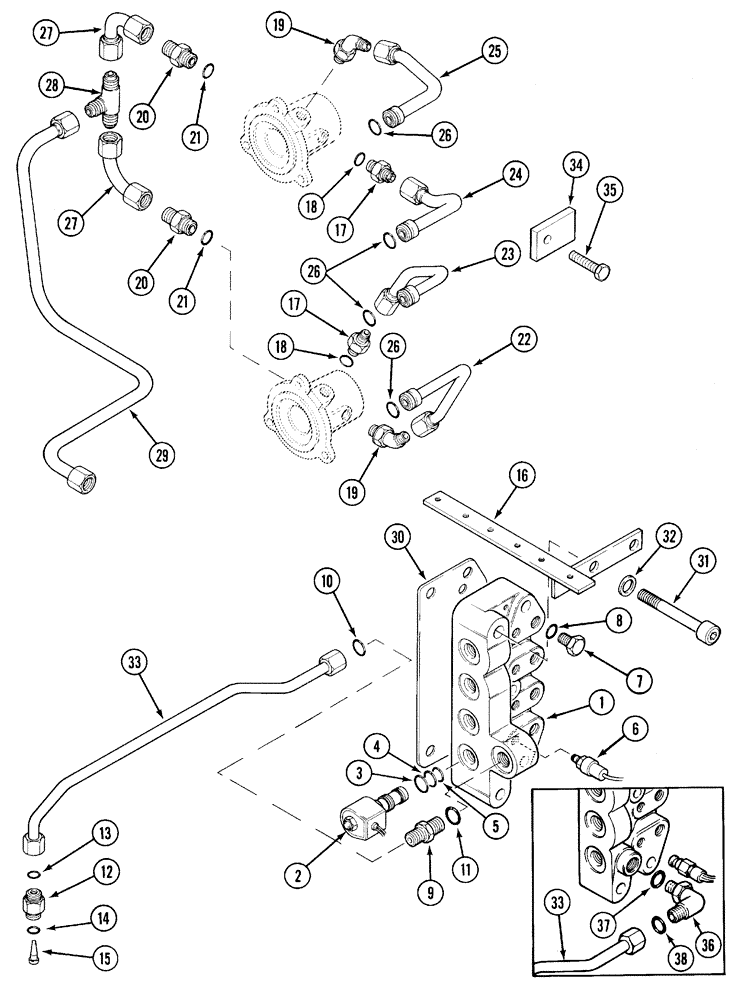

Запчасти Case IH 5240 (6-056) - TRANSMISSION, POWER SHIFT MANIFOLD AND TUBES (06) - POWER TRAIN

NSS

NOT SOLD SEPARAT

MANIFOLD - assembly, Power Shift, Includes Ref: 1-8

1шт.

1

1986629C1

BODY

- power shift valve

1шт.

2

118872A1

VALVE

SOLENOID - Trans. control, Includes Ref: 3-5

4шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

5

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

-014, 70 Duro, .489" ID x .070" Thk

1шт.

6

144467A2

PRESSURE SWITCH

SWITCH - pressure

4шт.

7

9672438

PLUG,7/16" - 20 ORB

Incl. Ref: 8 Hex Hd, 7/16"-20 ORB

4шт.

8

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

9

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

CONNECTOR, HYD., (JJF1011200 - ), Includes Ref: 10, 11 13/16"-16 ORFS x 3/4"-16 ORB

1шт.

10

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

12

1980118C1

VALVE

- check, Includes Ref: 13, 14

1шт.

13

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

15

1980065C2

SCREEN

- filter

1шт.

16

1534602C1

SUPPORT ASSY.

BRACKET - oil cooler pipes

1шт.

17

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, flared, 9/16-18 flare x 3/8 tube, Incl. Ref: 18

2шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

19

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, adjustable, 3/8 tube x 9/16-18 flare

2шт.

20

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, flared, 3/4-16 flare x 1/2 tube, Incl. Ref 21

2шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

22

1995049C1

PIPE

TUBE - assembly, clutch 4 actuating

1шт.

23

1995045C1

PIPE

TUBE - assembly, clutch 2 actuating

1шт.

24

1995043C1

PIPE

TUBE - assembly, clutch 1 actuating

1шт.

25

1995047C1

PIPE

TUBE - assembly, clutch 3 actuating

1шт.

26

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

4шт.

27

A175947

TUBE

- assembly

2шт.

28

218-594

TEE,3/4"-16, 37 Degree

- 3/4-16 inch flare branch x flare x flare

1шт.

29

A186421

TUBE

- assembly lube

1шт.

30

139884A1

GASKET

- powershift manifold

1шт.

31

861-10070

HEX SOC SCREW,M10 x 70mm, Cl 12.9

BOLT - hex socket, 10 - 1.5 x 70 mm, Class 12.9

5шт.

32

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

5шт.

33

1533663C2

PIPE

- compensator to power shift manifold (JJF1011200 - )

1шт.

33

T104472

PIPE

- compensator to power shift manifold ( - JJF1011199)

1шт.

34

1997126C1

RETAINER

- tube

2шт.

35

628-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

2шт.

36

201-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

- 90°, adjustable, 13/16-16 face x 3/4-16 boss, Incl. Ref. 37, 38

1шт.

37

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

38

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
