(5-042) - WHEELS, FRONT, ADJUSTABLE

Запчасти Case IH 5230 (5-042) - WHEELS, FRONT, ADJUSTABLE (05) - STEERING

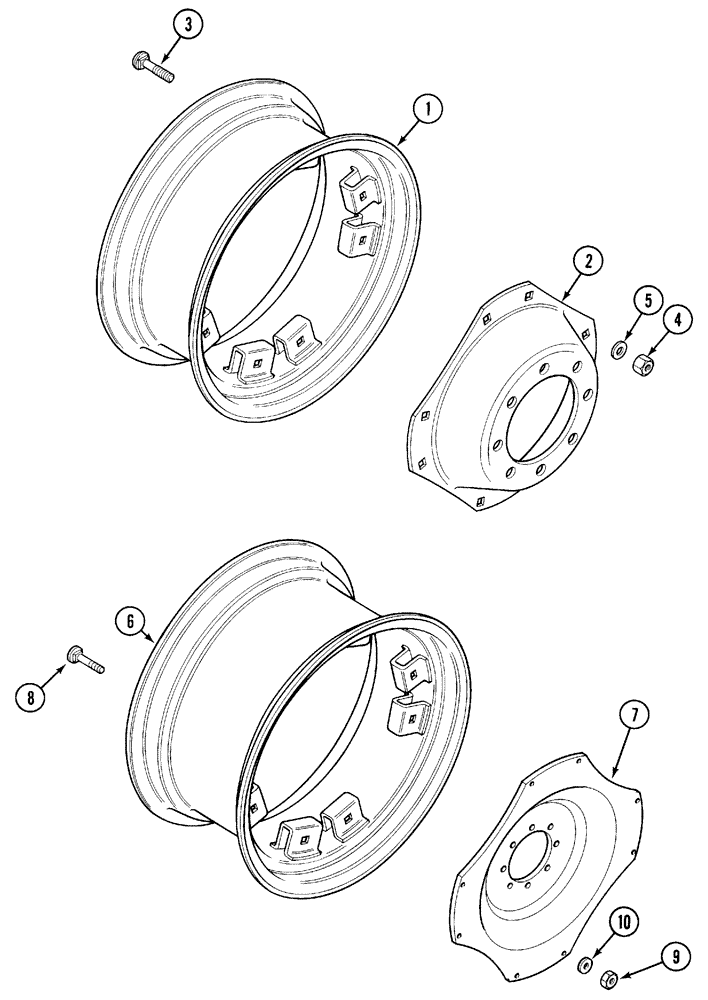

Схема запчастей Case IH 5230 - (5-042) - WHEELS, FRONT, ADJUSTABLE (05) - STEERING
6
1
9
2
8
7
4
10
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

WHEEL - W10 x 24 wheel, (For 11.2-24 6PR and 12.4-24 6PR Tires), Includes Ref: 1-3

2шт.

1

1531577C2

RIM

- adjustable, W10 x 24

2шт.

2

1533668C2

DISC

- wheel

2шт.

3

1335133C1

PLOW BOLT,Plow, M16 x 2 x 74mm, Cl 10.9

BOLT - carriage, 16 mm - 2.00 x 74 mm

16шт.

4

1335134C1

NUT

- hex, 16 mm - 2.00

16шт.

5

1335135C1

WASHER

- flat, 17 x 33 x 5 mm

16шт.

NSS

NOT SOLD SEPARAT

WHEEL - W12 x 24 wheel, (For 13.6-24 6PR/14.9-24 6PR\\8PR Tires), Includes Ref: 1, 2

2шт.

1

245717A1

RIM

- wheel

2шт.

2

245740A1

DISC, WHEEL

DISC - wheel

2шт.

NSS

NOT SOLD SEPARAT

WHEEL - W13 x 24 wheel,(For 14.9-24 6PR Tires), Includes Ref: 1, 2

2шт.

1

187315A1

RIM

WHEEL - W13 x 24 8 Lug

2шт.

2

187316A1

DISC

- wheel

2шт.

NSS

NOT SOLD SEPARAT

WHEEL - W12 x 24 wheel, (For 13.6-24 6PR/14.9-24 6PR\\8PR Tires), Includes Ref: 1, 2

2шт.

1

1531579C1

RIM

- wheel

2шт.

2

1533669C2

DISC, WHEEL

DISC - wheel

2шт.

NSS

NOT SOLD SEPARAT

WHEEL - W12 x 28 wheel, (For 13.6-28 6PR Tires), Includes Ref: 1, 2

2шт.

1

1531667C1

RIM

- wheel

2шт.

2

1533674C2

DISC

- wheel

2шт.

NSS

NOT SOLD SEPARAT

WHEEL - W10 x 28 wheel, (For 12.4-28 6PR Tires), Includes Ref: 1, 2

2шт.

1

1531665C2

RIM

- wheel

2шт.

2

1533673C2

DISC

- wheel

2шт.

NSS

NOT SOLD SEPARAT

WHEEL - W10 x 46 wheel, (For 12.4-46 6PR Tires), Includes Ref: 1, 2

2шт.

1

1534469C1

RIM

- wheel

2шт.

2

1534470C1

DISC, WHEEL

DISC - wheel

2шт.

NSS

NOT SOLD SEPARAT

WHEEL - W11 x 36 wheel, (For 13.6-36 8PR Tires), Includes Ref: 6, 7, 8

2шт.

6

1533680C1

RIM

- wheel

2шт.

7

1533803C2

DISC

- wheel

2шт.

8

1335133C1

PLOW BOLT,Plow, M16 x 2 x 74mm, Cl 10.9

BOLT - carriage, 16 mm - 2.00 x 74 mm

16шт.

9

1335134C1

NUT

- hex, 16 mm - 2.00

16шт.

10

1335135C1

WASHER

- flat, 17 x 33 x 5 mm

16шт.

NSS

NOT SOLD SEPARAT

WHEEL - W10 x 42 wheel, (For 12.4-42 6PR Tires), Includes Ref: 6, 7, 8

2шт.

6

1957251C1

WHEEL

RIM - wheel

2шт.

7

1533804C1

DISC, WHEEL

DISC - wheel

2шт.

8

1335133C1

PLOW BOLT,Plow, M16 x 2 x 74mm, Cl 10.9

BOLT - carriage, 16 mm - 2.00 x 74 mm

16шт.

9

1335134C1

NUT

- hex, 16 mm - 2.00

16шт.

10

1335135C1

WASHER

- flat, 17 x 33 x 5 mm

16шт.
