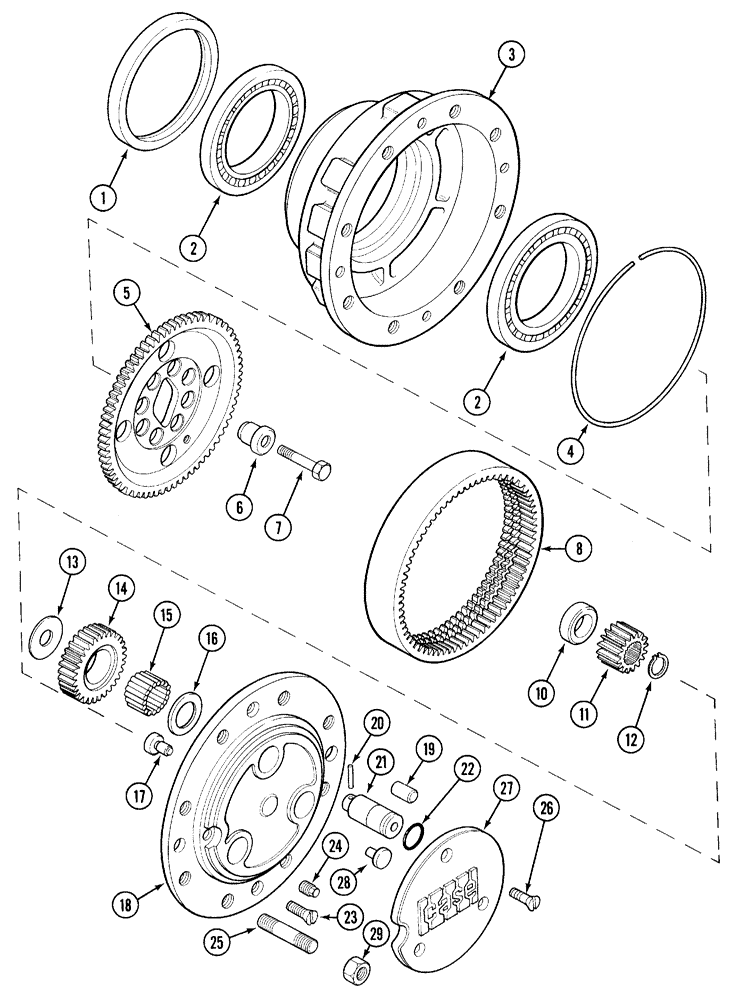

Запчасти Case IH 5230 (5-038) - MFD FRONT AXLE PLANETARIES AND HUB (05) - STEERING

1

1349265C1

OIL SEAL,149mm ID x 176mm OD x 16mm Thk

- oil, 149 x 176 x 16

2шт.

2

K395101

TAPERED BEARING,109.5mm ID x 126mm x 21.4mm L

BEARING - taper roller

4шт.

3

K395123

HUB

- front

2шт.

4

H437679

RING, SNAP

RING - locking (S2 Axle C7P/196 - /S4 Axle C9P/118 - )

4шт.

4

K395095

CIRCLIP

RING - snap (S2 Axle - C7P/195/ S4 Axle - C9P/117)

4шт.

5

K395126

WHEEL

GEAR - support (S2 Axle - C7P/195/ S4 Axle - C9P/117)

2шт.

5

H437678

RING, FLYWHEEL

GEAR - support (S2 Axle C7P/196 - /S4 Axle C9P/118 - )

2шт.

6

107071A1

BUSHING

- Centering, 20 mm OD

12шт.

6

107072A1

CENTERING RING

BUSHING - centering, 24 mm OD

4шт.

7

K395131

BOLT,Hex, M14 x 1.5 x 65mm, Cl 10.9

BOLT, , Self-locking Hex, M14 x 65, Cl 10.9

12шт.

8

H437677

GEAR, RING

GEAR - internal-tooth

2шт.

8

REF

INSTRUCTION

GEAR - crown (S2 Axle - C7P/195/ S4 Axle - C9P/117)

2шт.

Ref. # 8 The difference is one is a crown gear with 2 snap ring grooves in it. If he has that design it is no longer available and he needs the new design which is found on the sub of part k395113. If he does not have that design 2 snap ring grooves then he can order the h437677. Per Denise Matrisch

1шт.

10

K395121

SPACER

- half-shaft, Serial Range: -JJE1021200

2шт.

K395115

WASHER

- thrust (Not shown) (Only Used on Early Models), Serial Range: -JJE1021200

1шт.

10

107073A1

WASHER,30mm ID x 49mm OD x 15mm H

SPACER - half-shaft, Start Serial: JJE1021200

2шт.

11

K395114

GEAR

- sun

2шт.

12

K261897

RING, SNAP

RING - snap

2шт.

13

N13512

WASHER,23mm ID x 55mm OD x 1.5mm Thk

- thrust

6шт.

14

N13513

GEAR,29 T

Planetary 29 T

6шт.

15

119686A1

10 NEEDLE BRG KIT

NEEDLE - bearing

18шт.

16

K395091

THRUST WASHER

WASHER, THRUST

6шт.

17

K395093

HEADED PIN,12mm OD x 15mm L

BUTTON - thrust

2шт.

18

81888C1

COVER

- planetary

2шт.

19

5194168

ROLL PIN,M15 x 35 L

PIN, ROLL, , Hub cover M15 x 35 L

4шт.

19

K395094

DOWEL,M18 x 36

Hub cover M18 x 36

4шт.

20

110677A1

SPLIT PIN/SAFETY PIN

PIN - roll, planetary

6шт.

21

N13517

PIN,34.4mm OD x 80mm L

SHAFT - planetary

6шт.

22

238-5216

O-RING,0.139" Thk x 1.109" ID, -216, Cl 5, 75 Duro

6шт.

23

K395029

SCREW

- 12 x 30 mm

4шт.

24

A156873

PLUG, DRAIN,M22 x 1.5

2шт.

25

1349196C1

STUD

BOLT - stud

12шт.

25

1349195C1

STUD

BOLT - stud, with collar

4шт.

26

905876R1

HEX SOC SCREW,Flat Hd, CSK, M8 x 20mm, Cl 10.9

6шт.

27

K395135

COVER

PLATE - hub cover

2шт.

28

112624A1

PLASTIC PLUG

PLUG - plastic, 8 mm

6шт.

29

98783C1

WHEEL NUT,Wheel, Flg, M20 x 1.5

12шт.
