Запчасти Case IH 5230 (5-026) - MFD FRONT AXLE HOUSING (05) - STEERING

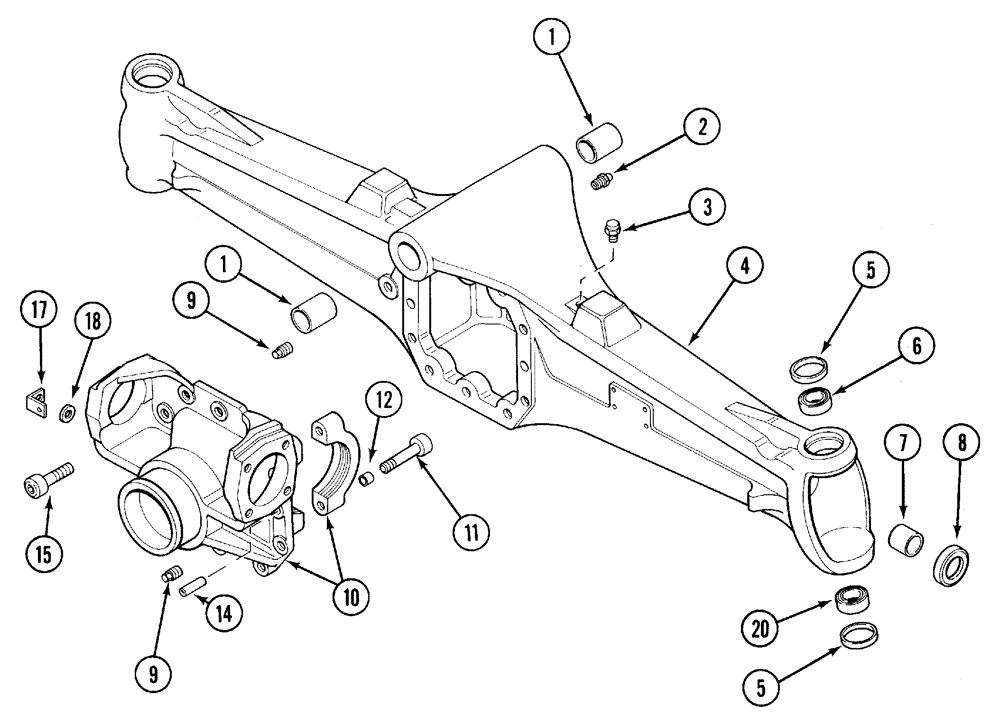

Схема запчастей Case IH 5230 - (5-026) - MFD FRONT AXLE HOUSING (05) - STEERING
18
5
12
4
17
15
9
7
3
10
14
1
5
1
11
2
8
20
6
9

Артикул

Название

Примечание

Количество

1

81852C1

BUSHING

- pivot

2шт.

2

933731R91

LUBE NIPPLE,45 Degree, M10 x 1

FITTING - grease

1шт.

3

1966149C2

BREATHER

- axle housing

1шт.

4

81854C1

HOUSING

- axle

1шт.

5

K395039

SEAL

- bearing

4шт.

6

N14372

BUSHING

BEARING - roller, 35MM I.D., 52MM O.D., 16.5MM WIDTH.

4шт.

If bearing is different from OEM, see parts quality comments on the following parts: K395040 & N14373.

1шт.

7

D142950

BUSHING

-

2шт.

8

N8897

OIL SEAL

SEAL - oil

2шт.

9

A156873

PLUG, DRAIN,M22 x 1.5

2шт.

107376A1

SUPPORT ASSY.

SUPPORT - assembly, Includes: Ref. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

SUPPORT - center

1шт.

11

S301065

BOLT,Hex Flg, M14 x 75, 12.9

BOLT, , Special Hex Flg, M14 x 75, 12.9

4шт.

12

1966136C1

BUSHING,15mm ID x 18mm OD x 12mm L

- centering

4шт.

14

1966138C1

DOWEL

PIN - dowel

2шт.

15

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 35 mm

10шт.

For Early Production supply 81856C1 Bolt and K395021 Washer.

1шт.

17

81857C1

PLATE

-

1шт.

18

K965373

WASHER

-

1шт.

20

N14373

SPHERICAL BEARING,28mm ID x 52mm OD x 16mm W

BEARING - roller, 28MM I.D., 52MM O.D., 16MM WIDTH.

2шт.

Выбрано товаров: 20
