Запчасти Case IH 5230 (4-004) - ELECTRICAL HARNESS, TRANSMISSION AND CONNECTIONS, JJF1030000- (04) - ELECTRICAL SYSTEMS

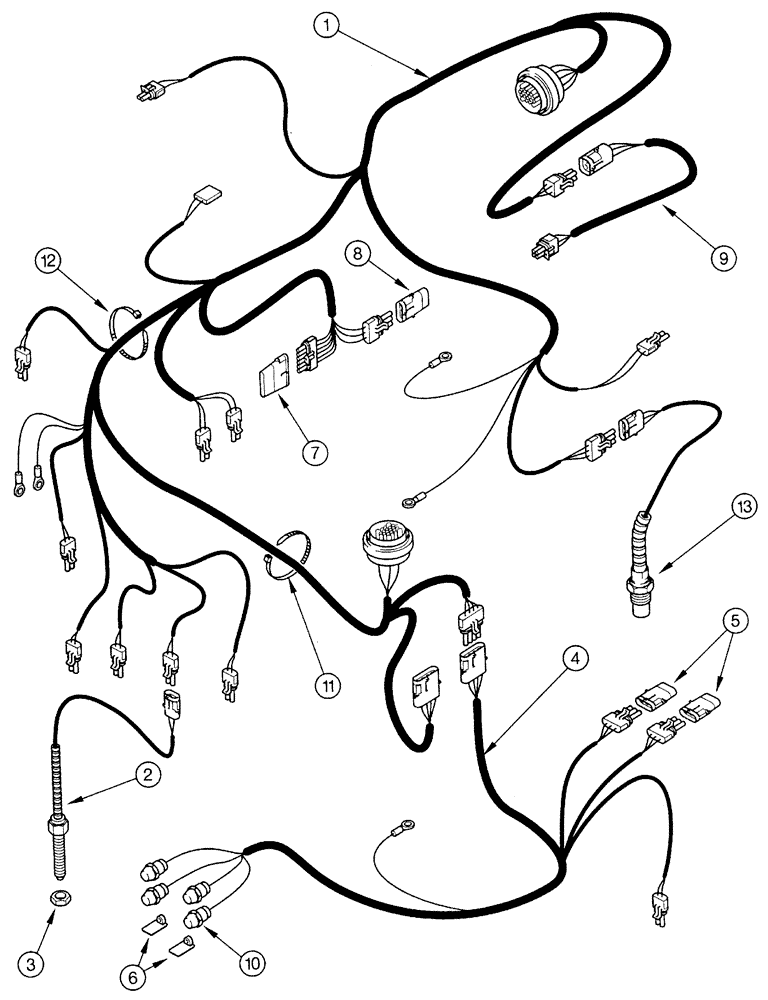

Схема запчастей Case IH 5230 - (4-004) - ELECTRICAL HARNESS, TRANSMISSION AND CONNECTIONS, JJF1030000- (04) - ELECTRICAL SYSTEMS
13
5
11
10
2
6
12
9
8
3
7
1
4

Артикул

Название

Примечание

Количество

1

122494A2

HARNESS

- transmission

1шт.

2

92338C1

TRANSMITTER

TRANSDUCER - ground speed

1шт.

3

825-11418

NUT,M18 x 1.5, Cl 8

- hex, 18 mm - 1.5

1шт.

4

1987622C2

HARNESS

- SHR remote control, Includes Ref: 5, 6

1шт.

5

A187826

DIODE

MODULE - diode

2шт.

6

T103903

GASKET

GASKET - holder, hitch switch

2шт.

7

A187813

DIODE

- remotes solenoid

1шт.

8

A187826

DIODE

DIODE - remotes solenoid

1шт.

9

1983245C1

MODULE

- module

1шт.

10

REF

INSTRUCTION

SWITCH - hitch controls, (See Figure 9-24)

4шт.

11

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.

12

3148767R2

COLLAR CLAMP

STRAP - cable

22шт.

13

1983380C1

SWITCH

- low temperature

1шт.

Выбрано товаров: 13
