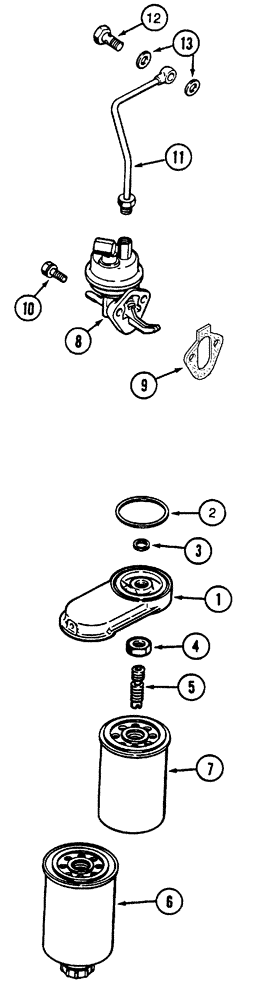

Запчасти Case IH 5230 (3-016) - FUEL FILTER, 6T-590 ENGINE, TURBOCHARGED, 5140/5240 AND 5250 TRACTOR (03) - FUEL SYSTEM

1

84140384

FILTER HEAD

HEAD - fuel filter

1шт.

2

84150002

SEALING RING

O-RING - sealing, 64 mm ID

1шт.

3

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING - sealing, 14 mm ID

1шт.

4

J903293

JAM NUT

M16 x 1.5 Nut

1шт.

5

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

- fuel filter

1шт.

A77470

SEPARATOR

KIT - fuel filter

1шт.

6

J925274

FILTER, FUEL

FILTER - fuel, primary

1шт.

7

J903640

FILTER, FUEL

FILTER - fuel secondary

1шт.

8

J928143

PUMP

- fuel lift

1шт.

9

J931059

GASKET

- Lift Pump, mounting

1шт.

10

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 20 mm, Lift pump

2шт.

11

J907582

FUEL TUBE,8 mm OD x 250.6 mm L

TUBE - fuel supply, lift pump

1шт.

12

J903035

BANJO BOLT

BOLT - banjo hex, 12 - 1.5 x 24 mm, lift pump

1шт.

12a

J905860

BANJO BOLT

BOLT ASSEMBLY - banjo hex, special (If used), lift pump

1шт.

13

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm, lift pump

2шт.
