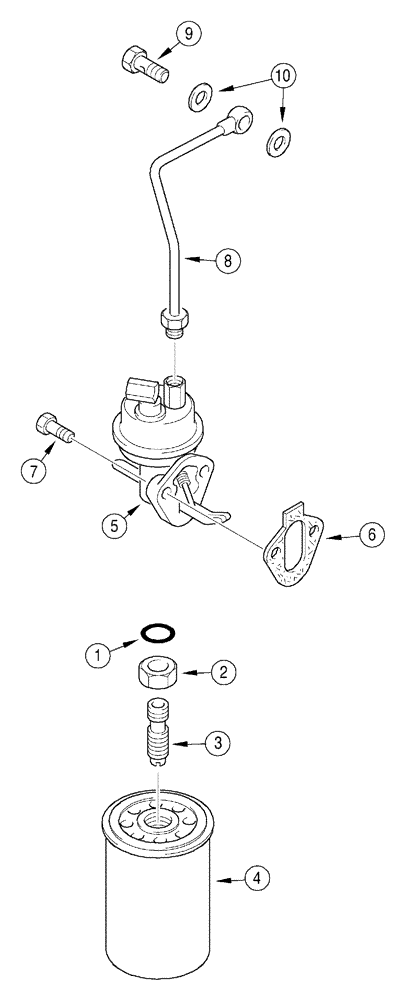

Запчасти Case IH 5230 (3-014) - FUEL FILTER , 6-590 ENGINE, NATURAL ASPIRATED, 5130 / 5230 TRACTORS (03) - FUEL SYSTEM

1

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING - sealing, 14 mm ID

1шт.

2

J903293

JAM NUT

- hex, special, 16 mm - 2.0

1шт.

3

J903845

BANJO BOLT

ADAPTER - fuel filter

1шт.

4

J843760

FILTER

ELEMENT - fuel filter, See Figure 3-016 for Early Production Dual Filters

1шт.

5

J928143

PUMP

- fuel lift

1шт.

6

J931059

GASKET

- Lift Pump, mounting

1шт.

7

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 20 mm, Lift pump

2шт.

8

J907582

FUEL TUBE,8 mm OD x 250.6 mm L

TUBE - fuel supply, lift pump

1шт.

9

J903035

BANJO BOLT

BOLT - banjo hex, 12 - 1.5 x 24 mm, lift pump

1шт.

10

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm, lift pump

2шт.
