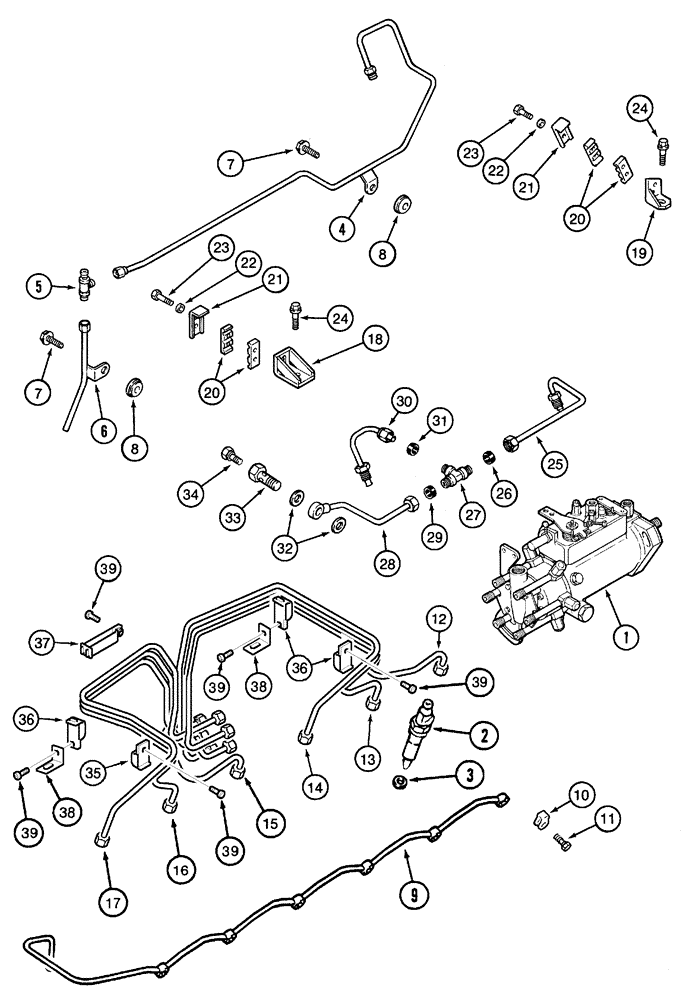

Запчасти Case IH 5230 (3-010) - FUEL INJECTION SYSTEM, 6-590 ENGINE, NATURAL ASPIRATED, 5130/5230 TRACTOR (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection, See Figure: 3-18

1шт.

2

REF

INSTRUCTION

NOZZLE ASSEMBLY - fuel injector, See Figure(s): 3-22,24

6шт.

3

REF

INSTRUCTION

SEAL - injector, See Figure(s) 3-22, 24

6шт.

4

J920891

FUEL TUBE,4.76 mm OD x 909.3 mm L

TUBE - fuel drain

1шт.

5

222-121

TEE,3/16", Flex Tubing

3/16", Flex Tubing

1шт.

6

J905692

FUEL TUBE

TUBE - fuel return

1шт.

7

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm

2шт.

8

J900267

SEAL

- cover bolt

2шт.

9

J909696

TUBE

TUBE - manifold, fuel drain

1шт.

10

J903380

SEAL

- connector

6шт.

11

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

6шт.

12

J914796

FUEL TUBE

TUBE ASSEMBLY - injector, No. 1 cylinder

1шт.

12

J924526

PIPE

TUBE ASSEMBLY - injector, No. 1 cylinder (High Torque)

1шт.

13

J914798

FUEL TUBE

TUBE ASSEMBLY - injector, No. 2 cylinder

1шт.

13

J924527

PIPE

TUBE ASSEMBLY - injector, No. 2 cylinder (High Torque)

1шт.

14

J914800

FUEL TUBE

TUBE ASSEMBLY - injector, No. 3 cylinder

1шт.

14

J924528

PIPE

TUBE ASSEMBLY - injector, No. 3 cylinder (High Torque)

1шт.

15

J914802

FUEL TUBE

TUBE ASSEMBLY - injector, No. 4 cylinder

1шт.

15

J924529

PIPE

TUBE ASSEMBLY - injector, No. 4 cylinder (High Torque)

1шт.

16

J914804

FUEL TUBE

TUBE ASSEMBLY - injector, No. 5 cylinder

1шт.

16

J924530

PIPE

TUBE ASSEMBLY - injector, No. 5 cylinder (High Torque)

1шт.

17

J914806

FUEL TUBE

TUBE ASSEMBLY - injector, No. 6 cylinder

1шт.

17

J924531

PIPE

TUBE ASSEMBLY - injector, No. 6 cylinder (High Torque)

1шт.

18

J917777

BRACE

- fuel tube

2шт.

19

J917778

BRACE

- fuel tube

1шт.

20

J917747

CLAMP

- fuel tube

6шт.

21

J904519

SUPPORT

BRACE - tube retaining

3шт.

21

J924524

CLAMP

BRACE - clamp, High Torque fuel tubes (Tubes 4,5 and 6)

1шт.

21

J924524

CLAMP

BRACE - clamp, High Torque fuel tubes (Tubes 1,2 and 3)

2шт.

22

J903723

WASHER

- flat, 5 mm

6шт.

23

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

6шт.

24

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Bracket retaining Hex Flg Hd, M8 x 1.25 x 25

2шт.

25

J905363

FUEL TUBE,8 mm OD x 256.8 mm L

TUBE - fuel supply, tee to front of injection pump

1шт.

26

222-103

SLEEVE,5/16" Tube

OD 5/16" Tube

1шт.

27

J905353

TEE

- 5/16 inch OD

1шт.

28

J905364

FUEL TUBE

TUBE ASSEMBLY - fuel supply, Serial Range: filter-tee

1шт.

29

222-103

SLEEVE,5/16" Tube

OD 5/16" Tube

1шт.

30

J905375

FUEL TUBE,8 mm OD x 137.6 mm L

TUBE ASSEMBLY - fuel supply, tee to rear of injection pump

1шт.

31

222-103

SLEEVE,5/16" Tube

OD 5/16" Tube

1шт.

32

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm

2шт.

J905860

BANJO BOLT

BOLT ASSEMBLY - banjo hex, special

1шт.

33

NSS

NOT SOLD SEPARAT

BOLT - hex, banjo connector

1шт.

34

NSS

NOT SOLD SEPARAT

SCREW - hex special, vent

1шт.

35

J924525

CLAMP

- supply tubes, High Torque (Tubes 5 and 6)

1шт.

36

J924524

CLAMP

BRACE - clamp, High Torque fuel tubes (Tubes 4,5 and 6)

1шт.

37

J924522

SUPPORT

BRACKET - suply tubes, High Torque

2шт.

38

J924523

CLAMP

- supply tubes, High Torque (Tubes 1,2 and 3)

1шт.

39

845-6012

BOLT,Hvy Hex, M6 x 12mm, Cl 8.8

- heavy hex flange, 6 x 12 mm

5шт.
