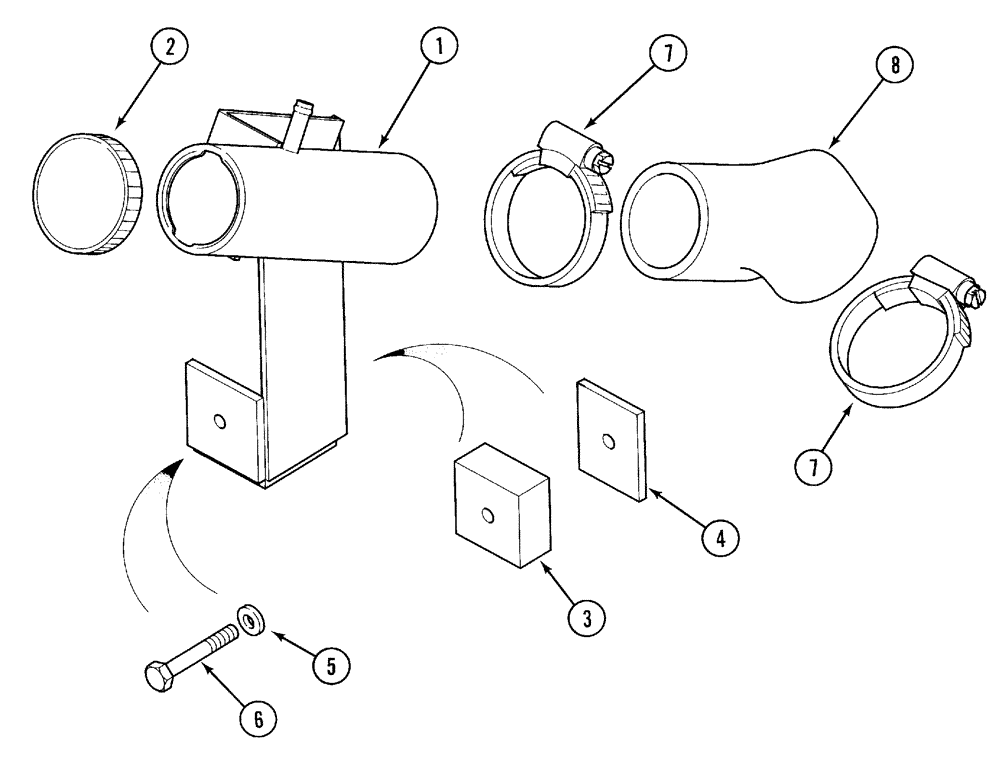

Запчасти Case IH 5230 (3-006) - FUEL FILLER NECK (03) - FUEL SYSTEM

1

1533191C3

SUPPORT ASSY.

SUPPORT - filler hose

1шт.

2

3221253R1

PLUG

CAP - fuel filler

1шт.

3

1533189C1

BLOCK

RUBBER - block

1шт.

4

1533367C1

LARGE PLATE

BAR - assembly, mounting

1шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 16 x 1.6 mm

1шт.

6

614-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 50 mm

1шт.

7

3219245R1

CLAMP,M70-90, Worm

- hose

2шт.

8

1533365C2

HOSE

- rubber

1шт.
