Запчасти Case IH 5230 (2-070) - GASKET KITS, 6-590 AND 6T-590 ENGINE, VALVE GRIND KIT (02) - ENGINE

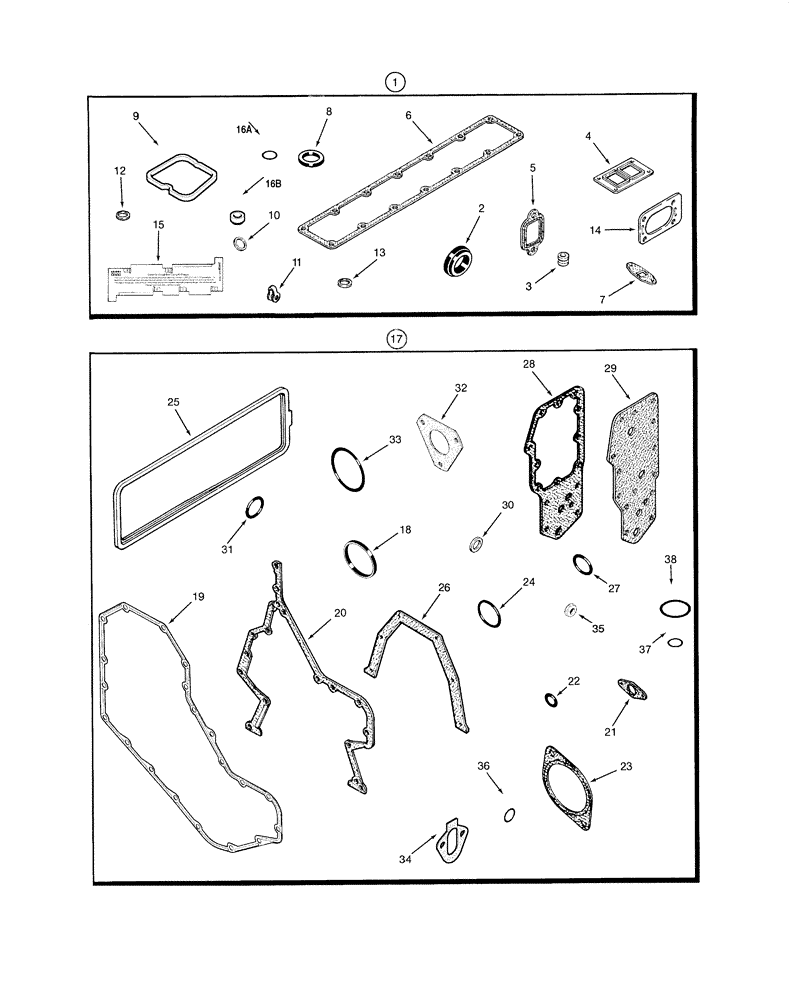

Схема запчастей Case IH 5230 - (2-070) - GASKET KITS, 6-590 AND 6T-590 ENGINE, VALVE GRIND KIT (02) - ENGINE
23
25
29
21
24
19
2
14
17
16b
16a
15
27
35
8
7
28
12
18
38
22
10
30
31
11
1
26
9
20
36
5
6
37
32
34
3
33
4
13

Артикул

Название

Примечание

Количество

1

A77859

GASKET KIT

KIT - gasket, valve grind, Includes: Ref. 1 - 16B

1шт.

When just the valve grind gasket kit is used, also order the required cylinder head gasket on figure 2-47. For Complete Engine Overhaul, Order (1) each of valve grind kit, cylinder block kit, oil pan kit, figure 2-45, front and rear crankshaft seal kits, figure 2-65 and required cylinder head gasket, item 2, figure 2-47.

1шт.

2

J923331

GASKET

- thermostat housing

1шт.

3

J901097

SEAL

- valve

12шт.

4

J901356

GASKET,0.5mm Thk

-, Serial Range: turbocharger-manifold

1шт.

5

J905443

MANIFOLD GASKET

- exhaust manifold

6шт.

6

J914029

GASKET

- mounting

1шт.

7

J928919

GASKET

- turbo oil drain

1шт.

8

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

- oil fill cap

1шт.

9

J929795

GASKET

SEAL - rocker arm cover

6шт.

10

J900808

SEAL

- injector nozzle, 9 mm injector tip

6шт.

11

J903380

SEAL

- connector

6шт.

12

J906659

SEAL

- injector nozzle, 7 mm injector tip

6шт.

13

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

-, Serial Range: body-nut

6шт.

14

J914856

GASKET,1.02mm Thk

- air crossover connection

1шт.

15

J823921

GAUGE

- cylinder head, bolt length

1шт.

16a

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt ( - Engine 52169253)

6шт.

16b

J928406

ISOLATOR

- noise (Engine 52169254 - )

6шт.

17

A77861

GASKET KIT

KIT - gasket engine block, Includes: Ref. 18 - 38, cylinder

1шт.

For Complete Engine Overhaul, Order (1) each of valve grind kit, cylinder block kit, oil pan kit, figure 2-44, front and rear crankshaft seal kits, figure 2-64 and required cylinder head gasket, item 2, figure 2-46.

1шт.

18

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- front access cover, cylinder block kit

1шт.

19

J914385

GASKET,1.02mm Thk

- front cover, cylinder block kit

1шт.

20

J916131

GASKET

- gear housing, cylinder block kit

1шт.

21

J905595

GASKET

- timing pin housing, cylinder block kit

1шт.

22

J913994

O-RING

- sealing, timing pin, cylinder block kit

1шт.

23

J919601

GASKET

- access cover plate, cylinder block kit

1шт.

24

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

Cylinder block kit -341, 70 Duro, 3.475" ID x .210" Thk

1шт.

25

J907617

GASKET

- tappet cover, cylinder block kit

1шт.

26

J928493

GASKET

- rear cover retainer, cylinder block kit

1шт.

27

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID, cylinder block kit

1шт.

28

J926760

GASKET

- oil cooler core, cylinder block kit

1шт.

29

J918257

GASKET

- filter head, cylinder block kit

1шт.

30

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- sealing, plug, cylinder block kit

1шт.

31

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - sealing, 38 mm ID, cylinder block kit

1шт.

32

J914389

GASKET

- pump mounting, cylinder block kit

1шт.

33

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - flywheel housing to block, cylinder kit

1шт.

34

J931059

GASKET

- Lift Pump, mounting, cylinder block kit

1шт.

35

J900267

SEAL

- cover bolt, cylinder block kit

6шт.

36

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

Cylinder block kit -212, 70 Duro, .859" ID x .139" Thk

1шт.

37

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING - sealing, 14 mm ID, cylinder block kit

1шт.

38

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

O-RING - sealing, 70 mm ID, cylinder block kit

1шт.

Выбрано товаров: 41
