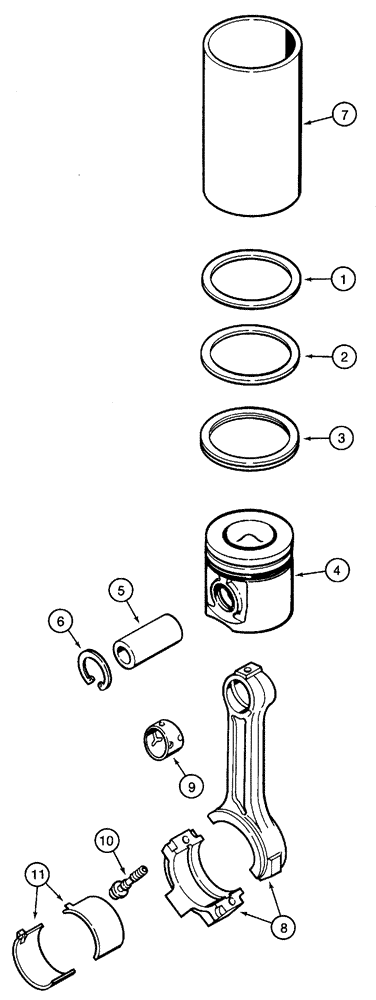

Запчасти Case IH 5230 (2-066) - PISTONS AND CONNECTING RODS, 6-590 ENGINE, NATURAL ASPIRATED, 5130/5230 TRACTOR (02) - ENGINE

A77410

PISTON

KIT - piston, standard, Includes: Ref. 1 - 6

6шт.

A77401

PISTON RING SET

KIT - ring, standard, Includes: Ref. 1 -3

1шт.

1

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder, standard (Stamped 6223)

1шт.

5

J901793

PISTON PIN

PIN - piston

1шт.

6

J901706

RING

- snap

2шт.

A77411

PISTON

KIT - piston, 0.5 mm oversize, Includes: Ref. 1 - 6

6шт.

A77463

PISTON RING SET

KIT - ring, 0.5 mm oversize, Includes: Ref. 1 -3

1шт.

1

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder, 0.5mm oversize (Stamped 6209)

1шт.

5

J901793

PISTON PIN

PIN - piston

1шт.

6

J901706

RING

- snap

2шт.

A77412

PISTON

KIT - piston, 1.0 mm oversize, Includes: Ref. 1 - 6

6шт.

A77464

PISTON RING SET

KIT - ring, 1.0 mm oversize, Includes: Ref. 1 -3

1шт.

1

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - engine, 1.0mm oversize (Stamped 6208)

1шт.

5

J901793

PISTON PIN

PIN - piston

1шт.

6

J901706

RING

- snap

2шт.

7

J904166

SLEEVE

LINER - piston, used only in engine block repair

1шт.

When liner is installed, use A77410 standard piston kit.

1шт.

JR925232

ROD

ASSEMBLY - connecting, (Remanufactured), component parts shown in this figure do not apply to this assembly

1шт.

J925232

ROD, CONNECTING

ROD ASSEMBLY - connecting, new, Includes: Ref. 8 - 10

6шт.

84145405R

REMAN-CONNECTING ROD

5130 (1/90-), 5230, Reman For New P/N J925232

6шт.

84145405C

CORE-ROD CONNECTING

Return Number

1шт.

8

NSS

NOT SOLD SEPARAT

ROD - connecting, Includes both halves

1шт.

9

J901085

BUSHING

- connecting rod

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

BOLT - hex, special, connecting rod

2шт.

11

A77465

BEARING SET

KIT - bearing, upper and lower set, standard, connecting rod

6шт.

11

A77466

BEARING SET

KIT - bearing, upper and lower set, 0.25 mm undersize, connecting rod

6шт.

11

A77467

BEARING LINER

KIT - bearing, upper and lower set, 0.50 mm undersize, connecting rod

6шт.

11

A77468

BEARING SET

KIT - bearing, upper and lower set, 0.75 mm undersize, connecting rod

6шт.

11

A77469

BEARING SET

KIT - bearing, upper and lower set, 1.00 mm undersize, connecting rod

6шт.
