Запчасти Case IH 5230 (2-048) - CYLINDER HEAD AND VALVE MECHANISM, 6-590 ENGINE, 6T-590 ENGINE (02) - ENGINE

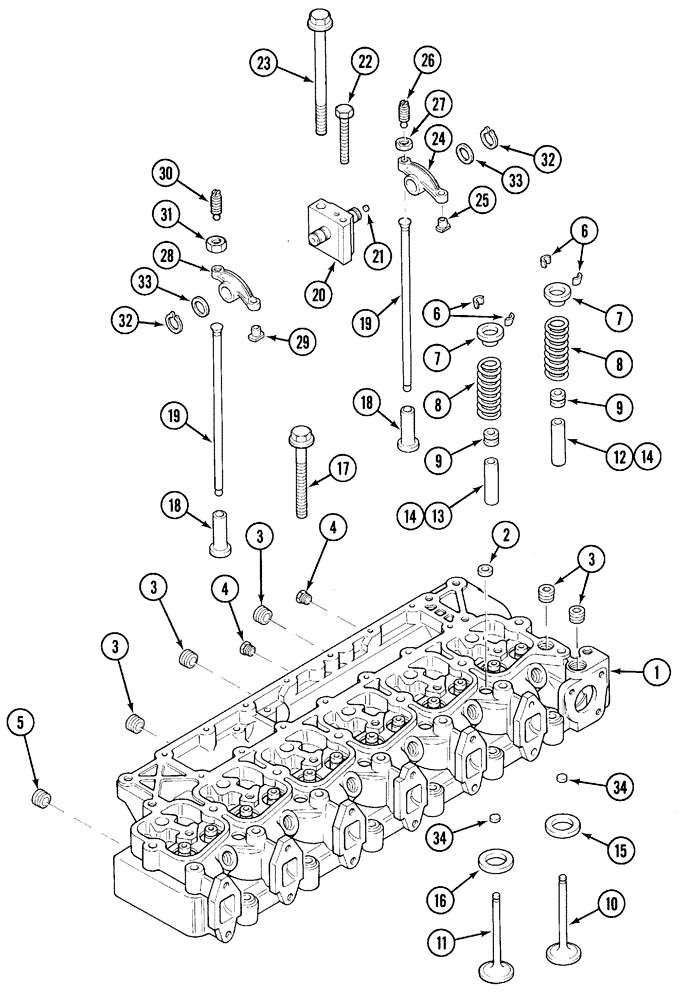

Схема запчастей Case IH 5230 - (2-048) - CYLINDER HEAD AND VALVE MECHANISM, 6-590 ENGINE, 6T-590 ENGINE (02) - ENGINE
34
17
18
3
29
15
22
14
9
19
34
8
14
25
6
4
16
20
9
7
10
26
3
31
2
6
28
27
23
1
11
5
3
13
32
33
18
4
7
3
19
24
12
8
32
30
33
21

Артикул

Название

Примечание

Количество

J929735

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, 7 mm injector with valves, Includes: Ref. 1 - 11

1шт.

1

J917287

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, 7 mm injector, without valves

1шт.

1

87430149

REMAN-CYLINDER HEAD

Cylinder Head

1шт.

1

87430150

CORE-CYLINDER HEAD

Return Part Number

1шт.

2

A77783

PLUG

PLUG - expansion, 21 mm OD

5шт.

3

A77429

PLUG

PLUG - hex socket, 1/2 inch PT

5шт.

4

J906619

PLUG,1/8" - 27

PLUG - hex, 1/8 inch PT

2шт.

5

A77505

PLUG

PLUG - hex socket, 3/4 inch PT

1шт.

6

J900250

SCREW

KEEPER - valve

24шт.

7

J900299

RETAINER

RETAINER - valve spring

12шт.

8

J926700

VALVE SPRING

SPRING - valve

12шт.

9

J901097

SEAL

SEAL - valve

12шт.

10

J920867

VALVE

VALVE - intake

6шт.

11

J920868

VALVE

VALVE - exhaust

6шт.

12

J904408

GUIDE

GUIDE - valve, intake, semi finished only, 11 mm OD

6шт.

13

J904409

GUIDE

GUIDE - valve, exhaust, semi finished only, 11 mm OD

6шт.

14

J906206

GUIDE

GUIDE - valve, intake and exhaust, semi finished only, 14 mm OD

12шт.

15

J906854

SEAT, VALVE

SEAT - insert, intake valve, service repair only

6шт.

16

J904105

SEAT, VALVE

SEAT - insert, exhaust valve, service repair only

6шт.

17

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

BOLT, SPECIAL - cylinder head, 70 mm long

6шт.

17

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

SCREW - cylinder head, 120 mm long

14шт.

18

J931623

TAPPET

TAPPET - valve

12шт.

19

J923262

PUSH ROD

ROD - push, rocker arm

12шт.

20

J910814

SUPPORT

SUPPORT AND SHAFT ASSEMBLY - rocker arm, Includes: Ref. 21

6шт.

21

J907555

PLUG

PLUG - rocker arm shaft, 1/4-18 PT

1шт.

22

814-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

BOLT, Hex, M8 x 75, 8.8

6шт.

23

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

BOLT, SPECIAL - rocker arm and cylinder head, 180 mm long

6шт.

24

J910811

ROCKER

ARM ASSEMBLY - rocker, intake, Includes: Ref. 25 - 27

6шт.

25

NSS

NOT SOLD SEPARAT

INSERT - arm

1шт.

26

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set, adjusting, special

1шт.

27

425-116

NUT,3/8" - 24, Gr 5

NUT - hex, 3/8 inch NF

1шт.

28

J910810

ROCKER

ARM ASSEMBLY - rocker, exhaust, Includes: Ref. 29 - 31

6шт.

29

NSS

NOT SOLD SEPARAT

INSERT - arm

1шт.

30

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set, adjusting, special

1шт.

31

425-116

NUT,3/8" - 24, Gr 5

NUT - hex, 3/8 inch NF

1шт.

32

J900242

SNAP RING

RING - retaining, rocker arm

12шт.

33

J900245

WASHER

WASHER - thrust, rocker arm

12шт.

34

J280911

WEAR PAD

PAD - wear, service repair only for valve stem tip

1шт.

Выбрано товаров: 38
