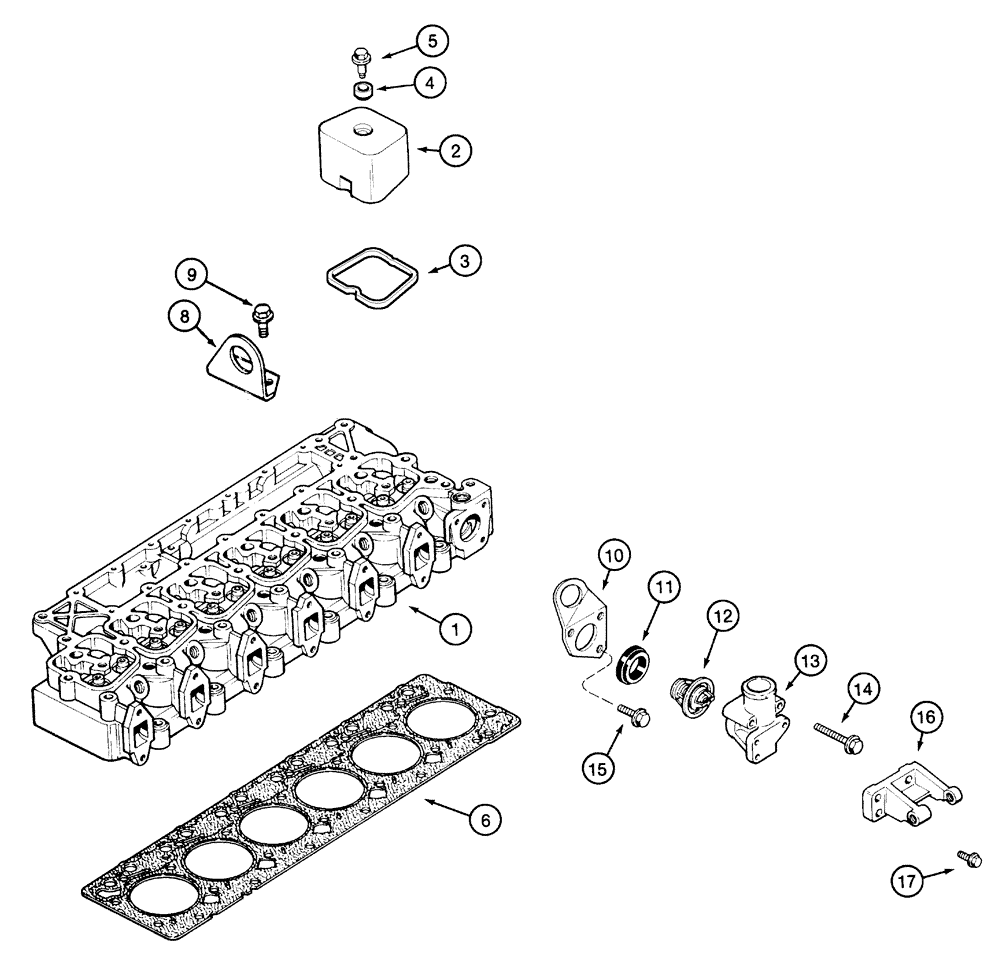

Запчасти Case IH 5230 (2-046) - CYLINDER HEAD AND COVERS, 6-590 ENGINE, 6T-590 ENGINE (02) - ENGINE

1

REF

INSTRUCTION

HEAD - cylinder, See Figure 2-48

1шт.

2

J928404

COVER

- rocker

6шт.

3

J930906

GASKET

- rocker arm cover

6шт.

4

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt ( - Engine 52169253)

6шт.

4

J928406

ISOLATOR

- noise (Engine 52169254 - )

6шт.

5

J907049

BOLT,Hex

- hex flange, special, 8 - 1.25 x 21.25 mm

6шт.

6

J283335

GASKET,2.32mm Thk

- cylinder head, standard

1шт.

6

J283000

GASKET

- cylinder head, 1 notches, 0.25 mm oversize

1шт.

6

J283002

GASKET

- cylinder head, 2 notches, 0.50 mm oversize

1шт.

8

J917599

SUPPORT

BRACKET - lifting (5140/5240 tractor only)

1шт.

9

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 25 mm, Class 10.9 (51/5240 only)

2шт.

10

J903757

BRACKET

- lifting, front, thermostat and housing

1шт.

A77736

THERMOSTAT

KIT - coolant thermostat, Includes: Ref. 11, 12, housing

1шт.

11

J923331

GASKET

- thermostat housing

1шт.

12

NSS

NOT SOLD SEPARAT

THERMOSTAT - water, housing

1шт.

13

J914409

HOUSING

- thermostat

1шт.

14

J926972

FLANGE BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

BOLT - hex flange head, 8 x 70 mm, thermostat and housing

2шт.

15

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 35 mm, Thermostat and housing

1шт.

16

J923387

SUPPORT

- alternator mounting, thermostat and housing

1шт.

17

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm, Thermostat and housing

3шт.
