Запчасти Case IH 5230 (2-042) - OIL FILTER AND COOLER, 6-590 ENGINE, 6T-590 ENGINE (02) - ENGINE

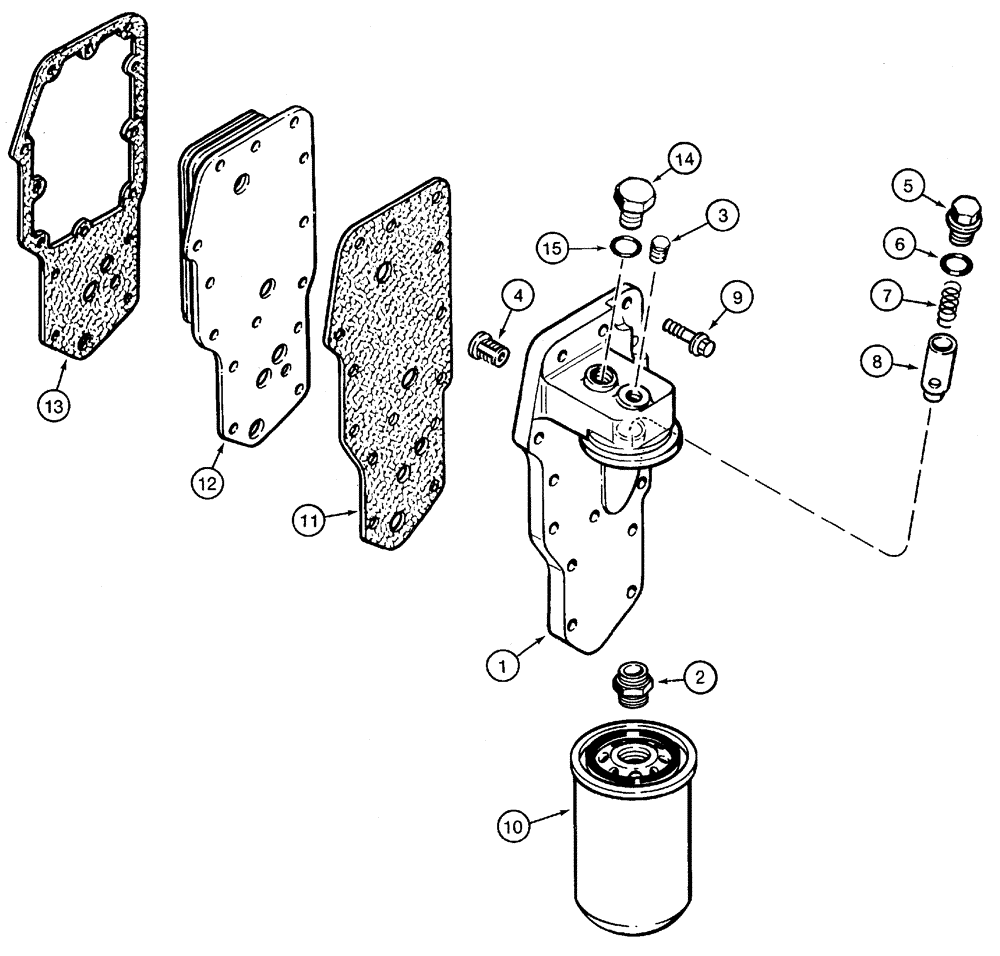

Схема запчастей Case IH 5230 - (2-042) - OIL FILTER AND COOLER, 6-590 ENGINE, 6T-590 ENGINE (02) - ENGINE
10
5
4
1
15
11
2
9
13
3
7
14
12
6
8

Артикул

Название

Примечание

Количество

J918954

HEAD

ASSEMBLY - oil filter and cooler, Includes Ref: 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - oil filter and cooler

1шт.

2

J909355

ADAPTER

- filter head

1шт.

3

J906619

PLUG,1/8" - 27

- hex, 1/8 inch PT

1шт.

4

J902338

VALVE, PRESSURE RELI

VALVE - relief, pressure

1шт.

5

J915787

PLUG

- threaded

1шт.

6

J929457

O-RING

- sealing

1шт.

7

J918427

SPRING

- compression, 54 mm free length, 16-1/2 coils

1шт.

8

J918428

PLUNGER

- regulator, pressure

1шт.

9

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 35 mm

14шт.

10

J908615

FILTER

- engine oil, cartridge

1шт.

11

J918257

GASKET

- filter head ( - Engine 52188833)

1шт.

12

J921558

COOLER

CORE - cooler, oil ( - Engine 52188833)

1шт.

13

J926760

GASKET

- oil cooler core

1шт.

14

J919686

PLUG

ASSEMBLY - hex, 12 mm threaded (51/5230 engine only), Includes Ref: 15

1шт.

15

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

Выбрано товаров: 16
