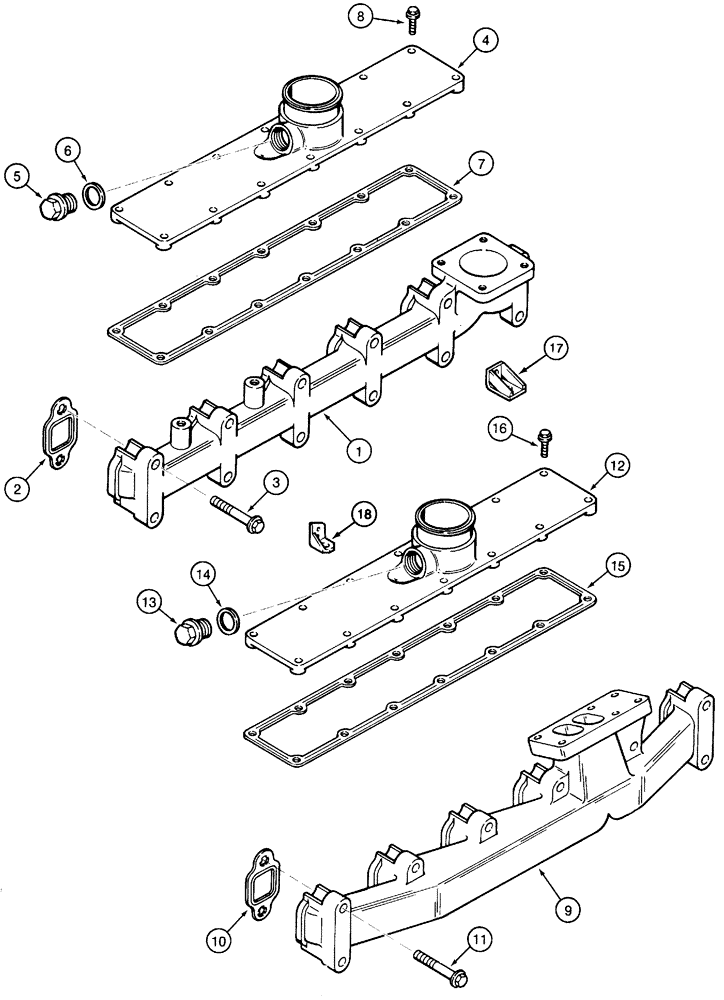

Запчасти Case IH 5230 (2-036) - MANIFOLDS, EXHAUST AND INTAKE, EXHAUST, 6-590 ENGINE, 5130/5230 TRACTOR (02) - ENGINE

1

J901326

MANIFOLD

- exhaust, Naturally Aspirated, 6-590 Engine, 5130/5230 Tractors

1шт.

2

J905443

MANIFOLD GASKET

- exhaust manifold

6шт.

3

J901448

FLANGE BOLT,Hex, M10 x 65mm

BOLT - hex flange, M10 x 65

12шт.

4

J904444

COVER

- manifold, Intake, 6-590 Engine, 5130, 5230 tractors

1шт.

5

J907185

PLUG

- manifold, intake, 5130, 5230 tractors

1шт.

6

J906773

WASHER

- plug sealing, intake, 5130, 5230 tractors

1шт.

7

J914029

GASKET

- mounting, intake, 5130, 5230 tractors

1шт.

8

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Bracket retaining, Intake, 5130, 5230 tractors Hex Flg Hd, M8 x 1.25 x 25

16шт.

9

J931747

MANIFOLD

- exhaust, turbocharged, 6T-590 engine, 5140, 5240 and 5250 tractors

1шт.

10

J905443

MANIFOLD GASKET

- exhaust manifold, 6T-590 engine, 5140, 5240 and 5250 tractors

6шт.

11

J901448

FLANGE BOLT,Hex, M10 x 65mm

BOLT - hex flange, M10 x 65 , Exhaust, 6T-590 engine, 5140, 5240 and 5250 tractors

12шт.

12

J904862

COVER

- intake manifold, 6T-590 engine, 5140, 5240 and 5250 tractors

1шт.

13

J907185

PLUG

- manifold, intake, 6T-590 engine, 5140, 5240 and 5250 tractors

1шт.

14

J906773

WASHER

- plug sealing, intake, 6T-590 engine, 5140, 5240 and 5250 tractors

1шт.

15

J914029

GASKET

- mounting, intake, 6T-590 engine, 5140, 5240 and 5250 tractors

1шт.

16

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Bracket retaining, Intake, 6T-590 engine, 5140, 5240 and 5250 tractors Hex Flg Hd, M8 x 1.25 x 25

16шт.

17

J917777

BRACE

- fuel tube, intake, 6T-590 engine, 5140, 5240 and 5250 tractors

2шт.

18

J917778

BRACE

- fuel tube, intake, 6T-590 engine, 5140, 5240 and 5250 tractors

1шт.
