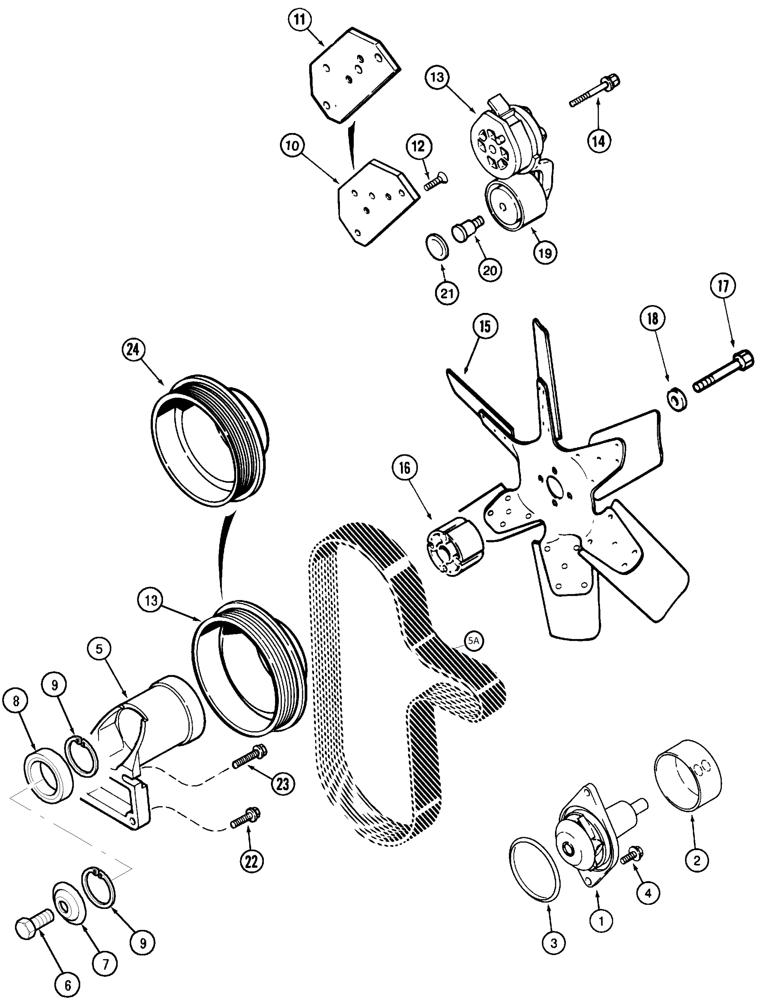

Запчасти Case IH 5230 (2-032) - WATER PUMP SYSTEM, 6-590 ENGINE, 6T-590 ENGINE (02) - ENGINE

J802358

PUMP, WATER

KIT - water pump (With hardened Pulley), Includes: Ref. 1 - 3

1шт.

J286278R

REMAN-WATER PUMP

5130, 5140

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP - water

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY - pump

1шт.

3

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

5

J911205

BRACKET

SUPPORT - fan, Includes: Ref. 5A - 9

1шт.

5a

J911562

V-BELT,27.92mm W x 1460.5mm L, 8 Ribs

5140, 5240 and 5250

1шт.

5a

J911558

V-BELT,27.92mm W x 1498.6mm L, 8 Ribs

5130 and 5230

1шт.

5b

J911924

HUB

- fan (Not Shown)

1шт.

J911924 is just the hub that the fan bolts to. Does not include housing as shown.

1шт.

6

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

- hex, special, 10 - 1.5 x 70 mm, Class 12.9

1шт.

7

J923044

RETAINER

- fan hub

1шт.

8

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

BEARING - ball

1шт.

9

100-21250

SNAP RING,2.50", Int, #250

Ring, Snap, 2.50", Int, #250

2шт.

10

J921641

SUPPORT

BRACKET - belt tensioner, (51/5240 and 5250 only)

1шт.

11

J925195

SUPPORT

BRACKET - belt tensioner (Natural Aspirated 51/5230 engine only)

1шт.

12

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

- flat head cap, torx, special, 8 - 1.25 x 25 mm

1шт.

12

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm

1шт.

13

J918944

BELT TENSIONER

TENSIONER - belt

1шт.

14

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 70 mm, class 10.9

1шт.

15

A184467

FAN

PULLER - fan (Natural Aspirated)

1шт.

15

1998741C2

FAN

PULLER - fan (Turbocharged)

1шт.

16

A184546

SPACER

- fan

1шт.

17

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

- hex, 10 - 1.5 x 100 mm

4шт.

18

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

4шт.

A77817

KIT

KIT - belt tensioner pulley, Includes: Ref. 19 - 21

1шт.

19

NSS

NOT SOLD SEPARAT

PULLEY - tensioner

1шт.

20

NSS

NOT SOLD SEPARAT

BOLT - tensioner

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - tensioner

1шт.

22

845-8030

BOLT,Hvy Hex, M8 x 30mm, Cl 8.8

2шт.

23

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 40 mm, 8.8

2шт.

24

J914459

PULLEY

- fan, 1:1 to 1.35 ratio (Turbocharged 51/5240 and 5250 only)

1шт.

24a

J914462

PULLEY,163mm OD

- fan, 1.1 to 1 ratio (Natural Aspirated 51/5230 only)

1шт.
