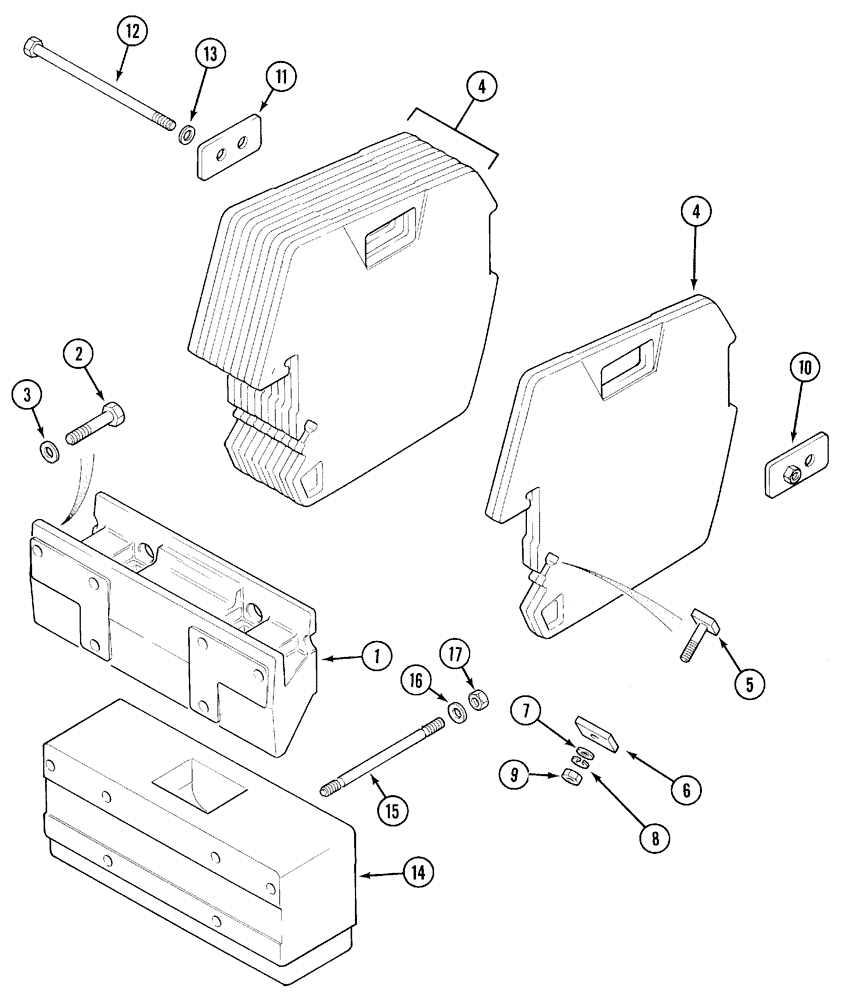

Запчасти Case IH 5230 (9-154) - WEIGHTS, FRONT (09) - CHASSIS/ATTACHMENTS

1

1347525C1

FRAME

- assembly, front weight (Order from whole goods)

1шт.

Ref #1347525C1 - discontinued from wholegoods. Part can be ordered from parts as 1979012C1 as they are interchangeable.

1шт.

2

828-20070

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

- hex, 20 - 2.5 x 70 mm, class 10.9

6шт.

3

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

6шт.

4

1347524C1

WEIGHT

- front, (Order from Wholegoods), 100 pound (45.36 kg)

6шт.

5

A169139

SQUARE BOLT

- square head, special, 1/2 NC x 3-1/4 inch

3шт.

6

1978431C1

CLAMP

-

3шт.

7

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

3шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

10

1979025C1

PLATE ASSY.

PLATE - assembly, clamp

1шт.

11

1979024C1

PLATE

- clamp

1шт.

12

113-2464

BOLT,Hex, 1/2" - 13 x 9-1/2", Gr 5

- hex, 1/2 x 1-1/4 inch

1шт.

13

195-81028

WASHER,0.53" ID x 1.06" OD x 0.19" Thk

- 1/2 inch

1шт.

14

118881A1

SUPPORT

EXTENSION -

1шт.

15

127299A1

STUD

- 310 mm

6шт.

16

896-12020

WASHER,22mm ID x 37mm OD x 4mm Thk

- flat, 22 x 37 x 4 mm, hardened

6шт.

17

829-1320

NUT,M20, Cl 10

- hex, 20 mm - 2.5, class 10

6шт.
