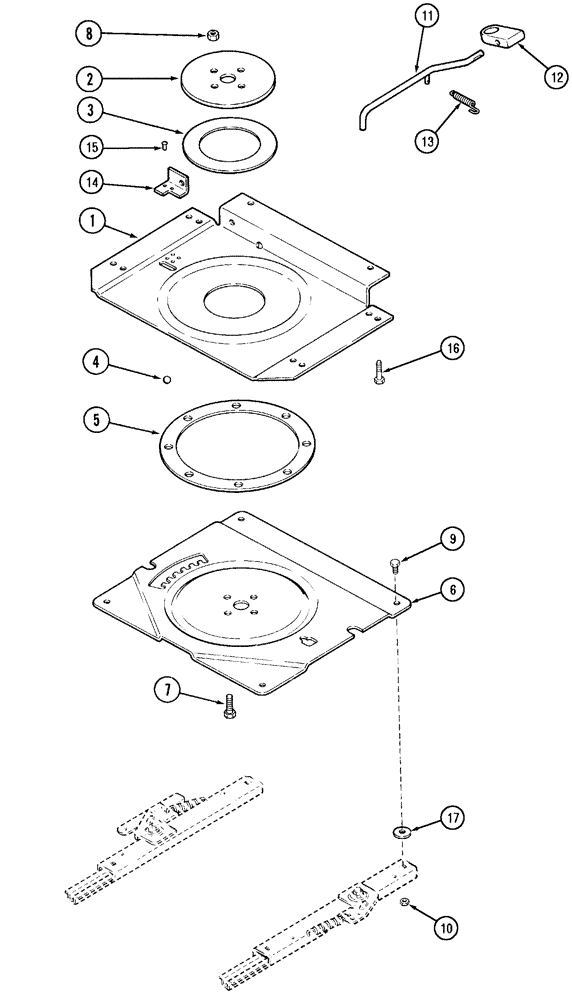

Запчасти Case IH 5230 (9-142) - AIR SUSPENSION SEAT, SWIVEL (09) - CHASSIS/ATTACHMENTS

222395A1

DRIVER SEAT

SEAT - Cloth, Class 4 (Air Suspension), See Figure: 9-148, Includes Ref: 1-17

1шт.

241198A1

SEAT SUPPORT

KIT - seat swivel, Includes Ref: 1-8

1шт.

1

1343857C1

LARGE PLATE

PLATE - swivel

1шт.

2

1343859C1

RETAINER

- swivel

1шт.

3

1343860C1

PLATE

PLATE - swivel bearing

1шт.

4

211-1016

BALL,12.7mm OD, Gr 24

- chrome alloy steel, 1/2 inch, Class 24

8шт.

5

A49555

LARGE PLATE

RETAINER - ball

1шт.

6

1343858C1

LARGE PLATE

PLATE - swivel

1шт.

7

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, Class 5

4шт.

8

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

4шт.

9

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch, Class 5

4шт.

10

230-4225

LOCK NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

4шт.

11

1343862C2

ROD, ADJUSTMENT

ROD - swivel

1шт.

12

NSS

NOT SOLD SEPARAT

KNOB - control, swivel

1шт.

13

N8680

SPRING

-

1шт.

14

1343861C1

SUPPORT

BRACKET - swivel rod

1шт.

15

49-36

RIVET,Truss Hd, 3/16" x 3/8"

- truss head, 3/16 x 3/8 inch

2шт.

16

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch, Class 5

4шт.

17

1974732C1

WASHER

- flat, 25/64 x 1-1/8 x 1/8 inch

4шт.
