Запчасти Case IH 5230 (2-030) - AIR CONDITIONING, COMPRESSOR (02) - ENGINE

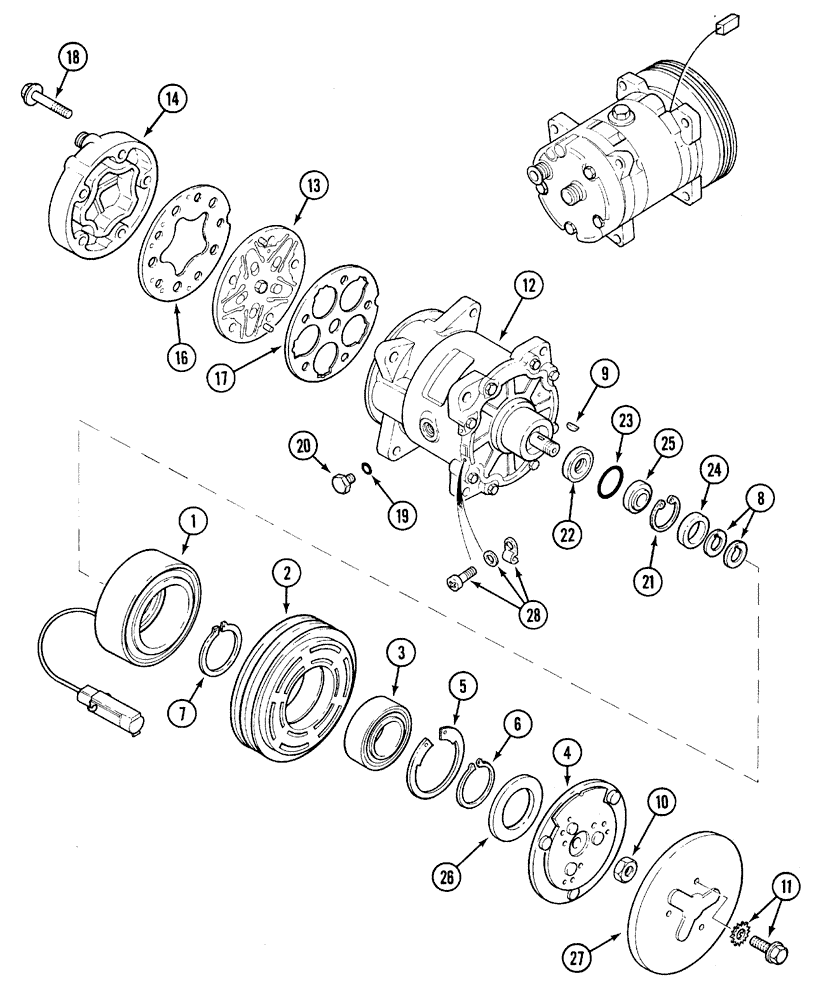

Схема запчастей Case IH 5230 - (2-030) - AIR CONDITIONING, COMPRESSOR (02) - ENGINE
27
2
21
16
5
28
25
17
23
10
7
14
9
9
26
24
11
22
12
13
3
20
8
7
19
18
1

Артикул

Название

Примечание

Количество

1999755C2

COMPRESSOR

COMPRESSOR - air conditioning, HFC134A (JJF1034500 - ) JJF1034500 to

1шт.

86993462R

REMAN-COMPRESSOR

5130, 5140 both ASN JJF1034500 (1/90-), 5230, 5240, 5250 all ASN JJF1034500; Reman For New P/N 1999755C2

1шт.

86993462C

CORE-COMPRESSOR

Return Part Number

1шт.

48017123R

REMAN-A/C COMP KIT

Reman AC Compressor Kit

1шт.

48017123C

REMAN-A/C COMP KIT

Return Part Number

1шт.

1999755C3R

REMAN-A/C COMPRESSOR

Inc.- 8 Mounting Holes, 2 Groove Pulley, For Use w/HFC134A Refrigerant

1шт.

1999755C3C

CORE-COMPRESSOR

Return Part Number

1шт.

135324A1

CLUTCH

CLUTCH ASSEMBLY - compressor

1шт.

139673A1

OIL

OIL - lubrication, HFC134A, 250 cc

1шт.

97204C1

COMPRESSOR

COMPRESSOR - air conditioning, R12 ( - JJF1034499), Includes Ref: 1-28

1шт.

97204C1R

COMPRESSOR

Reman compressor

1шт.

97204C1C

COMPRESSOR

Return Number

1шт.

1977959C1R

REMAN-A/C COMPRESSOR

Reman For New PN 97204C1

1шт.

1977959C1C

CORE-A/C COMPRESSOR

Return Part Number

1шт.

83935C1

CLUTCH

CLUTCH ASSEMBLY - compressor, Includes Ref: 1-11

1шт.

1

NSS

NOT SOLD SEPARAT

COIL - field, 12 volt

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY - drive, two groove

1шт.

3

NSS

NOT SOLD SEPARAT

BEARING - pulley

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE - front

1шт.

5

NSS

NOT SOLD SEPARAT

RING - snap

1шт.

A49673

KIT

KIT - service, clutch ( - JJF1034499)

1шт.

6

NSS

NOT SOLD SEPARAT

RING - snap, pulley

1шт.

7

NSS

NOT SOLD SEPARAT

RING - snap, clutch

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - clutch

1шт.

9

NSS

NOT SOLD SEPARAT

KEY - shaft

1шт.

10

NSS

NOT SOLD SEPARAT

NUT - retainer

1шт.

11

NSS

NOT SOLD SEPARAT

SCREW - retainer

1шт.

12

NSS

NOT SOLD SEPARAT

BLOCK - compressor

1шт.

13

NSS

NOT SOLD SEPARAT

PLATE - valve

1шт.

14

NSS

NOT SOLD SEPARAT

HEAD - service (JJF1034500 - )

1шт.

14

1958959C1

COVER

HEAD - service ( - JJF1034499)

1шт.

A49668

GASKET KIT

KIT - gasket, valve plate ( - JJF1034499), Includes Ref: 16, 17

1шт.

16

NSS

NOT SOLD SEPARAT

GASKET - cylinder head

1шт.

17

NSS

NOT SOLD SEPARAT

GASKET - cylinder

1шт.

18

A49669

SCREW,Cylinder

BOLT - hex flange, special ( - JJF1034499)

5шт.

19

A49666

O-RING

O-RING - ( - JJF1034499)

1шт.

19

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

O-RING - ID 7.65 mm (JJF1034500 - )

1шт.

20

A49667

PLUG

PLUG - hex

1шт.

A49665

SEAL KIT

KIT - service, Compressor seals ( - JJF1034499), Includes Ref: 21-24

1шт.

21

A49664

CIRCLIP

RING - snap ( - JJF1034499)

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING - housing

1шт.

24

NSS

NOT SOLD SEPARAT

RING - felt

1шт.

25

NSS

NOT SOLD SEPARAT

SEAT - seal, shaft

1шт.

26

A49674

BEARING COVER,36 mm ID x 62 mm OD x 1.2, 4.2 mm

COVER - dust ( - JJF1034499)

1шт.

27

1958961C1

COVER

COVER - dust, clutch ( - JJF1034499)

1шт.

28

NSS

NOT SOLD SEPARAT

CLAMP - lead wire

1шт.

Выбрано товаров: 47
